The PolyZen device is a thermally protected, precision Zener diode that helps protect circuits from overvoltage & overcurrent fault conditions.
|
|

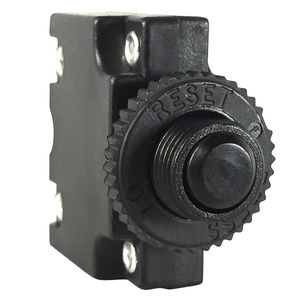

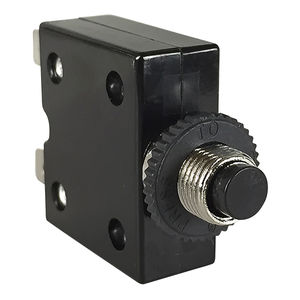

Actuator Style = Push to Reset
Button Color = Black
Termination Type = 6.35 [.250] Straight Quick Connect Tab
Current Rating (Amps.) = 10
Operating Voltage, Max. = 32 VDC, 250 VAC
Number of Poles = 1
Trip Time at 200% = 2.2 to 15 Seconds
Interrupt Capacity = 1,000 A @ 32 VDC or 250 VAC
Mounting Options = Snap-In Panel Mount
Approved Standards = UL Recognized, SEV Approved, VDE Approved, Demko Approved, CSA Certified
|
|
104
Thermal circuit breaker, integral type, single pole
104-PR
Thermal circuit breaker for pcb mounting, single pole
105
Thermal circuit breaker for snap-in mounting, single pole
106
Thermal circuit breaker for threadneck panel mounting, single pole
127
Thermal circuit breaker with manual release button, plug-in or snap in panel mounting
129-L11-H-KF
Thermal automotive circuit breaker with manual release, for base mounting
157/158
Thermal single pole circuit breaker, threadneck panel mounting or integral type
1110
Push-push thermal switch/circuit breaker combination, single pole
1140-E
Single pole thermal circuit breaker, integral type
1140-F
Thermal circuit breaker for snap-in panel mounting, single pole
|
|
Application Flexility

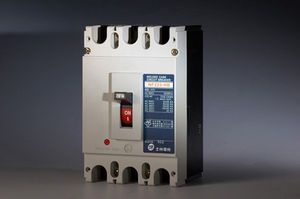

In Switchboards , motor control centers and lighting and in power panelboards. General Electric molded case Circuit breakers are being used to provide reliable circuit protection. Molded case circuit breakers in individual enclosures are also being used in numerous applications
Minimum Downtime
Downtime is reduced and fuse replacement is eliminated with circuit breakers. In case of overload or short circuit, the breaker trips, opening the circuit and protecting the conductors. When normal conditions are restored, the breaker can be closed("ON") again.
Features and Benefits
* Molded Case
* Thermal Magnetic Trip
* Proven Reliability
* Provide Cost effective Solutions
* Multiple types to fit in your application
|
|
|

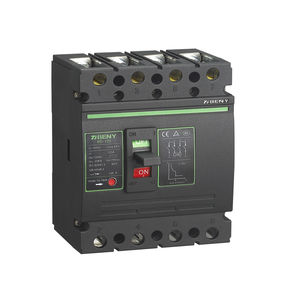

Loadline Y-Frame MCCBs span a range of current ratings from 20A to 1600A in just 6 modular frame sizes. All electronic Y Frame devices comply with IEC 947-2 selectivity utilisation category B, and all frame sizes are complete with a full range of accessories including shunt trips, under voltage releases, auxiliary contacts, pre-trip alarm contacts, earth fault protection, motor operators, terminal covers, rotary handles and plug-in capability. The advanced technologies employed within the range ensure problems caused by harmonics, DC applications, temperature rise and discrimination / selectivity issues can be easily overcome by simple selection of the appropriate device.
|
|
|
|
|
|
201
Thermal-magnetic circuit breaker for rail mounting, low resistance option
2210-S2
Thermal-magnetic circuit breaker, socket or panel mounting, single or multipole
2210-S291
Thermal-magnetic circuit breaker, single pole, with auxiliary contacts
2210-T2
Thermal-magnetic circuit breaker for rail mounting, single or multipole
2215-L
Thermal-magnetic circuit breaker, small width, pcb or threadneck panel mounting
2215-G
Thermal-magnetic circuit breaker, small width, threadneck mounting
2215-F1
Double pole thermal-magnetic circuit breaker, pcb or flange mounting
3120-...-M...
Rocker actuated thermal-magnetic circuit breaker, snap-in mounting
3120-...-M...
Push button operated thermal-magnetic circuit breaker, snap-in mounting
3120-F7..-M...
Rocker-actuated thermal magnetic circuit breaker, snap-in mounting, new design
3200
Plug-in type thermal-magnetic circuit breaker with manual release facility
3300 fast acting
3400 standard delay
Thermal-magnetic circuit breaker with auxiliary contact option, threadneck mounting
3500 standard version
4000 low resistance version
Thermal-magnetic circuit breaker with manual release facility, flange mounting
3600 standard version
3900 low-resistance verson
Thermal-magnetic circuit breaker with auxiliary contacts, socket mounting
|
|
