The temperature at which a Thermal Cutoff changes its state of conductivity to open circuit detection cureet. The tolerance according to IEC60691 is from +0 to -10°C. (with japan Electrical Appliance and material law, on the other hand, they must function in the tolerance range of +- 7°C)
|
|
Thermal Fuses
- Up to 15 A / 250 VAC
- Up to 335ºC
Thermal Fuses are components that will automatically open an electric circuit and switch off an equipment when the admissible response temperature is exceeded.
|
|

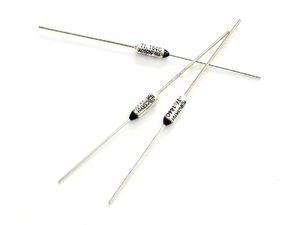

AXIAL THERMAL FUSE
Format: from diameter 2,1x6,5mm to diametro4x11mm
It finishes them: diameter 0,6x38mm or 1,0x19/35mm
Capacity: from 1 to 16A-250Vac
Temperatures: from 73°C to 240°C
Norms: VDE, UR, PSE, CCC

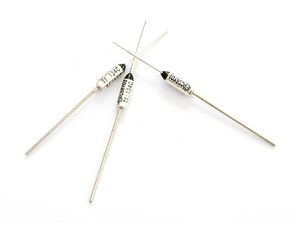

RADIAL THERMAL FUSE
Format: from diameter 2,1x6,5mm to diametro4x11mm
It finishes them: diameter 0,6x60mm
Capacity: from 1 to 5A-250Vac
Temperatures: from 84°C to 150°C
Norms: VDE, UR, PSE, CCC
|
|
|
Thermtrol’s Thermal Cutoffs, also known as One Shot Thermal Fuses, inexpensively open a circuit when a predetermined set temperature is reached. Cutoffs covering a temperature range of 66C to 240C are stocked. Available in both radial or axial lead configurations, Thermal Cutoffs have current ratings from 1/2Amp to 15Amps and are UL, VDE, CSA agency rated for 50VDC, 120VAC, and 250VAC circuits. The large in-stock inventory and infinite customization options permit quick turn-around of drop-in devices. Thermtrol Corporation…Your Partner in Thermal Protection!
|
|
NEC SCHOTT SEFUSE™ SM Type
he NEC SCHOTT SEFUSE™ SM type is a thermal cutoff designed to protect electrical home appliances and industrial electrical equipment from catching fire. It contains a fusible alloy inside an insulated case which interrupts the electrical circuit by melting when ambient temperatures reaches abnormal levels.
Product Advantages
SM type thermal cutoffs:
- Are stable and operate with precision to ensure maximum safety for the operation of electrical equipment
- Can be mounted directly where temperature detection is required without insulation
- Have fast thermal response due to their shape and small size
- Have a resin-seal which ensures strong reliability and accuracy
Applications
The SM type is used in many different electrical products, such as in power supplies, motors, battery packs and automobiles.
|
|
|
|
