Combination Autoranging multimeter with IR Thermometer
* Non-contact InfraRed thermometer measures surface temperature of objects unsafe to contact or difficult to reach
* InfraRed features 8:1 distance to target ratio with 0.95 fixed emissivity
* Input fuse protection and mis-connection warnings with audible and visible signals
* Auto power off, Data Hold
|
|
|
The Modline 4 Infrared Thermometer offers six different spectral regions for use on a wide variety of applications. Modline 4 has a built-in two wire transmitter to provide a 4-20 mAdc output that is linear with temperature. Measure temperatures from 0°F (0°C) to 2500°F (1300°C).
|
|
|
|
|
|
The Modline 3 Microcomputer-Based Infrared Thermometer is an sophisticated and innovative infrared thermometer system with more of the features you want as standard. Choose from eleven different thermometers including both high and low temperature ratio (two color) versions. Both high performance single lens reflex and fiber optic sensors are available.

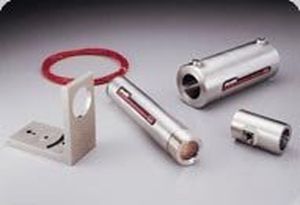

The Mirage Infrared thermometer system adds flexibility and low cost to its reliable state-of-the-art signal processing unit with a choice of five high-performance temperature sensors including both a high temperature and low temperature ratio thermometer. Measure temperatures from 150°F (80°C) to 6500°F (3500°C).
The InfraRail Signal Conditioner/Two Wire Transmitter infrared thermometer system offers an economical, versatile and technological solution to many temperature measurement requirements. Its combination signal conditioner and two wire temperature transmitter is DIN-rail mountable, making it easy to integrate temperature measurement with other devices on your process. When configuring the system, you can select from three distinctly different NEMA 4, IP 66 rated sensors. Choose from the Type "E" miniature fixed focus, the Type "S" through the lens aiming/focusing sensor, or the Type "F" miniature fiber optics sensors.
The Infrarail GT offers the powerful features and affordable price of the standard InfraRail, in an infrared thermometer designed for the glass industry. Patented focusable reimaging lens and fiber optic cable offer the opportunity to sight on targets where a standard spot pyrometer is difficult to install and sight, such as glass furnace applications. Fiber optic cable and lens can operate at high ambient temperatures without the need for water cooling.
|
|
|
IRCON Javelin is one of the best little infrared thermometers in noncontact temperature sensing. Don- let the slim design fool you, the Javelin is as rugged as any IRCON thermometer. The sleek Javelin - built of stainless steel - is only 7.8 in. (198 mm) in length and 1.5 in. (38 mm) in diameter, and is easily installed on any machine.
|
|
|

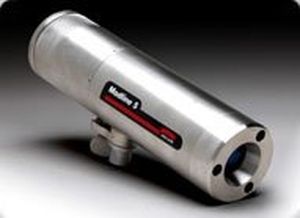

The Modline 5 is the latest Ircon infrared thermometer to bear the Modline name. The Modline 5 is a compact infrared thermometer designed for high temperature application (5432F/3000C). With features such as a back panel keypad, System Health Check, and Dirty Window detection the Modline 5 is the most innovative infrared thermometer on the market.
|
|
Series CellaTemp PM
Extremely small and compact miniature micro-processed pyrometer in metal housing for measuring ranges between 0...1200 °C.
Optimal for narrow conditions of installation.
|
|
General purpose high performance IR thermometer with programmable electronics and double laser aiming for accurate measurements.
Measuring range: -40 bis 975°C
Wavelength range: 8-14 µm
Spot size: up from 0,9 mm
Optics: 75:1
Response time: 120 ms (9ms with CT laser F fast version)
Analog outputs: 0/4-20mA, 0-5V, 0-10V, thermocouple
Digital interface optional: USB, RS232, RS485, CAN, Profibus DP, Ethernet
Sensing head M48x1,5 , 100 mm length
|
|
- Temperature range from minus 40 °C to 600 °C (minus 40°F to 1112°F)
- Highest in its class ambient operating temperature up to 180°C/356°F
- Highest optical resolution in its class
- Halogen and Silicon Free - Environmentally-friendly Cable
- Miniature sensor that fits anywhere
The Raytek MI is a two-piece infrared temperature measurement system with a miniature sensing head and separate electronics. The miniature sensing head is small enough to be installed just about anywhere, but performs as well as much larger and more expensive systems. The MI measures target temperatures ranging from -40 to 600°C (-40 to 1112°F). Easily adjust the MI signal processing electronics, which include Emissivity, Peak Hold, Valley Hold, and Averaging functions, on the 5-digit LCD user interface.
|
|
The OMEGA OS555A Series industrial high performance thermometer/transmitters offer a high temperature range of 538 to 2482ºC (1000 to 4500ºF), 110 to 1 optical field of view, any voltage or current analog output to feed directly to panel meters, recorders, temperature/ process controllers, data loggers, and data acquisition systems. It also offers adjustable Emissivity, high and low alarm outputs, PC serial interface, temperature data logging in real-time, and fast response time of 100 msec.
These ruggedly designed units are ideal for high temperature measurement and see through glass window applications.
|
|
|
LAND offer a comprehensive range of fixed installation radiation thermometers and thermometer systems for continuous on-line temperature measurement and control within the range 0 to 2600°C/32 to 4700°F.
|
|
The first non-contact thermometer of its class incorporating a digital display, setting panel, and output function.
(1)measure temperature with any contact-type thermometer
(2)input the temperature value of (1)
(3)the unit automatically calculates the emissivity ratio and stores result in memory.
|
|
Smart solutions for non-contact temperature measurement from -45 C to 2500 C in metal industry.
Ratio Pyrometer
Multi Wavelength Pyrometer
Fibre Optics
|
|
|
The Mirage Fiber Optic infrared thermometeroffers the powerful features and affordable price of the Mirage, along with the flexibility and capabilities of a fiber optic, optical system. The compact, stainless steel, focusable re-imaging lens fits in tight places and withstands ambients to 400°F (200°C) without cooling.
|
|
Features
Wide Range Temperature Range
Wide range measurement of 400 to 1200 can be possible for variety of applications.
Scaling Function
Temperature range of the Analog Output (4 to 20mA) is variable to connect to the recorder easily.
|
|
The IR-H series is a small and lightweight handheld Infrared thermometer with a clear viewfinder.
The thru-the-lens optical system enables it to measure small targets from a long distance.
The measured value can be read on the internal digital display in the viewfinder. Three models are available; a high functional type IR-HQH having combined functions of a 2 color type single color wide range type, a single color medium temperature type IR-HI and a single color high temperature type IR-HS.
Data logging software is available for easy data processing by a personal computer.
|
|
|
|
|
|
The ultra compact Pyropen has been specifically designed to fit into your pocket, just like a pen, so that you can carry it with you anywhere you go.
You simply aim, press the SCAN button and read the temperature immediately. No fuss. No need to focus and no special training.
The non-contact nature of the measurement means that you can take the temperature of moving, rotating, inaccessible or hazardous objects. This makes the Pyropen particularly useful for test, inspection and maintenance applications in industries such as food & beverage, automotive, plastics & rubber, textiles, paper & packaging, chemicals & pharmaceuticals, HVAC, electrical, asphalting, plus many others.
The Pyropen L has all the features of the Pyropen E, plus laser sighting for small or distant targets and adjustable emmissivity.
The Pyropen U has all the features of the Pyropen L, plus a built-in memory for logging up to 100 temperatures and the ability to perform PC based data acquisition via USB. It is supplied complete with USB interface cable and CalexSoft software disk.
|
|
The Fluke 570 non-contact thermometers are ideal professional diagnostic tools for maintenance professionals requiring the most accurate temperature readings at all distances. The Fluke 570 series infrared (IR) measures surface temperatures, helping to quickly locate lubrication problems, overloads, short-circuits or misaligned and overheated equipment, reducing work and follow-up time, and improving performance.
From close-up electrical connections, to distant room balancing checks, the Fluke 570 series can take IR temperature measurements with ease. Predictive maintenance professionals requiring analysis and documentation use the 574 or 576 models, with 100-point data logging and digital photographs (576-only) with the included software for graphing and analysis for follow-up reporting and documentation.
|
|
|

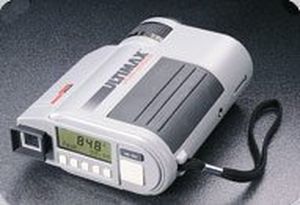

Ultimax is Ircon's series of handheld, portable infrared thermometers. With the ability to handle temperatures up to 3000°C (5430°F) the Ultimax is the perfect spot pyrometer for maintenance applications and verification of process temperatures. For users that need temperature reporting capabilities the Ultimax Infrared thermometer can be used in datalogging mode to store up to 1000 temperature measurements. Ultimax data analysis software can then be used to graph, display, or export this temperature information.
|
|
KIRAY 50/100/200/300 portable infrared thermometers proposed by Kimo are key tools to diagnose, inspect and check any temperature, with the advantage of using ‘’no-contact’’ technology. This allow to measure safely and without any risk of contamination surface temperature of hot objects, dangerous or difficult to access.
Each range includes optical features (single or dual laser sighting…), functions (Min., Max., average temperatures, alarms…) and temperature ranges (from -50 °C to +1850 °C) suitable for general use, food industry or industrial applications.
Kiray instruments are easy to handle, easy to use and their adjustable emissivity allows a very good precision.
Many options are avalaible including a wide choice of measuring probes (contact, penetration, ambient probes…) and a memory which can go up to 100 measurements..
|
|
thermoMETER MS series: Intelligent universal infrared thermometer
The optris MS series combines state-of-the-art technology with an attractive price.
A wide temperature range of -32 to 760 °C, laser aiming and an optical resolution of 20:1 allow technicians to carry out accurate non-contact surface measurements for electrical and mechanical maintenance, HVAC checks, automotive testing and other applications, in fast anywhere that temperature is a factor.
optris MiniSightPlus: 'OFFSET' and 'HOLD' make measurements smart. Object emissivities can be adjusted even after the measurement is taken.
|
|
temperature ranges from -35°C to 2000°C
New: laser crosshairs and option to switch into close focus
mode for detection of smallest objects with the size of 1 mm
at a distance of 62 mm
green laser sighting for eightfold improved visibility of glowing
or shining measurement objects or in very bright surroundings
(optional, for IRtec series only)
Spectral response: 0,9µm/1,6µm - for the measurement of temperatures of metals or semiconductor materials
Spectral response: 8 - 14µm for the common measurement of all temperatures
ranging from -30°C to 900°C
Signal processing, emissivity, peak hold, valley hold, average value adjustable
Input for thermocouple available
On Board memory to store up to 500 data points, digital interface USB and graphic and display software
|
|
Portable noncontact thermometers have become indispensable tools for many predictive maintenance and industrial troubleshooting applications. These fast and reliable tools are famous for their rugged, ergonomic designs and affordable prices.
3i Series Dedicated infrared thermometers for specialty applications.
Fluke 60 Series The professional's diagnostic tool.
(formerly ST Series)
Fluke 570 Series The precision thermometer for vital analysis.
(formerly MX Series)
|
|
|
|
|
|
When it comes to temperature measurement technique and provided that a combination of simplest control and high measurement accuracy is required, then infrared-thermometers will always be the first choice.
This choice becomes a must, if one of the following requirements are given:
- Deterioration-free measurement of moving components
- Measurement of dangerous matter (e.g. electrically life parts, chemically aggressive materials etc.)
Measurement in inaccessible locations
Feedback-free measurement of small low-mass components
without infrared-thermometers is almost unthinkable.
In this case, nothing is easier as operation according to the motto:
targeting – measuring – reading the measurement value.
In any area of non contact temperature measurement, SIKA infrared-thermometers are reliable partners due to the following features: fully developed laser sight technology, very good optical characteristics, and modern technology with adjustable emissivity, data memory, and numerous additional functions.
|
|
|
|
|
|
SKF Dual Laser Infrared Thermometer TMTL 2400K
The SKF Dual Laser Infrared Thermometer TMTL 2400K can be used as both a contact and non-contact thermometer. The object’s temperature can be measured using the infrared detector or a probe.
Lightweight and compact, the TMTL 2400K can safely measure the temperature of hot, hazardous or hard-to-reach objects without contaminating or damaging the object’s surface. The optics of the TMTL 2400K sense emitted, reflected and transmitted energy, which is collected and focused onto a detector. The TMTL 2400K’s electronics translate the collected information into a temperature reading, which is displayed in °C or °F. The built-in dual-laser feature and spot ratio of 50:1 helps enable exact pinpointing of the temperatue measurement area.
The TMTL 2400K enables contact temperature measurement and allows the emissivity to be user selected. This allows the contact temperature measurement to be easily compared with the infrared measurement in order to find and adjust the thermometer emissivity for accurate infrared measurement of the same measured object.
-Can be used as infrared thermometer and/or contact thermometer with supplied K type temperature probe
-Non-contact measurement makes it possible to safely measure the temperature of hot, hazardous or hard-to-reach applications
-Wide measurement range using infrared sensor from -60 to 1000 ºC (-76 to 1832 ºF), with probe -64 to 1400 ºC (-83 to 1999 ºF)
-Distance/spot ratio of 50:1
-User selectable variable emissivity between 0,1 and 1,0
-White LED Flashlight to help visualize the application
-Large backlit display
|
|
testo 845, infrared temperature measuring instrument with cross laser marking and switchable optics for far-field and close focus measurement, incl. PC software with USB data transfer cable, aluminium case, battery and calibration protocol
For the first time, surface temperatures with smallest diameters can be measured accurately at short and long distances. The switchable optics for far-field and close focus measurement make this possible. Measurements in the far-field are made with an optical resolution of 75:1. Surface temperatures can thus be measured accurately even at greater distances from the object to be measured. At a distance of 1.2 metres from the object, the measurement point diameter is only 16 mm. A cross laser marks the measurement point exactly. For measurements at a small distance from the object to be measured, the close focus optics provide a measurement point diameter of only 1 mm at a distance of 70 mm! Two laser points mark the measurement point.
|
|
Infrared Thermometer :
Features Model: DIT-513
1.CE-Mark approval
2.Portability and simplicity one-hand operation
3.Display Back-Light feature
4.Auto DATA HOLD function after releasing
MEASURE Button
5. XC / XF user-selective
6. Fixed emissivity (e) 0.95 for most substances
7. Auto power off function
8. Use thermopile detection sensor (6-14 micro m)
9. Attached PVC cover
Infrared thermometer Model: DIT-515 :
Features:
1. CE-Mark approval
2. Portability and simplicity one-hand operation
3. Display Back-Light feature
4. Auto DATA HOLD function after releasing
MEASURE Button
5. XC/ XF user-selective
6. With MAX, MIN record function
7. With SET, Hi, Lo limits beeper function
8. Adjustable emissivity (e) 0.1 to 1.00
9. Auto power off function
10.Use thermopile detection sensor (6-14 micro m)
11.Attached PVC cover
|
|
Description:
The model N630 is an excellent non-contact infrared thermometer for many applications. It can accurately make temperature measurements from short distances and up to as much as many feet. It is easy to use and the fact that it has adjustable emissivity settings means it can give very accurate measurements from most any heat source.
Features:
* Non-contact temperature measurements
* Adjustable emissivity from 0.1 to 1.00
* On/Off switchable laser sighting
* High 12:1 DS ratio
* Selectable Fahrenheit or Celsius display
* Temperature range: -25 to 999 degrees F (-32 to 535 degrees C)
Applications:
* HVAC
* Electrical troubleshooting
* Automotive repair & maintenance
* Science experiments
* Measure terminals on circuits
* Air conditioning testing and maintenance
* Perform HVAC energy audits
* Manufacturing processes of semiconductor technologies
* Food safety and processing
* Surface temperature measurements
|
|
Compact thermometer with wide temperature range
* Measures temperature from -58 to 1000°F with 0.1° resolution up to 199.9°
* Built-in laser pointer identifies target area
* Backlighting illuminates display for taking
measurements at night or in areas with low
background light levels
* Overrange indicator
* Automatic Data Hold when trigger released
|
|
IT-540 Series handy Non-Contact Infrared Thermometers
Product Overview
The hand-held IT-540 is a non-contact, thermal-radiation-type thermometer that uses a point marker to clearly designate the measurement location.
In addition to being very portable, the IT-540 is easy to use, and is equipped with a range of advanced features that provide a high level of functionality.
It is ideal for remote temperature measurement in dangerous applications such as monitoring abnormal heat generation in high-temperature voltage transformer equipment, and for quick, accurate and hygienic monitoring of the storage temperature of foodstuffs.
The twin-beam marker provides clear target designation, and the operator is immediately notified of temperature abnormalities by an alarm and flashing of the marker.
|
|
|
|
|
|
Free digital video camera DV-CAM while supplies last
- Built-In Patented Laser Sighting is Switchable Between Laser Dot or Circle Patterns
- The Laser Can be Flashing or Continuous
- New Series Includes Models with High-Performance, General Purpose, Close Focus and High Resolution
- Models Available with Temperature Ranges from -23 to 871°C (-10 to 1600°F)
- Emissivity Adjustable from 1.00 to 0.10 in 0.01 Steps
- Distance Measuring Option- Either Field Mountable or Built-In [0.9 and 9 m (3 and 30') Range]
- Digital Video Camera Option Available
- Backlit LCD Display
- Dual Digital Display Indicates Current with Min, Max, Average, or Difference Temperatures
- °C/°F Selectable
- 1 mV/Degree Analog Output Standard
- RS-232 Output Models Include FREE Data Logging Software
- Audible and Visible Alarms
- Integral Tripod Mount
- Type K Thermocouple Input Available
- Temperature Data Storage & Logging (Up to 800 Data Points) Available
- Electronic Trigger Lock
- Last Temperature Recall
- All Models Include Built-In Laser Sighting, Display and Lens Protective Bumpers, Wrist Strap, Soft Carrying Case, 4 Long Life Lithium Batteries, and User's Manual with Emissivity Reference Chart
|
|
|
|
