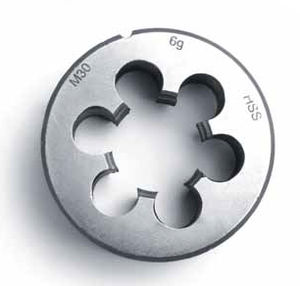

The HSS + HSSE-Co 5 Series of Threading Die, manufactured by RUKO GmbH, is designed with heavy-duty high-speed steel with a strength of 800 N/mm². Its circular die is composed of 5 % ...
This die is ideal for use in applications that require an external threading. Made of chromium steel, thus making it suitable for use in manual threading operations. A solid die ...
Thread forming die is the thread tool for the standard fastener industry when processing bolts and screws. Cold forming has the advantages of high production efficiency, low processing cost, high thread precision and ...
These button dies and die nuts have a 60° angle of thread. The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and ...
The 440 Round Dies from BETA complies with the DIN 223 UNI EN 22568 standards, making it universally applicable for a wide variety of operations specific to the user's needs. It is designed with a metric thread that has ...
Version: Closed, pre-slit form. ≥ M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1¾ turns lead chamfer.
... head threader, Mini Phenix and Phenix III, according to capacity.TIP: Virax cutting oil must be used for lubrication in all threading operations.
... offers a complete range of precision dies. These tools are tried and tested for very long lifetimes at high cutting speeds. DC dies significantly reduce machining costs, which makes them outstanding from an economic point of view.
Description Die nuts for ISO metric threads Standard Guhring standard Coolant without Form B Tolerance zone 6g on shank Straight from-to M1,1 - M8 Materials n/a
... machine and hand using. The spiral point provides better chip removal in feed direction. Suitable for all types of steel. ( If dies use for brass, it should be specified special cutting geometry during ordering. )
... the round die into the round die holder and take care that the groove of the round die is fixed with the middle screw of the round die holder. Fix all screws with attached ...
