Pointing the way in thread production As a strong brand of the KOMET GROUP® , JEL® and its innovations of stand for modern thread production.
From conventional thread production to the technologically sophisticated thread milling tool, we offer economical systems either as standard tools or specific application solutions.
Solutions for economy and precision:
Introduction of the drill thread milling cutter in Europe
Roll form taps with brazed carbide strips for maximum tool life
Modular PCD tools for several operations with the same tool for the shortest possible machining time
Thread milling in steels with 45-60 HRC from M1
|
|
Threading solutions from Walter Prototyp guarantee the highest process reliability.
Our expertise in substrates and coatings optimize machine output, thanks to higher cutting speeds and fewer required tool changes. Our tools can be used in a broad spectrum of materials and applications, even in new and exotic materials
|
|
|
|
|
|
Sandvik Coromant is introducing a new family of rigid threading tools for the oil, gas and mechanical engineering sectors from Sandvik Coromant. These new tools provide a high level of stability for threading applications in demanding industries, where precision is paramount. A guide rail locks the insert in position to give stability for precise, repeatable thread cutting and assured indexing of the insert.
Sandvik Coromant has a new family of rigid high precision threading tools for the oil, gas and mechanical engineering industries, CoroThread 266. First to be launched is CoroThread 266 for 22mm and 27mm insert size.
Threading stability is achieved with a new design of iLock insert locking interface. This keeps the insert rigid, maintains the correct threading profile and reduces out-of-specification product rejection. The insert has a slot for each of its three indexible cutting edges. One slot is located on a raised guide rail on the new interface of the shim. This guide rail locks the insert in its correct position in the pocket, giving repeatable accuracy with each threading pass. Correct fitting and precise indexing can be done by touch alone, because the CoroThread 266 insert sits only on the guide rail, each time, every time and is screwed in place. It is impossible to misfit the insert with the new rigid rail technology, or for the insert to move once fixed.
|
|
Catalogue Turning and threading
• External machining
• Internal machining
• Indexable inserts
• Thread turning
Perfection: ARNO tools in use!
|
|
ISCARTHREAD
Threading Tools, Threading Inserts, Thread Inserts
The ISCAR threading line includes a large variety of thread standards on laydown triangular inserts. The M-type inserts with chipformers provide high profile accuracy and optimal chip flow. Regular threading insert types are ground and available in a variety of high-quality, high-performance cutting grades, uncoated and coated, including PVD and CVD coatings. For customer convenience, standards for threads and pitch are clearly marked on each insert.
|
|
M -TYPE INSERTS
High Profile Accuracy
Every insert has an indexable accuracy of 0.015mm guaranteed.
Cost Advantage
TaeguTec uses advanced technology to ensure economical production and a high level of accuracy. This guarantees the customer improved performance and product consistency
Excellent Chip Control
A unique chipformer delivers outstanding performance.
Clear and Easy Identification
The designation mark on the insert clearly defines application, thread standard and pitch.
|
|
Adjustable re-treading tool for external male thread forms. No measuring of thread required, as the hardened stell blades will adjust automatically to any thread dia and pitch.
Usable for all kinds of threads, Inch and metric, right hand or left, fine and course.
|
|
An adustable re-treading tools for internal female threads. Usable for inch and metric threads, fine or course. Available from 8mm-54mm.
The blade is guided by the undamaged threads to regroove the damaged threads
Information available on request
|
|
|
|
|
|
Sandvik Coromant is introducing a new family of rigid threading tools for the oil, gas and mechanical engineering sectors from Sandvik Coromant. These new tools provide a high level of stability for threading applications in demanding industries, where precision is paramount. A guide rail locks the insert in position to give stability for precise, repeatable thread cutting and assured indexing of the insert.
Sandvik Coromant has a new family of rigid high precision threading tools for the oil, gas and mechanical engineering industries, CoroThread 266. First to be launched is CoroThread 266 for 22mm and 27mm insert size.
Threading stability is achieved with a new design of iLock insert locking interface. This keeps the insert rigid, maintains the correct threading profile and reduces out-of-specification product rejection. The insert has a slot for each of its three indexible cutting edges. One slot is located on a raised guide rail on the new interface of the shim. This guide rail locks the insert in its correct position in the pocket, giving repeatable accuracy with each threading pass. Correct fitting and precise indexing can be done by touch alone, because the CoroThread 266 insert sits only on the guide rail, each time, every time and is screwed in place. It is impossible to misfit the insert with the new rigid rail technology, or for the insert to move once fixed.
|
|
The second is for the Type-B inserts, a combination of ground profile and sintered chip-breaker threading inserts. Unlike most other manufacturers' inserts, this combination ensures consistent high quality thread, precise shape and dimensions while ensuring the chip flow. Two different unique styles of chip-breaker were designed to suit the different specific requirements of Internal threads and External threads.
Type-B inserts are offered in one grade, BMA, for general use.

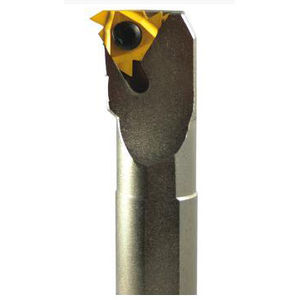

Carmex offers a wide range of threading tool holders for external or internal threads . Also available are carbide shank toolholders.
|
|
Octicut® Threading Tools
Maximize productivity and lower your cost per cut with Octicut® quality and variety.
- Octicut® Threading Inserts
- Miniature Series External Toolholders
- Adjustable Helix Threading System
- Internal Bars
- S-Loc™ Toolholders & Inserts
|
|
|
Advanced material technology, plus the proven performance of Valenite chipbreakers makes the ValTHREAD insert line the most productive laydown, threading system. The application-matched PVD coated grades cover a full range of threading operations on most workpiece materials including small-diameter ID threading. Engineered to work together, the chipbreakers enhance the performance of Valenite grades to offer a complete threading system.
|
|
Vargus - #1 in Thread Turning
Vardex has earned its reputation as the #1 indexable Thread Turning system worldwide.
Vargus, a pioneer in its field, developed the Vardex indexable laydown thread turning insert technology nearly 40 years ago. The Vargus patented designs continue to be the industry standard With over 6000 different tools, Vargus offers the largest range of Thread Turning solutions to the machining specialist. Some even call the Vardex catalog "The Bible of Threading"!
|
|
|
These sets consist of an assortment of Hexagon Rethreading Dies in American National form of thread. These dies are neatly packed in a wooden case.
|
|
These sets consist of an assortment of Hexagon Rethreading Dies in American National form of thread.
These dies are neatly packed in a wooden case.
|
|
|
HTT offers a range of top quality solid carbide micrograin taps for tapping the most difficult materials. Size range from M4-M12
|
|
An extremely versatile range of Roll Form - or Forming - Taps, each of which can be used for producing both through and blind holes. Designed to accurately and cost effectively produce an internal thread by deformation of the component material, this process produces no chips, resulting in a stronger thread that is capable of withstanding increased load-bearing capabilities. They can also be operated at higher speeds than conventional thread cutting taps, resulting in increased productivity:
- HSS Roll Form Taps
- HSCo Roll Form Taps
- Solid Carbide Roll Form Taps
|
|
|
|
|
|
Sutton Tools recognises the relentless challenge facing metal working industries to produce faster and more efficiently than ever before and is pleased to provide the high performance market with the most cost efficient cutting solution with the release of it’s High Performance Range of Taps.
The comprehensive range of high performance taps now includes Cobalt and Vanadium based grades of high speed steel (HSS-Co, HSSE-V), as well as the latest developments in Powdered Metallurgy high speed steel (PM-HSS) and Carbide ranges, manufactured to DIN standards, which are complemented by TiN, TiCNite, AITiN (multi-layer) and CrN ceramic surface coatings and state of the art Vacuum Heat Treatment.
There are so many variables that affect the final outcome, and hence overall cost effectiveness of a job, that selecting the right tap can be somewhat of a challenge
However the Sutton High Performance Range has simplified this task, by colour coding the tools to the material group in which it is intended for, allowing you to quickly select the most suitable tool for your job.
For more information on the High Performance Taps, visit our website on http://suttontools/IndustrialHSGTTaps
|
|
A comprehensive programme of HSS and HSCo hand and machine taps available in a wide variety of thread forms, with a range of surface treatments
- Hand Tap
- Machine Tap
- Machine Tap, Interrupted Threads
- Machine Tap, Extra Long
- Machine Tap, Left Hand Spiral
- Machine Tap, Back Tapered
- Machine Taps, Oil Grooves
- Combi Taps
- Tap Wrenches
|
|
Sutton Tools high speed ground taps and surface coatings are manufactured in Australia meeting international standards.
Developed with unique geometrics and available in a variety of surface coatings, the all-new Application Tap range ensures you have the right tap for your specific material application.
|
|
A comprehensive programme of high performance HSCo and Solid Carbide material-specific and multi-application machine taps. All are available in a wide variety of thread forms with a range of surface treatments
- Machine Taps for low to medium strength steel
- Machine Taps for Alloy Steel
- Machine Taps for Stainless Steel
- Machine Taps for Aluminium
- Machine Taps for Cast Iron
- Machine Taps for High Strength Steel and Titanium
- Multi-Application Machine Tap
- Solid Carbide Machine Taps
- Solid Carbide Thread Milling Cutters
- Solid Carbide Orbital Thread Former
|
|
Brubaker Tool has been manufacturing taps for over 125 years. Our company can trace its roots to specialized taps for the steam locomotive industry. This foundation in railroad taps led to the production of quality general purpose and special order taps. Over the past several years Brubaker has gained strength and expanded its presence in high performance, special application taps. Based upon these successes we are proud to introduce our Gold High Performance Tap Series. Our Gold Series will enable us to provide our valued customers with high performance taps as a catalog offering with off- the- shelf availability.
Our Brubaker Gold, High Performance Taps are yet another indication of our commitment to quality, growth and the support of American manufacturing. Whether your manufacturing needs call for a standard tap, high performance tap, special geometry, special or standard end mill, we can meet all of your round tool cutting needs.
|
|
Fastcut Tool was founded in 1957 as a manufacturer of quality end mills. Following its acquisition by Talbot Holdings, Fastcut began to offer general purpose and special order taps in 1991. Over the past several years Fastcut has gained strength and expanded its presence in high performance, special order taps. Based upon these successes we are
proud to introduce our Gold High Performance Tap Series. Our Gold Series will enable us to provide our valued customers with high performance taps as a catalog offering with off- the- shelf availability.
Our Fastcut Gold, High Performance Taps are yet another indication of our commitment to quality, growth and the support of American manufacturing.
Whether your manufacturing needs call for a standard tap, high performance tap, special geometry, special or standard end mill, we can meet all of your round tool cutting needs.
|
|
These general purpose taps can be used by hand or under power, in through or blind holes and are suitable for tapping most materials. The chips are retained in the flutes during use.
Three-fluted taps have the greatest chip holding capacity and should be used, in the size range where available, for tapping holes deeper than 1-1/2 diameters. A variety of surface treatments are available to improve performance.
|
|
These general purpose taps can be used by hand or under power, in through or blind holes and are suitable for tapping most materials. The chips are retained in the flutes during use.
Three-fluted taps have the greatest chip holding capacity and should be used, in the size range where available, for tapping holes deeper than 1-1/2 diameters. A variety of surface treatments are available to improve performance.
|
|
