| These fixed height "tilt tops" can be mounted on legs, workbenches or directy on the floor. They are ideal for odd shaped or sized containers or odd loads. |
|
Plate 800x800 / 1000x1000
Capacity load 4000 Kg
Tilt 0 - 90°
CN tilting table for milling operations
- Tilting axis
- Cast iron structure
- Mechanical drive through worm screw
- Hydraulic clamping
- Hydrostatic support system |
|
The Key Advantages;
Application
For precise two axis or compound angle settings on precision machines for measuring or fine machining of precision components requiring platen sizes between 200mm and 1200mm diameter.
Construction
All principal castings are manufactured from high grade stabilised cast iron. The tilting movement is a motor powered system employing a ball screw and nut mechanism.
Bearing
Preloaded axial-radial roller bearings are incorporated on each axis, to provide high rigidity, sensitivity and fine positioning in both planes.
Clamping
Distortion-free clamping systems on both axes.
Measuring Systems
High precision Heidenhain angular encoders with DRO or NC systems.
Motors
Various motors available
Construction
All principal castings are manufactured from high grade stabilised cast iron. The tilting movement is a motor powered system employing a ball screw and nut mechanism.
|
|
Application
Additional rotary and tilting axis for your machine. High accuracy and loading capacities make these tables suitable for machining and metrology applications.
Bearing
All sizes are equipped with pre-loaded axial-radial roller bearings, with a high-loading capacity in both horizontal and vertical planes. This ensures sensitivity for the fine adjustment of the table platen.
Clamping
Distortion free passive clamping by preloaded spring elements with hydraulic release.
Measuring systems
Heidenhain ROD 250/700/800/905, RON or Rotary Inductosyn are typical.
Motors
DC and AC motors.
The modular construction provides the widest possible freedom for application variations. |
|
Peiseler two-axis table combinations are available as NC units with backlash adjustable split worm drive, direct drive, or indexing units positioning over Hirth gears. The trunnion axis (A-axis) turns (tilts) the table axis (C-axis). The high quality Meehanite-casting, distortion free axis clamping, manifolds with hardened steel shaft running in bronze bushings, as well as the appropriate selection from several types of high grade bearings, assures the highest possible precision. Diverse gear ratios or gear reducers allow for the optimal adaptation to any load condition. The use of very accurate measuring systems in combination with a high mechanical accuracy, results in only a few seconds of arc positioning deviation. The robust design enables simultaneous five axis machining even under heavy machining load. Special face plates, pallet-receivers, collets, and large through holes are available or can be designed to meet customer requirements.
Face plate diameters from 100 to 1,000 mm.
Adaptive to all drives.
Please request our comprehensive catalog.
|
|
| ... products without technical information |
| |
Series HTT :
Tilt Table
Capacities: 1,000 to 6,000 lb.
Platform Sizes :24" x 36" to 72" x 72"
Tilt Angle : 45° |
|

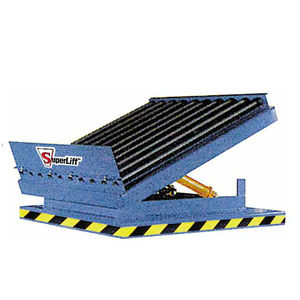

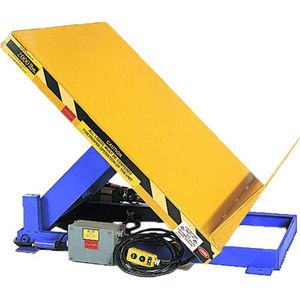

Lift Products MAX-Tilt & MAX-LIFT & TILT tables are designed for those applications where tilting or lift and tilting the load provides for improved access to the product. Table available with 45, 60 or 90 degree tilt.
Both series are electric hydraulic with the 45 degree models powered up and gravity down while the 60 and 90 degree models are powered both up and down with double acting cylinders. With capacities of 2,000 - 6,000 lbs., the MAX-series table can handle most applications.
FEATURES:
* 3/4 or 1 1/2 hp motor. 115/230 volt single phases or 230/460 3 phase voltage. Motor is internally mounted on most models and externally mounted on table sizes with 24" wide base.
* Push button magnetic back control box standard with 6' cord
* 10' power cord standard
* Hydraulic gear pump with check valve, solenoid valve, filter and velocity fuse standard.
* Smooth steel deck with 4" high lip on hinge end.
* High quality chrome plated cylinder.
* Control box includes magnetic starter transformer, thermal overload and fuses
* Designed for surface mount or lift table mounting.
* Powered up on 45, 60 and 90 degree tilt. Gravity down on 45 degree and powered down on 60 and 90 degree tilt.
* Tilt limit switch
* Color yellow top with blue frame.
OPTIONS:
* Foot control switch.
* Tapered toe guards for pit mount.
* Lowering beeper.
* Remote power unit.
* Accordion bellows safety skirting.
* Special color.
* Adjustable tilt limit switch.
* Raised base. |
|
Extraflat tables for transpaletas, models in painted, galvanitzado or stainless.
Extraflat table with access to transpalet and reclining table.
Extraflat table with access to incline.
|
|
| Technical details series PL3 is realized in order to resolve the problems of balanced long cargo raising puts off center to you or furnish. Equipments of series: • Built-in or separated telephone exchange • Trap door of inspection on the pianale • Perimetrale chassis of emergency • Arms of emergency for the maintenance • Commandos to pulsantiera or pedal-key, present man • Feeding 400 V/50 Hz, Aux. 24 V.A.C. • Valve of block to the base of the oleodinamici cylinders • Rotary parts on self-lubricating bearings or ears-ring • Paint job standard: green - orange • Construction to norms CE, in compliance with EN 1570 Upon request the several requirements of the customer come realized particular applications second. Capacity (kg) Until 50.000 Length (milimeter) Until 16.000 |
|
The parts to be oriented are delivered to you in: containers, cases, boxes, loose or in bags.
You need to tip the parts into orienting hoppers which will supply the vibratory bowl feeders. |
|
| ... products without technical information |
| |
MINIDUMPER HS400 BATTERY
No smoke, no fuel, no noise, no pollution, environmentally friendly,
easy to operate. |
|
MINI DUMPER HS1100 SILENCED VERSION ACCORDING REGULATIONS CE 2000/14
This is the ideal mini dumper for heavy-duty applications: it can be supplied in many versions and with many accessories that makes this machine unique.
Also this machine is silenced according to European regulations CE 2000/14
Main characteristics:
Loading capacity 1100 kg.
Triangle shaped with counterrotation tracks
Double travel speed
Hydraulic track tensioner
Operator’s footboard with shock absorber
Heat exchanger for the hydraulic oil
Auxiliary hydraulic power sockets
Document box
Honda petrol engine 13HP
Yanmar diesel engine 10 HP
Optional:
- Electric start
- Hydraulic widening of the undercarriage
- Hour meter
Interchangeable accessories:
• Construction bed with hydraulic tipping for building sites
• Self-loading construction bed with hydraulic tipping
• Self-loading dumper bed with hi-tip device for building sites
patented by HINOWA
• Self-loading concrete mixer
• Mini excavator
• Front blade
• Rhinetta standard with front bucket
• Rhinetta standard with agricultural shears
• Rhinetta standard with pallet forks
• Farm bed with hydraulic tipping for agricultural use
• Spray kit
• Log splitter
• Winch |
|
The Stanley MHP1 TracHorse is a carryall with hydraulic driven tracks, powered dump bed, and hydraulic tool circuits.
The Stanley MD10 Mini Dumper is a carryall with powered tracks.
|
|
| Because of its compact dimensions and high agility the Bergmann Dumper 1160 as front tip is specially designed for the area of gardening and landscape design as well as the areas of cemetery technique and inside demolition. The hydrostatic drive unit and the payload of 1,600 kg provide effective earth movement in spatially limited working areas. |
|
Manufactured using industry proven components, the Barford SX Series offers some of the strongest and most robust dumpers on the market today. They are available in a comprehensive range of sizes from the two tonne payload SX2000 up to the massive nine tonne payload SX9000.
Powerful engines and no-compromise 4 wheel drive systems throughout the range, ensure that Barford SX dumpers keep moving, even in the most demanding conditions. And with a full manufacturers warranty Barford are there to support and partner you along the way. |
|
Barford introduce the SK ad SKR Series, the first 10 tonne forward tipping (SK10), and the first 9 tonne rotary tipping (SKR9), site dumpers available in the UK.
Design, specification and manufacturing all meet strict European standards to ensure the operator's safety. A full manufacturer's warranty and added support of national and international dealer networks provide the peace of mind of knowing that the SK Series have the power, efficiency and support to get the job done faster! |
|
| The Bergmann compact dumper range offers the complete program for payloads from 700 kg to 8.5 tons. Nearly all applications like gardening and landscape design, cemetry care, inside demolition as well as the classical building construction and civil engineering are covered. Smaller and middle-sized earth moving sites in route transport and off highway are thus rationalised most effectively. |
|
Unlike many other high discharge dumpers that claim to be narrow access, the HDX is genuinely less than 1 metre wide so it can fit comfortably through standard doorways. This enables access to even the most awkward spaces for loading and unloading. The capabilities of the HDX are further enhanced by its capacity to discharge the skip up to a height of 1.59 metres, allowing you put the load exactly where you want it.
Barford's HDX Series High Discharge dumpers come as both 1000 or 750 kg loading capacities, and have the peace of mind of a full manufacturers warranty. |
|
| The Bergmann compact dumper range offers the complete program for payloads from 700 kg to 8.5 tons. Nearly all applications like gardening and landscape design, cemetry care, inside demolition as well as the classical building construction and civil engineering are covered. Smaller and middle-sized earth moving sites in route transport and off highway are thus rationalised most effectively. |
|
Barford's SXR Rotary Tipping Series of dumpers are built to the same exacting standards as their Forward Tipping stable mates, but benefit from the additional versatility of a skip that can be rotated through 180 degrees for easier loading and unloading. Whatever the job Barford has an SXR Rotary dumper to suit.
The range spans a 3 tonne model through to massive 7 and 8 tonne turbo charged machines and the new SXR3 HiLODA. All SXR machines come with a full manufacturers warranty as standard. |
|
