Ganter from Furtwangen offers a wide range of Toggle clamps.

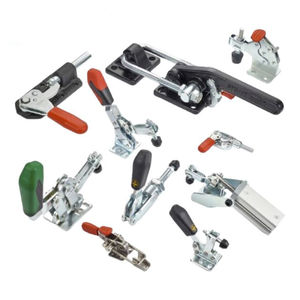

Vertical clamps, horizontal clamps, push-pull clamps, hook clamps, pneumatically operated clamps are an extract of a wide product range.
|
|
STANDARD HTC DESIGN
Automatically Adjusting
LOW ARM TC DESIGN
Extra-Wide Opening
|
|
HORIZONTAL-HANDLE TOGGLE CLAMPS
VERTICAL-HANDLE TOGGLE CLAMPS
PUSH/PULL TOGGLE CLAMPS
Toggle Edge Clamps

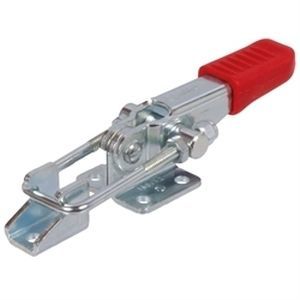

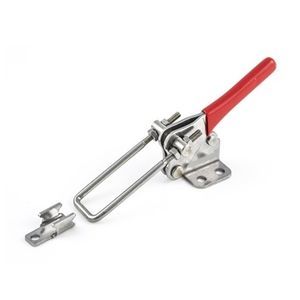

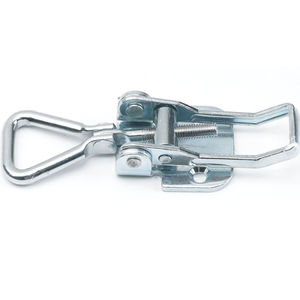

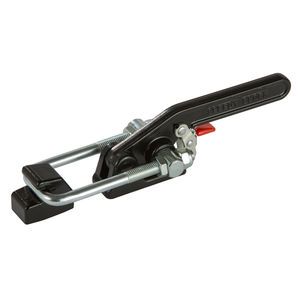

LATCH-ACTION TOGGLE CLAMPS
TOGGLE PLIERS
AIR-POWERED CLAMPS
|
|
|
|
|
|
|

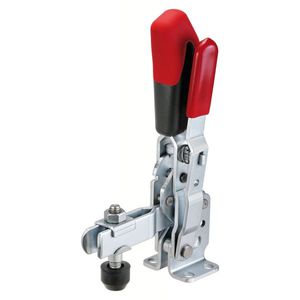

The grasshoppers EMILE MAURIN: New ergonomic handle Bi-matter!! A very broad range steel and stainless! The new grasshoppers EMILE MAURIN are provided with an ergonomic handle Bi-matter for a better comfort of use. The non-skid flexible part is in contact with the hand and the harder part in contact with the grasshopper. These grasshoppers have also 2 other technical advantages: an articulation made safe with an integrated thrust and an arm out of U slightly widened to avoid the loss of the screw of plating. The range of grasshoppers EMILE MAURIN is composed of: thorough grasshoppers: with horizontal base plate, vertical or side; with full arm; reinforced; with handle of safety, anti-reflecting drawn grasshoppers: with horizontal base plate, vertical or side; with full arm; with handle of safety, anti-reflecting grasshoppers with sliding tube grasshoppers with hook pneumatic grasshoppers And of course of many models are proposed out of stainless for specific uses in industries such as chemistry and agro-alimentary.
|
|
Material:
Steel or stainless steel
Surface finish:
Galvanized and chromated,
clamping spindle and nuts phosphated,
stainless steel natural finish,
plastic handle oil-resistant
|
|

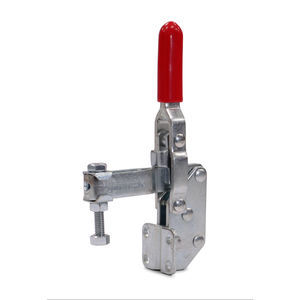

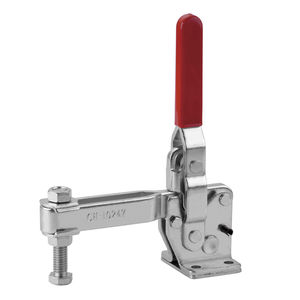

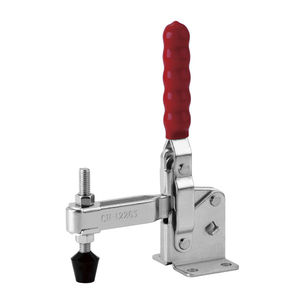

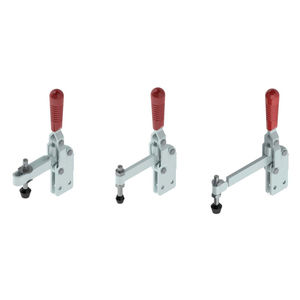

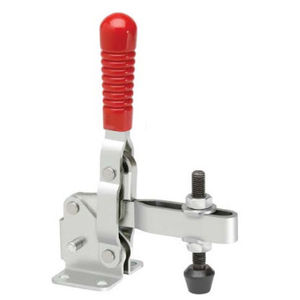

Vertical
Hold Down Vertical 1000lbs max
This heavy duty clamp is available with solid bar and U-Bar construction. It accepts all 1/2-13 diameter spindles. The solid bar model is supplied with a 70901 bolt retainer. The U-Bar model is supplied with 70902 flanged washers. Spindle assembly 70903 must be ordered separately for both models.
Holding capacity: 1000 lbs. max.
Weight: 2 lbs., 7 oz.
Handle moves 67°, bar 120°
Solid Bar: 7/8" height, 3/8" wide
U-Bar: 7/8" height, 17/32" wide
Horizontal spindle adjustment: 3 1/8"
Spindle Thread: 1/2-13

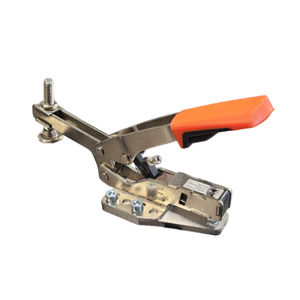

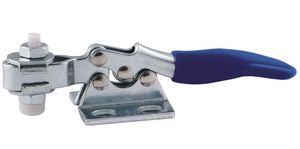

Horizontal
Hold Down Horizontal 750lbs max
This horizontal clamp is available with U-Bar construction in a flanged or straight base. Supplied with a 70915 neoprene tipped spindle assembly. Both models supplied with a blue vinyl handle.
Holding capacity: 750 lbs. max.
Weight: 1 lb., 8 oz.
Handle moves 55°, bar 90°
U-Bar: 3/4" height, 7/16" wide
Horizontal spindle adjustment: 2 1/4"
Spindle Thread: 3/8-16
|
|
|
WDS stock a huge range of Toggle Clamps in both Mild and Stainless Steel. Vertical, Horizontal and High Speed options are catered for in the range that is covered within the Standard Parts catalogue. For further details or a copy of any of the catalogues available from WDS visit our web site or call + 44 (0)113 290 9852.
|
|

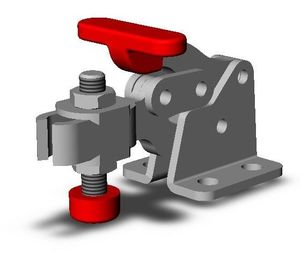

225 - Horizontal Hold-Down Toggle Locking Clamp
Minimum overhead clearance is required for this low profile clamp
1. 500 lb. capacity
2. Clamp supplied with neoprene spindle
3. Stainless steel and straight base models available
4. DE-STA-CO® Toggle Lock Plus versions available
235 - Horizontal Hold-Down Toggle Locking Clamp
Minimum overhead clearance is required for this low profile clamp
1. 750 lb. capacity
2. Clamp supplied with neoprene spindle
3. Stainless steel and straight base models available
4. DE-STA-CO® Toggle Lock Plus versions available
|
|

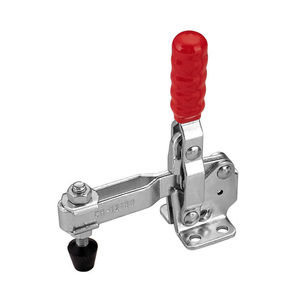

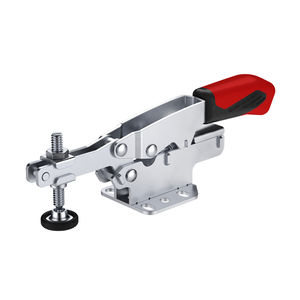

Horizontal and vertical zinc-plated steel clamps for light to medium duty applications.
High quality surface protection treatment, optionally available in stainless or other high grade steels for moist or underwater applications,
ergonomic pressed-on plastic handle,
robust fully riveted,
stainless steel and hardened bearings,
two part clamp arm for quick mounting and removal of the clamp pad,
internal stop for defined arm clamping position:
The Clamping Tools for Professionals!
|
|
8021 - Pneumatic Hold Down Clamp - Enclosed
Patented enclosed linkage makes clamp ideal for dirty environments such as welding and machining.
1. 390 lb. Capacity
2. Double-acting pneumatic system required to operate
3. Available with magnetic ring for position sensing as an option. Switches are also available
4. Can be equipped with Viton seals for high temperature applications
035 - SELECT Pneumatic Swing/Pull Clamp
StrongHold SELECT pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. They are a rugged and simple design suitable for harsher applications.
1. Double acting in threaded body or lower flange mount styles
2. Range of sizes for maximum clamping forces from 50 to 430 lbs.
3. Swing motions in right, left or straight guided pull
4. Avaiable in 0, 45, 60 or 90 degrees of swing
|
|

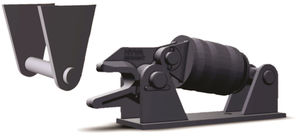

The high performance toggle action clamps are used to clamp mid to large size vehicle parts in Body-in-White operations. The oblong design of the cylinder and the narrow clamp head allow optimal access for weld guns and the fully enclosed mechanics provide a shield from welding slag.
The units are designed for over 3 Million work cycles.
Optionally available in steel or aluminum design.
Integrated inductive position sensors mounted in a cartridge (Patented)
|
|
