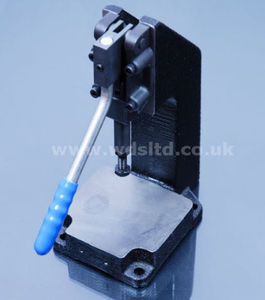

TOGGLE PRESSES 700 kg / 1500 kg / 2000 kg
On these articulated lever models, the maximal power is obtained attaining the Bottom Dead center of the stroke.
|
|
|
|
|
|

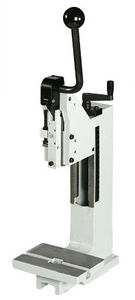

Manual Toggle Presses - 2.5kN - 50kN
The 360 degree adjustable handle lever allows the most favourable lever position for each respective procedure (not 2.5kN HKP/E)
The precise and non-floating adjustable V-guide guarantees accurate working, even with tools without guidance (not 2.5kN HKP/E)
The detachable spigot clamp allows frontal loading. By means of the spigot clamp a high holding force is achieved without damage to the fixing spigot
The head of the press is guided by an H7 manufactured flat guidance
The daylight can be quickly and easily adjusted by means of a fine pitch thread operated by a crank handle (not 2.5kN HKP/E)
Table with wide T-grooved clamping surface
Extended gap and height frames can be extended further if required (not for 2.5kN HKP/E and 2.5kN HKPV)
The range of application can be substantially expanded by means of customer-specific accessory equipment
For models 8/12 kN and 8/16 kN HKPV, the pressure force can be increased from 8kN to 12kN, or from 8kN to 16kN respectively, by simply changing the bearing bolt of the toggle lever. The height of stroke is thereby reduced to ca. 25mm
By comparison our toggle presses reach there listed nominal force at the bottom dead centre with a lever operating force of 400 to 100N (4 to 10 kg)
|
|
| ... products without technical information |
| |
Pneumatic toggle presses
APK series
The optimum transmission ratios of the toggle press produce
high forces at the end of the stroke, ensuring low air consumption.
Thanks to the resultant low energy consumption,
mäder pneumatic toggle presses are an economical
means of production not only at the time of purchase, but
also in the long term.
All pneumatic toggle presses can be supplied with mäder
standard controls (see page 23) or with controls made to
customers' specification.
Further quality features:
- factory-set bottom dead centre (BDC)
- simple height adjustment of the press head using
a bevel gear
- side-mounted measuring strip for rapid repetition
of settings when changing tools
- virtually maintenance-free double-action cylinder
- low noise: under 75 dBA
|
|
Pneumatic Toggle Presses - 20kN - 100kN
The stroke can be continuously adjustable by means of a crank handle
The precise and non-floating adjustable V-guide guarantees accurate working, even with tools without guidance
The detachable spigot clamp allows frontal loading. By means of the spigot clamp a high holding force is achieved without damage to the fixing spigot
The adjustable toggle link (special accessory) allows precise adjustment of the operating depth of the ram
The adjustable and removable press table has a solid and non-floating adjustable flat guidance
Table with wide T-grooved clamping surface
The electro-pneumatic safety controls comply with the present CE regulations
Combination of the BALTEC rotary indexing table or presses with our light curtain control allows up-to-date and rational working with large-scale series
The range of application can be substantially expanded by means of customer-specific accessory equipment
