The F/T force and torque sensors provide full six-axis force and torque sensing with high factor of safety. The F/T can be mounted to a robot arm or any tooling where multi-axis force/torque sensing is needed.
|
|
This standard reaction torque sensor is ideal to be integrated on a test stand or in other torque measurement application.
This additional mini reaction torque sensor is recognized automatically by our Centor Star and Dual force and torque gauges. It can complete a set of force and torque instruments at a very reasonable price.
The sensor characteristics are stored in the memory of an electronic circuit located inside the sensor connector and they are read by the Centor Star or Dual instrument, which is automatically configured and becomes a torque gauge without the operator having to make any adjustments.
|
|
|
|
|
|
FUTEK Advanced Sensor Technologies Multi Axis Load Cell are designed to measure a multiple of forces and moments simultaneously with a single Load Cell.
Multi Axis Load Cells can accurately measure up to six components (3 forces and 3 moments) of load. For example, Independent strain gauge bridges are used to measure three directions of force: Longitude, Latitude, and Vertical, as well as, the moments about each force direction. Separate receptacles or cables are provided for each axis of measurement. A careful structural analysis has been done to isolate the forces and moments, which results in a reduction of cross-talk sensitivities.
All designs are one piece flexures, machined and gauged to give optimum output, stiffness and durability. For example, one of our more innovative designs, the Stick Shift/Gear Shift Knob Transducer offers a lightweight, robust feature comprised of Anodized Aluminum and weighing as little as 9 oz. Its special ergonomically designed cover contains anti-slip notches for proper handling coupled with less hand strain on the user.
|
|
If you have special requirements for your measurements, why not rely on transducers and sensors that optimally match your specific application? We develop and manufacture customized transducers for you that meet your specifications. Benefit from the market leader's experience and competence to get your custom-designed sensor.
Measure torque using customized transducers from HBM - also available as multi-component transducers!
Benefit from the proven high quality, delivery reliability and global availability you already know from our standard range of products.
- Flexible design and quantity - be it small or large quantities. With or without amplifier - it's your choice
- Quick development and manufacturing - Rapid engineering and rapid prototyping make it possible
- Reliable through our competent After Sales service, two-year warranty, DKD calibration and ISO9001 certification
...at an excellent price/performance ratio!
|
|
Responding to specific projects is a part of our strength.
Are you looking for a solution for which no available component is to be found on the market? We will help you solving your problem by means of one of the special load cells we already realized or by developing a custom made model. Our design team will assist you in your project, from its very beginning till its complete realisation. Designing and realizing new solutions are our specialties; it belongs to our company's culture. During the last years, we have developed more than 1500 models and applications, from single part till medium and great serial production. We can present you a documented proposal including quotation within short time.
Even a part of an existing machine can, under certain conditions, become a force transducer measuring tension or compression. Transducers that will respond to your need at particularly competitive prices.
|
|
|
|
|
|
The technology for our 'TorqSense' RWT310/320 Series Torque Transducers is based on the patented technology of measuring the resonant frequency change of 'Surface Acoustic Wave' (SAW) devices in a non-contact manner when strain is applied to a shaft to which the SAWs are fixed. The applied torque causes a deformation of the quartz substrate of the SAW device, which in turn causes a change in its resonant frequency. Essentially the SAWs act as 'frequency dependent' strain gauges.
The frequency signal measuring the resonant frequency is coupled via a non-contact RF rotating couple from the shaft to a fixed pick-up and it is the analysis of the difference in resonant frequencies between the two SAW devices, with electronic processing and calibration, that gives a precise indication of the torque transmitted by the shaft. SAW devices have a high immunity to magnetic fields allowing their use in motors, for example, where other analog technologies are susceptible to electronic interference and are not suitable.
The use of this patented measurement technique results in a transducer being able to sense torque bi-directional, with fast mechanical and electrical responses. As the method is non-contact it has also complete freedom from brushes or complex electronics, which are often found in traditional torque measurement systems.
|
|
|
Our range of Torque Transducers is designed for use in reaction type applications and they can also be used for some rotary applications.
|
|
FUTEK's Rotary Torque Sensor - Square Drive with Encoder offers a unique solution for torque auditing applications. The TRD305 Rotary Torque Sensor - Square Drive
with Encoder is available in a wide capacity range and utilizes strain gauge technology.
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK's VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK TRD Series is also available with TEDS / IEEE1451.4 option.
|
|
|
|
|
|
FUTEK's Torque Sensors feature both Reaction and Rotary Torque Sensors in which the former use static and the latter uses dynamic torque mechanics.
Our Reaction Torque Sensors utilize a strain gauge full bridge configuration that is maintenance free with immovable non-rotating parts that can be used to check residual torque on a fastener. We offer non-contact in-line mounting configurations and are capable of sensing torsional rotational speeds up to 12,000 RPM.
FUTEK's strain gauge based torque sensors are widely known in many industries to contain:
-The highest accuracy
-Robust Construction made of either high strength Stainless steel or Aluminum.
-A guarantee to perform at longest possible work life even at the most rigorous conditions
-A plethora of mounting options for ANY scale ANY-where.
-Competitive pricing
-Capacities ranging from 5 in.-oz. to 500,000 in-lbs .
Our selection of Torque Sensors can be categorized by the following styles:
-AIR TOOL REACTION
-FLANGE TO FLANGE REACTION
-HEX DRIVE ROTARY
-SCREW DRIVER REACTION
-SHAFT TO SHAFT ROTARY/REACTION
-SOCKET EXTENSION REACTION
-SQUARE DRIVE ROTARY
-SQUARE DRIVE TO FLANGE REACTION/SQUARE DRIVE REACTION
-TORQUE WRENCH REACTION/SCREW DRIVER REACTION
|
|
|
Honeywell Sensotec manufactures reaction and rotary torque sensors for ranges to 24,000 lb-ft. Non-contact rotary torque cells, with in-line or clamp-on design, handle shafts up to 32” in diameter and rotational speeds from zero to 15,000 rpm. Shaft- or flange-mounted reaction (non-rotating) torque sensors cover many industrial applications, and our Torque Watch series measures microtorque as low as 0.003 oz-in.
|
|
Characteristics:
Universal torque sensor. Compact, various shaft connections.
Applications:
Designed specifically for use in screw connection. Typical applications include the testing of built-in nutrunners or torque measurement with hand screw driving tools. For brief, intermittent operation at low speeds.
|
|

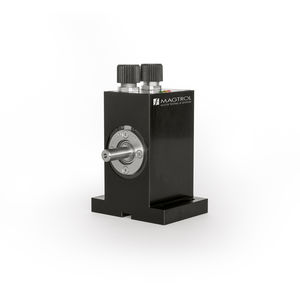

Magtrol's in-Line Torque Transducers provide extremly accurate torque and speed measurement over a very broad range from 1Nm up to 10'000 Nm.
To provide customers with several price/performance options, Magtrol offers three torque transducer models :basic accuracy (TMB series), standard accuracy/speed range (TM series), high speed range (TMHS series)
|
|
|
The RDP range includes digital telemetry, slip ring, rotary transformer, compact and square drive slip ring styles.
|
|
A large standard range from 0.005 Nm to 20 000 Nm
Our torque meters are able to measure torques on rotating parts (e.g. to measure a motor torque) or fixed parts (e.g. to check a torque wrench).
We provide sensors for fields such as industry, automobile, test and inspection benches, assembly or screwing systems.
High technology rotating torque meters
For these sensors, the signal is transmitted between the fixed part and the rotating part either with or without electrical contact, so that we can reach rotation speeds of up to 30 000 rpm with a measurement precision of 0.1%.
|
|
|
Looking for static or dynamic torque meters? We do have your solution, with or without fastening! You want a process control where you need to regulate the torque for optimizing the strain under which your equipment has to work? You want to integrate directly a torque meter on your transmission shaft? For quality assurance means, you need to control and calibrate your pneumatic/electric screw drivers or dynamometric wrenches? We can advise you on the most appropriate torque meter. As flexibility is our philosophy, don't hesitate to contact us for "custom-made" solutions. Design and realisation of new solutions is our force and speciality. Please test us! We do guarantee you a fast and professional response.
|
|
Torque Sensor Rotating, Non-Contact Transfer
Model 8645 with round shafts
Model 8646 with square ends
new patented measuring technology, maintenance-free due to to non-contact transfer, extremely low priced, round shafts or square ends
Very low price
New, patented measuring technology
Measuring ranges from 0 ... 2.5 Nm to 0 ... 500 Nm
Speed up to 5000 rpm
Maintenance-free due to non-contact transfer
With its new EMD-technology this sensor can measure static and dynamic torque from non-rotation up to permanent high speed. The reliability and, above all, the very low price opens up new possibilities next to the present applications for torque measurement sensors.
|
|
|
TorqSense Digital RWT310/320 series transducers with integral electronics are available in three different body sizes for torque ranges up to 10,000Nm. The series offers a cost effective, non-contact digital rotary torque measurement solution, using Surface Acoustic Wave technology, suitable for torque monitoring, testing or controlling drive mechanisms. TorqSense RWT310/320 series transducers and their technology are particularly appropriate for OEM applications.
|
|
|
With the boxes of measurement of couple Weber: finished the long discussions concerning the couples of screwing.
|
|
|
|
|
|
Utilising many years of load cell and transducer design and manufacturing experience, Flintec is able to provide a custom strain gaging service on customer supplied components. From low volumes through to serial production, Flintec can provide a cost effective and reliable service to OEMs.
For customers requiring solutions to force measurement problems, Flintec is able to supply custom designed and manufactured load cells, transducers, application parts and electronics or even complete sensing solutions.
Flintec provides
- Sensing element design - CAD, FEA and 3D solid modelling
- Production of prototypes - in-house CNC machining and heat treatment
- Strain gage installation - modern, well equipped production facilities
- Calibration - temperature calibration and force calibration using hydraulic and dead weight test machines
- Electronics - internal or external signal conditioning electronics
- Rapid turnaround - all processes under one-roof
- Design verification and validation - tailored to meet the needs of the client
|
|
DATAFLEX®
* Complete solution for measuring torque and speed at low cost
* New patented measurement technique
* Very high signal bandwidth
* Maintenance-free, contactless
|
|
|
It is often the case that torque in a rotating shaft can be measured with a stationary, reaction torque sensor at some point in the powertrain. This is due to the existence of an equal and opposite force (torque) necessary to hold the drive and driven equipment in place.
|
|
Torque Sensor TCU-100
TS-1 is a measure converter that calculates an electrical motors torque in Nm and converts it to an output signal from 0–10 V.
Introduction:
* Torque measuring in a large frequency range 10-400 Hz
* Measuring takes place directly at motor wires. This prevents fault measuring caused by interruption or loss before and inside the frequency inverter
* Its possible to measure the torque from a separate motor when using a shared frequency inverter
* Simple installation even in existing installations, without extra mechanical components
* 24 V DC or AC power supply with galvanic isolation
* External hall current sensor for precise current measuring without the need for main current to flow through TS-1 witch gives a high safety
* Standard analog output 0-10V or 4-20mA
* Calibrations: 500 volt / 200 Amp. / cosö = 1 / 50Hz = 10 volt / 20 mA output signal witch is equal to 276 Nm when using a 2 pole motor with 1 winding trough the hall- sensor LA 205S and 100% range.
|
|
|
Bonded foil strain gages are the time-honored standard for measuring torque and force on mechanical components. Based on many years of experience with this proven technology, Teledyne Instruments offers a variety of torque sensors and load cells for factory, laboratory, and field testing.
|
|
SS-002 - Torque Detector (0.2Nm)
The SS Series has a long performance sales record in a wide variety of applications, including performance tests of motors, pumps, compressors, blowers, boring machine, and gears. Thanks to the economics of mass production, these detectors are as inexpensive as strain gauge types and they are stocked for immediately delivery. High rigidity results from the unitized cast-casing construction.
Specifications:
- Measurement Range: 0.2 Nm
- Minimum Resolution: 0.1 mNm
- Revolution Range: 0 to 6000 r/min
- Moment of Inertia: 4.25 x 10-5 kgm2
- Spring Constant: 1.67 x 10 Nm/rad
|
|
The Torque Sensor comprises of three items: Rotor, Stator, and Power Pack/Digital
Readout & meets the requirements of relevant EU directives.
There are seven sizes of Torque Sensors, which are adaptable to suit most power transmission equipment where torque, power, speed or temperature needs to be constantly monitored.
|
|
|
Crane's CheckStar is an in-line torque transducers with angle measurement options. It sets the standard for dynamic torque and angle measurement of all continuous drive and impulse tools, with proven reliable performance in thousands of applications worldwide. CheckStar transducers fit in-line between the assembly tool and the fastener, measuring the actual torques applied under production conditions.
|
|
TesT electronic force measurement systems comprise the load cell (sensor), connector cable, plugs and electronics.
Load cells are available to detect compression and tensile forces of between 1 N and 40 MN, in various accuracy classes and operating ranges.
|
|
The E200 ORT (Optical Rotary Torque) transducers provide an ideal means for precise dynamic measurement of rotary and static torque of less than 500Nm at high speed and high bandwidth.
|
|
|
|
|
|
HBM torque transducers are used in many branches of industry: plant supervision and process monitoring, power engineering, materials handling, test bench technology, quality assurance, and research and development. Typical applications include:
Torque measurement of vehicle engines
Torque measurement using engine and chassis dynamometers
Torque measurement of transmissions
Torque measurement of reduction gears and gearboxes
Torque measurement of pumps
Torque measurement of marine engines
Torque measurement of electric motors
Torque measurement of shaft torque and power monitoring systems
Torque measurement of compressors
Torque measurement of steering shafts
Torque measurement in viscosity testing systems
Torque measurement of hydraulic motors (aerospace, machinery)
Torque measurement of pneumatic motors
Torque measurement on test systems for automotive components (screen wipers, electrical windows, generators, brakes, starters, clutches)
Torque measurement of motorized valve drills and pneumatic tools.

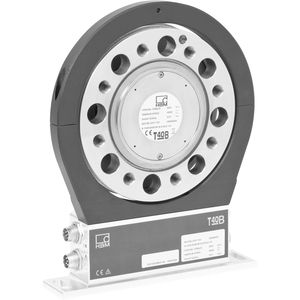

The HBM torque range includes torque transducers and flanges, as well as non-rotational torque transducers for measuring reactions. Slip-ring or non-contact signal transmission is used exclusively.
|
|

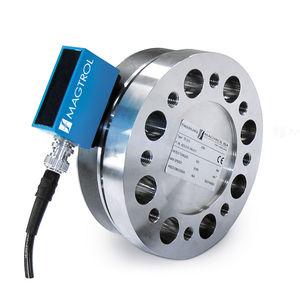

With its compact, bearingless, maintenance-free design, the new TF Torque Flange Sensor from Magtrol brings many appealing advantages to torque measurement applications. The TF's high torsional rigidity supports direct mounting on the machine shaft or flange, avoiding the use of couplings on one side. This allows easy integration into a test system, shortens the overall length of the test bench and reduces costs.
Based on strain-gauge technology, the TF Sensor's precise telemetry system enables highly accurate signal transmission. A signal amplifier mounted in the measuring flange amplifies the measuring signal, modulates it to high frequency and transmits it inductively (via the HF transmitter) to the receiver. In the receiver, the digitized torque signal is transformed into an analog output signal of ±10 VDC. Rotational speed can be measured and converted to a TTL output signal with the optional speed pickup.
|
|
|
|
