Suitable for a wide range of pulse inputs such as magnetic pick-ups, proximity sensors, photoelectric sensors and flowmeters. The 877X is a versatile unit suitable for many speed or process time indication and control applications.
• 14.2mm character high visibility LED display.
• 1/8 DIN (96mmx48mm) bezel.
• Fully programmable.
• Programmable display update time 0.1 to 99.9 seconds.
• Display scaleable to show engineering units.
• (TAU) process time indication.
• Programme lock out facility.
• AC and DC powered models available.
• Analogue re transmission option.
• Dual relay output option.
• RS485 communications option.
• CE approved. (UL and cUL pending).
|
|
|
|
|
|
AALBORG®'s compact TOTALIZER is designed to be used primarily
with mass flow meters and mass flow controllers.
It can also be used in conjunction with
other types of instrumentation with 0-5 Vdc signal
outputs.
The TOTALIZER takes analog output flow signals of
either 5 to 10 Vdc from GFM mass flow meters
and GFC mass flow controllers, or 0 to 5 Vdc from
AFC mass flow controllers, AFM mass flow meters
and other compatible products (jumper selectable).
The TOTALIZER integrates and accumulates up to 7
digits of direct engineering units for the given gas
and flowrate (i.e. standard liters, standard cubic
centimeters.
In order to reduce low signal (noise) totalizing, provision is made for 1% cut off.
A built-in battery back-up holds the total reading
for up to 20 years.
The TOTALIZER can be connected to GFM mass flow
meters or GFC mass flow controllers via either a
modular jack replacing the LCD display or with an
additional connector in parallel with the LCD display.
SPECIFICATIONS:
Input Analog Range: 5 to 10 Vdc/0 to 5 Vdc optional.
Power Consumption: 10 mA at 12 Vdc, less than 0.125 watts.
Accuracy: ±0.5% of full scale.
Temperature Stability: ±200 ppm/ºC in the range of 5º C to 50º C.
Display: 7 digit, 8mm figure height.
|
|
- Your choice of LED and LCD Counters
- Miniature and industry standard counters
- Shock proof versions
- Magnetic field proof versions
- Extremly low power consumption
- kWh counters
|
|
Veeder-Root Electronic Timers & Counters
" The Best Known Name in Electronic Timers & Counters™ "
Profile:
Veeder-Root™ - For over 100 years, no other company offers a broader selection of counters. Veeder-Root, the best known name in counters, offer rugged and economical electronic, mechanical and electromechanical counters, including totalizing, preset and predetermining counters as well as diverse process and rate indicators, for non-stop performance and production monitoring in industrial manufacturing applications. Veeder Root was acquired by Danaher in 1989, but the V-R counter products were then re-aligned under the Danaher Industrial Controls Group business segment beginning in 1991 and is supported by an entirely separate sales channel from the Veeder Root tank gauge and fuel management division.
|
|
Totalizers are the simplest and most common type of counter, used in a variety of applications where accurate totals are needed, including counting the number of parts produced, amount of material used, or the number of machine cycles occurring.
|
|
The 7010 and 7016 are two counters based on the same miniature self powered totaliser. Both counters come ready for fitting and feature flying leads for connection to remote contact closure input devices.
- Self powered for 3-4 years using a 1.5V button cell.
- 4/6 digit 6mm character high contrast LCD display.
- Low power CMOS circuitry to achieve an expected battery life of 3 to 4 years at 20°C.
- Simple to install.
- Integral de-bounce circuitry.
- UL and cUL approved.
The counter increments when contacts are opened. They may be panel mounted with the optional bezels supplied.
|
|
Models: FRYC Series
Figures: 7
Size of Figures: 3 mm
Voltage: 6-12 VDC
Max. Speed: 15 cps
Mounting: Panel, Base, Frontal or PCB.
Conection: Cables or Pins
Aplications: Industrial Machines, Vending, Slot machines, Videogames ...etc
|
|
Honeywell Hour Meters / Monitors
Universal Application. Singular Performance. You'll find Honeywell hour meters where quality, performance and rugged construction are needed. Track and record elapsed time more effectively and efficiently (hours or tenths of hours). Log equipment running time to assure proper maintenance of expensive machines or systems or track warranty programs. Often eliminate the guesswork with elapsed hours for better machine resale value, or logging actual time on your rental products.
Honeywell's Hobbs hour meters offer:
-Multiple power, display, shape and data options
-Analog or LCD displays
-ac, quartz dc or Diochron product families
-Shock and vibration resistance
-Noiseless performance
|
|
Electromechanical and electronic Preset hour meters for:
- Machines
- Medical equipment, e.g. respirators
- Vehicles of various types
- Generators
- Small machines & instruments
- Control panels
Electronic Time relays for:
- Industrial applications
- Automation and machines
- Vehicles, mobile plant
|
|
LH2H - hour meter (digital)
- Operation Voltage: built-in battery; 4.5V DC - 30V DC, 24V AC - 240V AC
- Output: no output
- Display: 7 digits; day / hour; hour; hour / min. / sec.
- Battery life: 10 years
- Reset: yes / no
- Size: 48 x 24 x 54.4mm
Key Points:
- Industry first, bright, 2-colour back light
- Easy-to-read display
- Battery replacement easy
|
|
4H37-2
Hour Meter
7 digit hour meters for AC or DC operation in a standard DIN housing with panel clip mounting.
The 4H37 hour meters display to a resolution of hundredths of an hour (36 second intervals). The AC model shows a rotating red striped wheel to indicate that it is operating.
• 7 digit 4mm white on black for hours, red on black for decimal.
• Standard 24 x 48 DIN case.
• Panel clip mounting.
• Available with sealed window to IP65 to special order.
• DC or AC (50 or 60Hz).
• Synchronous motor drive for AC model.
• Stepping motor drive under crystal control for DC model.
• Isolation protection to VDEO435.
The AC unit normally operates on 230VAC 50Hz but other voltages, and 60Hz, are available to special order. It is supplied in a black case with grey available to special order.
Electrical connection is via screw terminals but a version having flat 0.8 x 6.3mm pins is also available to special order.
|
|
700 Series
Highly reliable solid-state hour meters and counters that offer an unprecedented combination of patented technology, performance, reliability and value. Ideal for a wide variety of industrial and commercial applications, including scheduled maintenance, warranty and leasing - for medical equipment, transport and industrial vehicles and other industrial equipment.
- Model 700: 2-wire hour meter, displays only when powered. AC/DC.
- Model 701: 3-wire hour meter; has provision for continuous display. AC/DC and DC.
- Model 703: Pulse counter. AC/DC and DC.
- 6-digit LCD, 5 mm or 7 mm digits (7 mm with optional backlighting).
- Non-volatile EEPROM memory.
- Wide voltage ranges minimize worldwide stocking requirements.
- Wide range of case styles to fit in all types of standard hour meter/counter cutouts.
|
|
Models: 14G and 27G
Figures: 4
Size of Figures: 4 mm
Resetting by knob.
Counting of persons, parcels, trees, cattle and any type of pieces in factories... etc.
Model 27G With base to place on the table.
Model 14G available also in green, yellow, black and blue colors.
|
|
The model shown is the basic unit, variations are available to special order. All models are robustly constructed for continuous operation at high speeds with the main shaft running in double oil impregnated bearings to ensure accurate, long term, trouble free service.
• Top viewing (front viewing models are available).
• 6 digit 6.4mm character height (0.25in) readout.
• 6.35mm (0.25in) diameter drive shafts.
• Up to 3000 counts per minute with 1:1 gear ratio.
• 1:1, 1:10, 2:1, 3:1, 4:1 gearings as standard.
• Customised gearing available on all models (but some gearings may have fewer digits on the readout).
• Reset to zero and non-reset models available.
• Reset by lever, or cylindrical lock and key.
This counter can be driven from either or both sides. All resettable models can have the reset
lever on the left or the right. A non-reset model is also available.
|
|
Digital high counting speed counter
• Power supply: mono or multivoltage from 24 to 230Vac, 24Vdc
• Display: 1, 2, 3, 4 digits
• Wide range of functions
• With or without display
• With or without memory
• Mounting: wall mounted, panel mounted, DIN rail 35mm
• Dimensions: modular 45mm, frontal 48x48, 48x96 mm
• Connections: screw, faston
|
|
Models: 40G Series
Figures:4
Size of figures: 4.5 mm
Max. Speed: 300 gpm
Oscillation angle: 42º
Special for billiards, vending, coffee machines, ... etc
|
|
|
Counters & timers are the basic tools widely used in automation process of various industries. Autonics offers the wide range of industrial counters and timers, designed, manufactured and tested to meet the most demanding worldwide standards and ratings. They also offer reliable design, quick replacements, panel space-saving and solutions that offer increased functionality, flexibility and performance.
|
|
Automation components: from mini-counters to sophisticated programmable control counters, totalizing, preset, time, shift and interface counters, position indicators, multifunction counters, timers, controls, tachometers, displays.
signo 723.1 with interface RS 485 / RS 232:
Display: 6-digit, suppression of leading, zeros, programmable decimal point, minus sign, 14 mm
Dimensions (BxHxT): 96 x 48 x 108
Counting frequency: 40 kHz / 30 Hz
Count Input: 0.0001 - 99.9999
Protection class: IP 54
Control inputs: Reset, Gate, Hold, Keylock
|
|
Totalisers

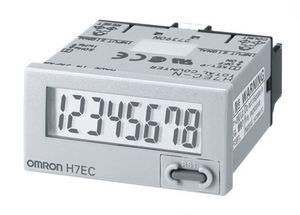

Omron has a wide range of digital total counters. The LCD display range H7E consists of five types (total counting, time counting, tachometer and PCB total/time counters); the high visibility negative red LCD-type range (H7GP & H7HP) consists of total- and time-counting models.
Pre-Set Counters
With its range of pre-set counters, Omron offers you the possibility of controlling all the pre-scale settings you require. The range includes the world's smallest (48 x 24mm) type (H8GN) and an advanced 48 x 48mm version (H7CX).
Cam Positioners
If you wish to replace old-fashioned rotary cams with repeat-pattern control, Omron offers an electronic solution operating in combination with a rotary encoder. Omron's cam positioner H8PS is a front-mounting model of 96 x 96mm with 8 outputs.
|
|
|
Allen-Bradley offers the broadest range of relays and timers worldwide. They are designed, manufactured and tested to meet the most demanding worldwide standards and ratings. One-stop shopping saves you time and money, lowering your total cost of ownership. Our General Purpose Relays and Timers offer reliable design, quick replacements, panel space-saving and solutions. Our Industrial Relays and Timers are designed for heavier-duty applications, large loads, long life and safety circuits. Use our main menu to see the latest line-up of Relays and Timers that offer increased functionality, flexibility and performance.
|
|
HIGH SPEED ENCODER COUNTER
- 72x72 mm sized,
- 300 KHz speed,
- 2 lines, 7 digits display,
- Conting Encoder A and B signals in quadrature mode,
- Functional Z (Reset) input,
- Functional HOLD input,
- 2 double contact relays outputs,
- Preset-1 may depend on Preset-2,
- Prescale can be adjustable (0,000001 to 9999999),
- Decimal point can be select between 1. and 6. digits,
- 5 VDC or 12 VDC encoder supply output,
- 11 several output mode,
- Adds OFFSET to count value,
- Password protection
|
|
NI counter/timer devices use the National Instruments NI-TIO ASIC, designed specifically to meet the counting and timing requirements of measurement applications that are beyond the capabilities of generic, off-the-shelf counter/timer components.
Counter/timer devices provide a variety of measurement solutions, including measuring a number of time-related quantities, counting events or totalizing, and monitoring position with quadrature encoders. Counter/timer devices feature up to eight 32-bit counters and often fulfill critical timing and synchronization functions as components of complex measurement systems. Use counter/timers for:
- Frequency measurement
- Edge or event counting (totalizing)
- Pulse-width measurement
- Event timestamps
- Frequency generation
- Frequency shift-keying (FSK)
- Frequency division
- Pulse-train generation and pulse-width modulation (PWM)
|
|
|
|
|
|
This versatile counter with prescaling can be configured for quadrature or uni-directional inputs, dual preset or single preset with batch preset. Reset can be automatic, manual or electronic with a sink (NPN) or source (PNP) input.
The display is a supertwist high visibility backlit LCD which can be viewed from any angle. The count is on the main display and the preset value (or batch preset) is on the lower display.
• Simple programming via menu driven display.
• Quadrature input
• High visibility supertwist LCD display can be viewed from any angle.
• Backlight programmable ON, OFF or AUTO.
• 40 years data retention with no power.
• Programmable decimal point up to 3 places.
• Operates from 85-265VAC or 10-26VDC.
• 12VDC output to drive a sensor (when AC powered).
• Opto-isolated inputs.
• Wide range of prescaling.
• Output relay contacts rated at 5A.
• Output can be set to latch or pulse with programmable pulse duration.
• Environmental protection to IP65.
• Standard DIN housing.
• CE, UL and cUL approved.
|
|
2.25" & 4" High Red LED Digits
Available in 4 or 6 Digit Versions
Single or Dual Counter with Rate Indicator
Programmable Scaling and Decimal Points
Programmable User Input
AC or DC Powered
5 AMP Form C Relay
Aluminum NEMA 4X Case Construction
|
|
Product B 148
Technical data - electrical ratings :
Approvals CE conform
Gear precision Synchronous to mains
Nominal frequency 50 / 60 Hz
Power consumption 1 VA
Power supply 24/110/220...240 VAC (50/60 Hz)
Other products available:
|
|
Preselection and multifunction up/down counters 48x48 - CPT4
Totalizers - LCD 24 x 48 (Hour counter/chronometer)
Totalizers - LCD 24 x 48
Total/partial impulse counters - LCD 24 x 48
Hour counters - LCD 24 x 48
Electro-mechanical hour counter CH 48 G
Electro-mechanical impulse counters totalizing - 24 x 48
Electro-mechanical impulse counters totalizing - 36 x 37
Electro-mechanical impulse counters totalizing - 36 x 48
|
|
Our logic control devices provide a multitude of features for use in the automation industry. Frequently, discrete sensor or analog signals need to be conditioned for display or monitoring functions in a process. To help you solve these signal conversion problems, we offer a wide range of indicators, counters/ timers, tachometers and other secondary switching devices, specifically designed for applications and used in conjunction with proximity sensors.
When it comes to signal and discrete pulse control and display, Pepperl+Fuchs offers you a broad line of logic and control products.
|
|
Panel Meters and Process Indicators with analogue input, with optional outputs and interfaces
Electronic Counters, Position Counters, High-Speed Counters, Differential Counters etc.
Tachometers, Speed Displays and Frequency Meters with optional outputs and interfaces
Timers and Stopwatches, for industrial time-measuring applications
SSI Indicators, Parallel Indicators, Serial Displays for Absolute Encoders and Sensors
PROFIBUS and CANBUS Indicators, Display Units and Preset Units for PROFIBUS and CANBUS
Monitors for overspeed, underspeed, standstill, direction of rotation, slip, skew position, shaft fracture
|
|
ATS, ATA, ATHA, ATHS Tachometers and Tach/Hourmeters
The AT series tachometer is a rugged, transistorized instrument with solid-state circuitry for indication of engine revolutions per minute (RPM). It is equipped with a bracket for mounting into a standard 3-3/8 in. (86 mm) dash mounting hole.
The tachometer’s full 270° sweep of the pointer gives an accurate indication on a large easy–to–read scale. The dial can be illuminated for night reading.
ATA models sense engine speed in conjunction with an engine-driven charge alternator; ATS models work with a flywheel mounted magnetic pickup. ATHA and ATHS models are also equipped with a digital hourmeter to record the elapsed running time of an engine.
Features:
- Sensing from magnetic sensor (ATS, ATHS) or battery charging alternator (ATA, ATHA)
- High visibility analogue readout, 270° sweep
- Reliable air-core movement
- Easy calibration through dial lighting
- Powered by 12 VDC battery. Optional ATVC 24V to 12V converter.
|
|
|
|
