Cable trunking - Cable Tray system "KP" Series in composite.
Can be used either as a "trunking" or as a "cable tray" with extended support distances (up to 4 meters between supports).
Available in standard 3 m or 6 m in length but also in custom lengths on request.
With or without perforation for cables fixing and ventilating.
Available in a wide range of sizes to meet all needs.
Whole range of accessories including fittings (bends, tees...), splice plates, covers, separations, support brackets and hangers available ex-stock.
|
|

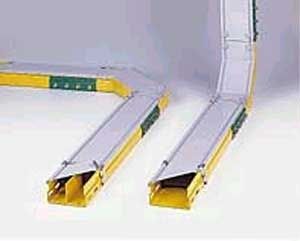

The PFLITSCH PIK-Trunking allows all the benefits of industrial trunking to be applied for small cable volumes as well. It can be opened along its entire length, is closed at bends and outlets and is easily installed using a clip process. A number of specially-shaped elements permit effective 3D configuration.
The PIK-Trunking is available in steel sheet, zinc-plated or primed as well as in stainless steel. It can be combined easily with the industrial trunking to product perfect protection for your electronics and sensors.
The advantages:
- Sturdy design
- Closed also in 90° angle
- Can be opened along entire length
- Shaped parts for angles and outlets
- Practical fastening system
- Tools and shearing machines
- 4-trunking cross sections
- Clip technology
- Edge protection, end cap
- installation in narrow areas
|
|
Pre-mounted cable trunks with cable glands
We plan, manufacture and implement modern solutions to the cable protection in industrial channels and PIK trunks.
You define the necessary cable- / Hose glands - we supply
everything ready to be installed!
|
|

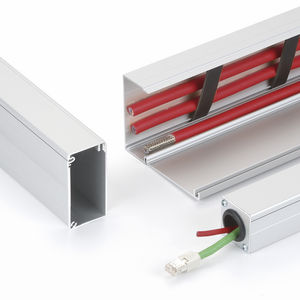

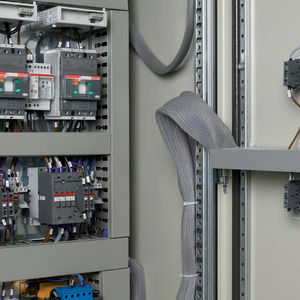

The Industrial Trunking
Economical and reliable for machine and plant engineering
The PFLITSCH Industrial Trunking is the perfect all-round mechanical protection for cables and wires laid from machinery and equipment to switch cabinet and other peripheral units. With over 100 specially shaped elements such as angles, outlets, crossings, reversers etc. each cable routing can be realised. The enclosed system constitutes excellent industrial design.
The trunking components are supplied in various materials, of coated steel sheet or stainless steel, on request painted to customer requirement.
Tools and machines make trunking processing easier.
|
|
Canaline to smooth walls in autoestinguente PVC series CA
Systems of canaline for wirings at sight
Execution in autoestinguente PVC color white man and gray RAL 7035.
Resistant to acids, oils and fat people, they are indeformabili for temperatures comprised between -20°C/80°c. Perfect system of coupling between cover and canalina thanks to the detail design of the profile. Line of invitation to the breach predisposed to the base of the wall for being able to cut the edge when two canaline in derivation are placed. They come supplied complete of cover in the length standard of 2 linear meters manifactured in sturdy scato them of cardboard.
|
|
Intelligent solutions for tomorrow’s energy and data infrastructure
Whether in the office, in industry or at home: data networks and infrastructures are becoming ever more important. OBO’s modern cable routing systems mean that you are well prepared for the new requirements of your customers. The systems are not only user-friendly and efficient during installation, but also during the planning phase. Whichever installation you wish to create, OBO’s cable routing systems give you an advantage – in particular, when combined with the fully compatible EGS device systems. And your customers can look forward to attractive, flexible, safe and well-functioning solutions.
|
|

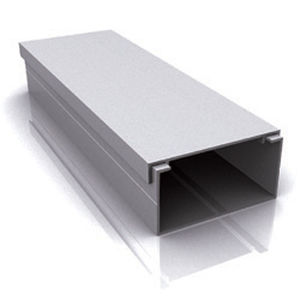

Already at the end of the seventies NIEDAX decided to take the COLOR-trunkings, made of steel, into the range.
Two lines with three different measurements each came onto the market in 1980 then.
Steady expansions and the fact that ideas and suggestions from installers and planners were taken into account, have allowed this product group to expand to such vast range. Today the standard program covers, 25 different measurements made of steel, 5 profiles made of aluminium and corresponding fittings, balustrade-covering and other accessories.
Based on the long experience of our construction division countless special variations were furthermore carried out in the course of time.
|
|
|

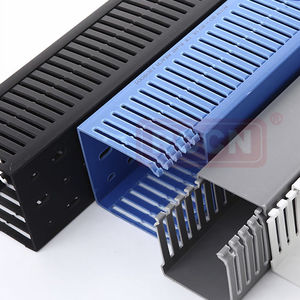

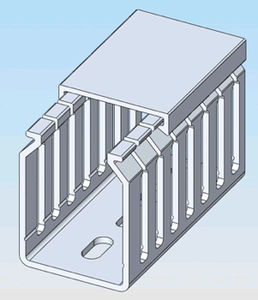

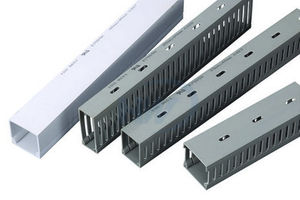

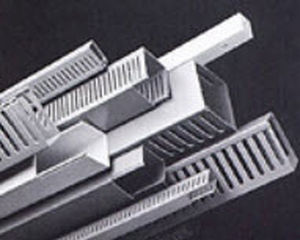

Slotted cable trunking for electric panels and boxes are available in 20 different sizes with reduced and standard pitch. They are provided with perfectly rounded upper profile of reeds so to make cabling operations easier. They can be installed against walls or overhead thanks to the corresponding fixing slots.
|
|

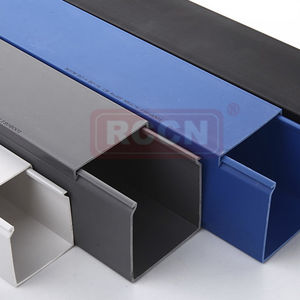

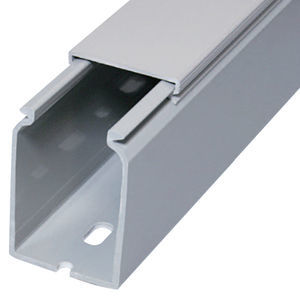

Solid Wall Duct
Solid wall Pro-Duct wiring duct is designed for straight wire runs where breakouts are not required.
|
|
HellermannTyton's selection of wire management products allow users to neatly and efficiently manage wire and cable in many different ways.
Solid Wall Duct
Solid wall Pro-Duct wiring duct is designed for straight wire runs where breakouts are not required.
|
|
SRL1-10-WH6A Raceway,Adh Mnt,White,6 Ft Lg,
SRL1-3-WH6A Raceway,Adh Mnt,White,6 Ft Lg, ,
SRL1-5-WH6A Raceway,Adh Mnt,White,6 Ft Lg, ,
|
|
Managing the hundreds of thousands of feet of cable found in a typical construction job site can be a formidable challenge. Thomas & Betts offers hundreds of products to help wiring professionals route and conceal wiring. Leading T&B brands include
T&B® cable tray, T&B Express Tray®, Steel City® floor boxes, Ty-Duct™ wiring duct and accessories, and Omni-Plus® voice/data accessories.
|
|

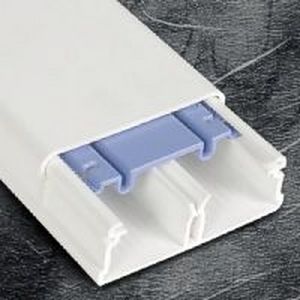

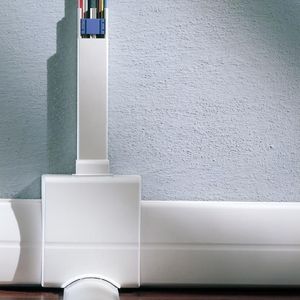

SCAME offers a wide range of trunking meeting the different requirements of electric distribution systems mounted on site, in commercial building, industrial and service applications. They are made in full compliance with current safety standards; and can be installed easily and quickly, ensuring low installation costs.
Thanks to their modern design , they are suited to both domestic and working environments.
The range offers:
* separation of different circuits (electric system, phone system, central TV system, EPD data trasmission, PC)
* installation of wiring accessories into the relevant back boxes
* complete accessibility of the finished system for inspection purposes.
* easy adaption of existing installation to accomodate additional accessories, switches, sockets, etc.
* integrating mini-trunking with skirting trunking
|
|
|
The FIBERRUNNER® and FIBER-DUCT Routing Systems are systems of channel, fittings and brackets designed to segregate, route and protect fiber optic and high performance copper cabling. They are suited for data center applications where cable is routed from distribution areas to equipment cabinets or racks. They are used in Telco Central Offices to route fiber optic jumper cables between fiber distribution frames and equipment bays. They can be deployed over the racks or in approved under floor applications. Available standard colors include yellow, orange and black.
|
|
The use of industrial metal trunking is required for difficult ambient conditions. The duct protects the cables from the atmosphere and impacts and also provides an electromagnetic shield.
Splice bars, captive clips, 90° and 135° angled bends, concave and convex, T's, cruciform junctions, separation and coupling corners, end blanking parts, etc., are available to complete the metal trunking system.
In addition to these various elements, patented systems such as rapid installation equipment supports and cable fasteners are available.
|
|
|
GBRS series of metallic Trunkings. Specially recommended for applications requiring a high electromagnetic and mechanical protection. suitable for fibre-optic cables. Height : 25,50,75,100 mm Widths : 50 to 500 mm. Special reinforced heavy duty series for car industry and processes.
|
|
Rigid chutes allowing, thanks to their modularity, the realization of passage of cables and pipes in sections of 40x20 with 160x160.
Possibility of also building button boxes.
|
|
|
|
|
|
Underfloor ducts
Thanks to the modern architecture of office buildings and the present tendency to use glass for the building fronts, underfloor ducts and systems to imbed in concrete are enjoying a new boom. The fact that they need a limited layer of concrete, is also an important advantage especially for buildings with several floors.
Our ducts are made of steady sheet steel, to fulfill the quality and EMC requirements. Thus the installation perfectly suits future requirements. The visible elements such as connecting boxes are conscientiously manufactured. Their quality and ageing stability are well-appreciated.
Coverable floor ducts
By planning a future-orientated building and thinking about its life cycle, the possible changes of use requirements have to be taken into account. New requirements often involve new technical adaptations which allow the costst of coverable floor ducts to be written off.
The recent modifications of our range of floor ducts are focused on the ease of installation. Changing the layout of the rooms will be a pleasure for the end user.
|
|
|
|
|
|

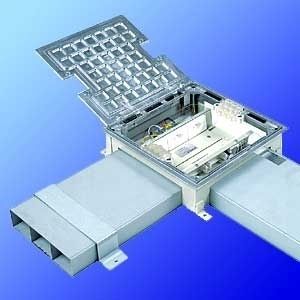

Screed embedded trunking system
The most frequently used system excels through variable application possibilities, which are simple to use. Junction boxes are interconnected via underfloor trunkings. They provide a structured supply of power, data and telephone services and offer the possibility to access cables coming out of the floor. A big range of different trunking cross sections ensures an optimum adaptation to the respective application. Afterwards, the screed is laid so that it is flush with the top edge of the junction boxes. Depending on the condition of the underground (mostly bare concrete floor) boxes with pre-punched trunking inlets completely made of sheet steel or junction boxes with flexible casing and factory-made footfall sound insulation can be used. Both types of junction boxes allow a stepless alignment via set screws accessible from the top. After the screed has been laid, the underfloor trunkings are invisible. Now, supply units or cassettes including outlets and data processing technology can be installed in the junction boxes.
|
|
Trunking system in concrete
Functionality:
As the name discribes - this trunking system will be integrated into the bare concrete floor, i.e. cast-in.
No easy task, as the times are becoming shorter between laying of the lagging, to laying of the core iron and casting of the bare floor.
But according to the popular saying of the technicians and engineers - won´t work - is not possible. You can be sure with Electraplan Solutions the right partner be chosen as well as for completion of tricky job definitions.
Trunkings and boxes are tightly rastered.
In-the-concrete boxes are available either for subsequent additional screed laying or without subsequent screed laying.
|
|

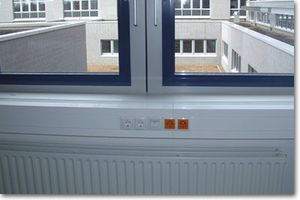

Under-window ducts
Thanks to our experience and know-how, our line of under-window ducts offers an interesting choice of products, well-known on the Swiss market.
For the material, we have selected sheet steel. Some of its advantages are for example the flexibility of dimensioning and the protection against electromagnetic disturbances. Under-window ducts can be supplied in any desired colour and therefore perfectly be integrated into the room architecture.
Under-window ducts represent an important part of the complete solutions offered by Woertz for the intelligent cabling of buildings. As design elements, they give the required touch to the room - chrome steel products or the complete ducts for example. As clever purpose-built products, they allow an easy and flexible cabling when associated with our flat cable systems.
|
|
