The standard automatic tube filler
The Unipac U 2060 is a 8-station modular and innovative automatic tube filler with a compact and robust design for versatile batch production of semi solids, mainly used for small and medium sized production volumes. The 2060 offers fast change over times which allow an easy and efficient product change. It is easy to clean and will run all sizes and styles of tubes in aluminum, polyethylene or laminate.
Features
- Modular tube loading systems
- Fast change over of contact parts
- Technically advanced folding and sealing groups
- Easy-to replace upper head
- Quick size change over
|
|
|
IWK´s tube filling machine program offers round table and diagonal track machines. As the renowned market leader in the field IWK Verpackungstechnik supplies the appropriate scope of packaging systems from standard machines to custom tailored complex packaging solutions. Direct, compact combinations with downstream IWK cartoning machines make for an efficient production.
|
|
NM 602
Nordenmatic 602 is very cost effective filler providing many features as standard. The design of the machine is ergonomic and easy to handle and maintain for operators.
NM 602 can be equipped with two-colour co-extrusion filling, Design-A-Seal® , Scoop Seal® And Euroslot, which means that the filler is very flexible, and therefore suitable for different product segments. The filling accuracy is excellent compared to competitors tube fillers in this speed range.
NM 602 can be equipped with all Norden tube feeding systems except Norden robot feeder.
Production capacity: 60 tpm
Filling volume:1-300 ml
Tube length(std):50-250 mm
Tube diameter:10-50 mm (PE), 10-50 mm (AL)
Design-A-Seal ®and Scoop Seal®: Available as option
Infeed system: Hopper infeed, store magazine NSM 180 or cassette
|
|
|
|
|
|
NM 5002S
Modern technique combined with Norden´s long experience has made it possible to build one of the fastest tube filling line in the world.
The NM 5002S is a five head filler with a maximum output of 500 tubes per minute and is suitable for handling of plastic and laminated tubes with diameters ranging from 19 to 38 mm.
Two robots synchronised with each other feed the tubes to the machine. Several functions in the tube filler are servo driven, such as the main drive, the tube transport system, the filling pumps, the lift at filling, etc. The machine is prepred for two or three colour co-exstrusion filling.
The transfer of the filled tubes from the NM 5002S to the cartoner NP 5002S is made by a servo driven pick and place unit taking five tubes at a time by the cap first. The servo driven main motors of the two machines are synchronised by an "eletric shaft".
Production capacity: 500 tpm
Filling volume: 1-200 ml
Tube length: 50-200 mm
Tube diameter: 19-38 mm
Design-A-Seal®: Available as option
Infeed system: Robot
|
|
|
|
|
|
NM 902
The Nordenmatic 902 is a compact tube filling machine for production outputs of up to 100 tubes per minute. The machine is in robust design with the indexing gear in closed oil bath casting and all vital functions mechanically.
More features on NM 902:
28 tube holder links as standard. Assures easy installation of options, such as combination beam, multi colour ...
Production speed of 100 tubes per minute depending on the tubes size and type of product. The machine is designed for a mechanical speed of 110 indexing per minute.
Prepared for immediate or future servo driven pump system.
Easy to clean machine table with a stainless steel sheet protecting the mechanical drive system below the table.
Improved design of the servo driven lift at filling function (option).
All pneumatic controls are easily accessible without stopping the machine.
Norden EasyWare based on ELAU electrical control system with separate touch screen operator panel.
Production capacity: 100 tpm
Filling volume: 1-300 ml
Tube length(std): 50-250 mm
Tube diameter:10-50 mm
Design-A-Seal® and Scoop Seal®: Available as option
Infeed system: Robot, store magazine, hopper infeed or cassette
|
|

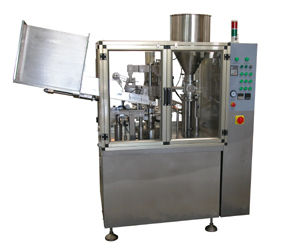

Automatic tube filling and closing machine for metal, plastic, polyfoil and laminate tubes with cassette infeed system.
Designed and constructed according to the highest technological standards to guarantee the maximum productivity and quality.
Designed according to G.M.P. standards and therefore suitable for sterile rooms and laminar flows.
Fast size changeover without tools.
Mechanical dose adjustment or servo motor drived (upon request).
The type of filling nozzle supplied depends on the product to be filled : available nozzle types are shut-off and blow-off for an easy cleaning. Cut-off, combination of blow-off and cut-off or valve-nozzle.
Tube Bottom-up filling . A mechanical lifting mechanism or run by a servo motor (upon request) controls the lifting and descending of the tube according to the fill product characteristics.
Excellent access for cleaning and maintenance.
|
|

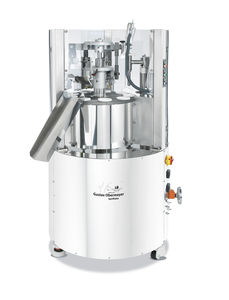

Semiautomatic tube filler for pharmaceutical, cosmetic, chemical and foodstuff products.
Output:
Up to 30 tubes/minute for aluminium, laminate, polythene and polyfoil tubes, depending on product viscosity, filling volume and operator ability in the manual feeding and orientation of the empty tubes.
The dosing unit can be positioned outside the machine frame by turning the hinged support 90° and, using the foot pedal, can fill jars, bottles and various containers.
Closing unit for aluminium tubes performing both normal and double fold – fold finishing smooth or knurled.
Hot jaws or hot air sealing unit for polythene or laminate and polyfoil tubes. Seal finishing smooth or knurled.
|
|
AUTOMATIC TUBE FILLER MOD. CD150/CD180
Automatic tube filler for pharmaceutical, cosmetic, chemical and foodstuff products.
Output:
CD150: up to 150 tubes/minute CD180: up to 180 tubes/minutefor aluminium, laminate, polythene and polyfoil tubes, depending on product viscosity and filling volume Electrical controls by PLC. Colour touch screen operator interface. CD150: fixed dosing nozzle with tube lifting during filling. CD180: adopting servo motor technology Closing unit for aluminium tubes performing both normal, double and saddle fold fold finishing smooth or knurled. Hot jaws or hot air sealing unit for polythene or laminate and polyfoil tubes. Seal finishing smooth or knurled.
|
|
|
The tube for stacked crisps, biscuits or crackers is an attractive packaging option for all manufacturers wanting to differentiate their product from the masses at the point of sale. The tube offers ideal opportunities to present your product optimally to the market. The tube’s shape can be chosen individually. The product is perfectly protected and the tube comes with a resealable lid.
|
|
