A large range of flow meters ideal for hydraulic applications that require a large turndown ratio, high accuracy, and low pressure drop. Range from 1 - 1500 lpm. Pressures up to 480 bar. Pressure test point and additional sensor ports included as standard. Available with 4-20mA, 0-5V or Pulse signal output.
|
|

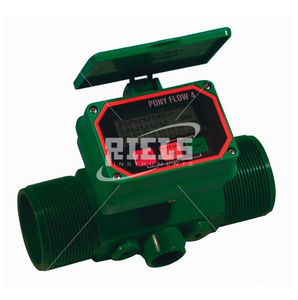

A meter for delivering low viscosity fluids with a turbine measuring system. Easy to install, in line or at the end of a
delivery pipe, equipped with an easy-to-read, compact screen.
The meter can be installed directly onto the nozzle for
convenient, on-the-spot reading of the quantity delivered.
Thanks to its strong casing and a sealed plug-in electronic card, this sturdy meter can be used in practically all conditions.
The card can be rotated for easy display reading from all angles.
Turbine measuring system.
Reinforced polyamide body.
Polypropylene turbine.
Pulser type signal: single channel,
reed switch.
Electronic card with LCD display:
Partial 5 figures from 0.1 to 99999,
Total 6 figures from 1 to 999999.
Total resetting available.
Flow indication.
Batteries: n. 2 batteries size AAA
|
|
Available Temperature Range: -400°F to +350°F
continuous (to +400°F intermittent heat).
End Fittings: MS flared and flanged styles are
recommended. Other types available on request.
Bearing Styles: Ceramic hybrid ball bearings sizes 1¼”
through 12”. Stainless steel ball bearings sizes ¼” through
1”.
Materials: 316 stainless steel standard. Consult with
applications group for corrosive applications. Broad material
list available.
*** Linearity is density-dependent for a given meter.
Consult factory for details.
|
|
Low cost.
· Outstanding accuracy.
· Provides wide flow ranges (10:1 to 100:1 turndown ranges available).
· One piece 316/316L S/S Construction for most pressures.
· For use with unique Hoffer high pressure 316/316L or carbon steel mating flange kits,
supplied complete with SAE J429 Grade 8 high yield strength bolts and "O" rings.
· Operate over a wide range of temperatures.
· Sizes 1/4" through 2". Pressure ratings of 3,000, 6,000, 8,000, and 10,000 psi available
for most sizes.
· Larger sizes and pressures available upon request. Contact factory.
|
|
OUTSTANDING FEATURES
· Low cost.
· Outstanding accuracy.
· Provides wide flow ranges (10:1 to
100:1 turndown ranges available).
· Wide variety of process connections
available.
· Wide selection of construction
materials.
· Operate over a wide range of
temperatures and pressures.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
The flowmeter pickup coil senses
the motion of the rotor and converts it
to a pulsing electrical signal which is
of a discrete digital nature. Three
basic pickup types are offered for use
with the MF Series which will satisfy
standard electrical interface
requirements for turbine flowmeters.
|
|
|
First developed in 1957, NUFLO turbine meters are both rugged and field-proven. This key product line has grown and developed alongside the requirements of the international oil & gas and process control industries. Today, NuFlo™ turbine meters have an unsurpassed reputation for withstanding severe environmental punishment while maintaining operational and measurement integrity.
|
|
|
FTB790 Series turbine meters with microprocessor-based electronics offer a durable, compact, high precision fluid measurement device, with total and rate indication. Information is clearly displayed on a large 6-digit liquid crystal display with two-point floating decimal for totals from .01 to 999,999. All operations are easily performed with two buttons for simplicity. The basic unit and display are powered by two lithium batteries, providing up to 4000 hours of actual use. Automatic “on” and “off” save battery life. Manual “on” allows view of the display on demand. Cumulative total, batch total and rate of flow are standard. A fifteen-point field calibration curve can be stored in memory. The turbine meter can also be ordered without display electronics. A special pulse output model (FLSC790-ND-P) must be ordered to obtain an open collector current sinking output operated on 9 to 35 Vdc. The output is a square wave pulse with a three-wire connection.
|
|
1MX = Magnetic pickup coil with 1” riser on meter body for mounting of
enclosures and electronics.
1MX3/0=Magnetic pickup coil with 1" riser and enclosure Class I, Groups C & D.
PED-CE =PED-CE mark required for Europe requires the operating temperature and
pressure be given and will be marked on the housing.
CE = CE mark required for Europe.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
Hoffer inline turbine flowmeters are
velocity measuring devices, which is
to say they measure the average
velocity of a fluid flowing through
the body of the meter. See
Illustration 1 for details on the
construction of the Hoffer inline
turbine flowmeter. Mounted within
the body of a Hoffer liquid turbine
flowmeter is a vaned rotor.
|
|
Low Volume Rotating Vane Flowmeter DPL
Low Volume Rotating Vane Flowmeter DPM
Turbine Wheel Flowmeter DRS
Low Volume Rotating Vane Flowmeter DTK
Low Volume Turbine Wheel Flowmeter SFL
Electronic Low Volume Flowmeter KFF
Micro Flow Rate Measuring Transducer LFM
Rotating Vane Flowmeter DRH
Rotating Vane Flowmeter DRG
Turbine Wheel Flowmeter DPE
Turbine Wheel Flowmeter DRB
Rotating Vane Flowmeter/- switch /- counter DF
Rotating Vane Flowmeter/- switch DFT
Paddle Wheel Flowmeter/- counter/- batcher DFB
Turbine Wheel Flowmeter / -counter EDM
High Precision Turbine Wheel Flowmeter PEL
Turbine Wheel Flowmeter TUV
Turbine Wheel Flowmeter TUR
Ring Piston Counter DRZ
Oval Gear Wheel Flowmeter OVZ
Screw-Spindle Flowmeter OME
Gear Wheel Flowmeter, aluminum KZA
Screw-Spindle Flowmeter OM..
Gear Wheel Fllwmeter DZR
Universal Indicator ADI
Digital Panel Indicators DAG
Universal Batch Controller ADI-Z
Industrial Batcher, Counter, Flowindicator DAG-AXI
Frequency Transmiter FMU
|
|
|
|
|
|
VOLUTRONIC® - that means high-dynamic, precise volume and flow measurements, evaluated according to the application - from a simple display unit to an intelligent micro-controller solution.
The basis for all this is the KRACHT gear type flow meter. This flow measure product presents the successful result of our long-experienced engineers. The sophisticated tooth system geometry in connection with application-specific bearings are made for the gear type flow meter being an absolute "All-rounder". The gear type flow meter covers a wide medium range: to go from hydraulic oil to printing ink, from gear grease to water based lacquer. The highly-efficient KRACHT electronics take the signals given by the gear type flow meter and ensures that processes are exactly monitored, regulated and controlled.
For example, in process technology as micro-controller for metering and mixing systems, or as flexible measuring and recording electronics for differentiated applications in test bench technology. KRACHT know-how guarantees functional solutions - standardized and optimized for application.
|
|
|
|
|
|
...disturbance insensitive and long-lived!
The turbine flow sensors of the product line Turbotron are sensors for flow rate measurement or dosing applications for liquids. Through its especially compact type, its very wide measuring range and its convincing precision of measurement, it has an almost unlimited application.
Function
The liquid flowing into the Turbotron is divided by the guiding blades in four split beams. These hit the rotor from four directions and put it in motion. The uniform loading of bearing from four sides causes the forces to cancel themselves out for the most part and wear is reduced to a minimum.
The extremely hard bearing materials, sapphire and hard metal, ensure in addition an extraordinary life expectancy.
The rotor rotation rate is now converted into an electrical pulse signal (frequency):
VTH and VTP are equipped with rotors which are fitted with magnets. A Hall effect sensor recognizes the rotation of the rotor.
VTI has stainless steel pins in the rotor. An inductive proximity switch detects the rotor rotation.
In both cases, a flow-proportional frequency signal (square wave signal) is available.
|
|
|
First developed in 1957, NUFLO turbine meters are both rugged and field-proven. This key product line has grown and developed alongside the requirements of the international oil & gas and process control industries. Today, NuFlo™ turbine meters have an unsurpassed reputation for withstanding severe environmental punishment while maintaining operational and measurement integrity.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
|
|
|
|
SIKA’s VTR turbine flow sensor allows you to determine precisely, dependably and easily the flow rates of different liquids, such as water and other low viscosity liquids, undert he most severe conditions. The VTR sensor is particularly robust and, due to the wide range of nominal diameters and five different pick-ups, can cope with even the most severe conditions.
How it works
The VTR sensor consists of the measuring turbine and a pick-up mounted on the outside. The liquid flows into the measuring turbine and causes the rotor to move. Due to the characteristic internal diameter the speed of rotation is directly proportional to the flow rate. The moving rotor blades are detected by the pick-up and this is converted into a pulsed signal proportional to the flow rate. The characteristic variable is the K-factor (pulses per litre) which is specific to each measuring unit, is determined by calibration and specified on the name plate. A five point calibration report can be supplied on request.
|
|
We are proud that you have selected a Hoffer Turbine Mini-
Flowmeter, the finest precision flow transducer on the market.
The Hoffer MF Series of Mini-Flowmeters are designed to meet the
need for a high quality low flow measurement device for service in
low to moderate viscosity clean liquids and for gas applications.
|
|
Hoffer flow control
Controls turbine flowmeters
Of all the various types of flow transducers available to industry today. None are so universally applicable as turbine flowmeters. They continue to be the most common way to measure flow electronically and have the ability to measure available upon request offering detailed, technical information.
|
|
OUTSTANDING FEATURES
· Low cost.
· Outstanding accuracy.
· Provides wide flow ranges.
· Wide variety of process connections
available.*
· Operate over a wide range of
temperatures and pressures.
· Exclusive use of hybrid ceramic ball
bearings provide superior life.
|
|
This multi-range radial flow turbine meter uses a low inertia turbine supported on robust sapphire bearings in a chemically resistant housing. Ten flow ranges, a choice of "plug in" end connection fittings, and two styles of pulse detection system make this meter one of the most flexible available. The unit has individual traceable calibration, and can be considered as simple apparatus when placed in a hazardous area.
The unit can be configured with fittings and electrical connections to suit OEM requirements. Particular advantages include a wide flow range, long bearing life and in-line design. Output is via a pulse, which can be monitored by simple electronic systems.
|
|
Derived from the FSC Series, the F2000 Quad
Series of fl ow sensors utilizes two fl ow transducers
which are 90-degrees electrically out of phase
from each other. With the addition of a second
fl ow transducer, it is possible to monitor fl ow in
both directions. The F2000 Quad is suitable for
up-down counters that can discern the leading
and trailing edges of the quadrature signals.
Current applications include using the F2000 as
a speed-sensing device on mobile equipment.
This bi-directional fl ow sensor can be used as
a governor, sending frequency signals back to
a PLC which enable it to make the necessary
adjustments. Other functions of the fl ow sensor are
in linear applications where accurate positioning
is required.
Quad Series Turbine Flow Sensor
Provides Bi-directional Flow Rate Measurement
Viton
|
|
|
|
|
|
Litre Meter developed the Pelton wheel principle as the best to achieve accurate measurements of low flows.
A single turbine ring size is common to all Litre Meter flowmeters. The turbine rotor is based on a highly efficient 'Pelton Wheel' design. It is available in various chemically resistant materials such as PFA (Teflon)and PVDF. The rotor ferrites are sealed to make them non-wetted parts. Sapphire bearings are offered for maximum chemical resistance as standard. These provide a very low friction mechanically-robust bearing with long life characteristics.
The rotation of the rotor is sensed by an electronic system using the interaction of ferrites in the rotor tips with a pickup coil. No drag is imposed on the rotor which assists in the measurement of extremely low flows. This, coupled with the efficient Pelton Wheel design and low friction bearings gives the meter major advantages. The complete turbine ring assembly can be easily removed with the meter remaining in line if cleaning is required.
|
|
Titan manufacture flowmeters based on the Pelton wheel technique. This well proven method is the ideal way of measuring low rates of flow of low viscosity liquids. Advantages are wide flow range, good linearity and repeatability, with a compact, low-cost design. The unit can be built totally from engineering plastics, with no metallic parts in contact with the fluid monitored.
The 800, 900 and 1000 series flowmeters can measure flows from 0.05L/min to 30 L/min, or are available as simple flow switches, to alarm on flow failure, low or high flow. End connections are typically BSPF threads or hose barbs, other connections can be supplied.
|
|
|
Blancett sanitary turbine flow meters for liquids meet the 3-A standard for C-O-P (clean out of place) and S-O-P (sterilize out of place) procudures. Flow rates to 400 GPM, clamp sizes to 2.5".
|
|
|
Blancett turbine flow meters for liquids are available in pipe sizes from 1/2" to 10" and flow ranges from 0.6-3 to 500-5000 GPM. Blancett turbine meters use high-quality materials of contruction, including 316 stainless steel and tungsten carbide, to ensure high performance in rugged and aggresive environments. Blancett Model 1100 turbine meters offer +/- 1% accuracy and 0.1% repeatability, and they are rated to 350 degrees F (177 degrees C). Uses include secondary oil recovery, semiconductor, food and beverage, and pharmaceutical.
|
|
Turbine flow meters are mediate volume transmitters similar to a Woltmann's sailwheel meter. Thanks to extremely rapid response times and high resolution turbine flow meters are perfectly suitable for fast filling systems.
Due to an enormous pressure and temperature resistance turbine flow meters will also be the perfect choice for water torch systems, temperature control units, cooling circuits or painting systems, where the consumption of solvents and di-water needs to be measured.
|
|
|
Based on the proven design of the HM turbine meter, the HMP Turbine Flowmeter satisfies the specific design and performance requirements of Life Sciences applications. The HMP uses a bushing and shaft combination which makes the HMP suitable for intense sterilization processes and allows for steam blow down.
|
|
Our Proportional Velocity (PV) Meter is a flow meter that will handle problem fluids that damage other meters. While other meters may stop or be damaged by such common elements as sand, grit, stones (up to 0.25" diameter in our smallest meter), or even wood and rubber, Oilgear flow meters are products on which you can rely for unsurpassed performance.
Advantages of the Oilgear PV Meter
* Large Particle Clearance (up to 0.25" diameter in our smallest meter)
* Long Life in Contaminated Liquid
* High Tolerance to Overranging
* Readout Flexibility
* Mechanical Readouts
* Electrical / Electronic Readouts
* Calibration
* Accuracy
* Repeatabilit
|
|
|
|
