*Watt: 400W, 500W, 600W, 1500W, 3000W, 5000W; Package: DO-41,DO-15,DO-27,R-6.

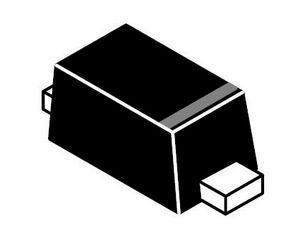

*Watt: 200W, 400W, 600W, 1500W, 3000W, 5000W; Package:SOD-123, SMA, SMB, SMC
-Eris employs strict quality control and various reliability tests by our precision equipments allowing us to provide the high quality products to our customers.
-If you need favorable quotation of TVS diode or more information, please contact with Ms. Cindy Lin through her email address: cindy.lin@eris.com.tw
Looking forward to giving you support someday soon!
Best Regards,
Eris Technology Corporation
|
|

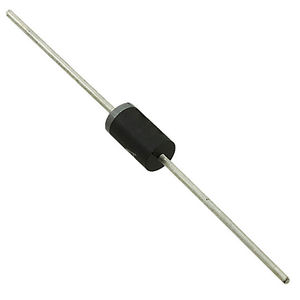

600 Watts Transient Voltage Suppressor Diodes
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-0
- Exceeds environmental standards of MIL-STD-19500
- 600W surge capability at 10 x 1000 us waveform
- Excellent clamping capability
- Low Dynamic impedance
- Fast response time: Typically less than 1.0ps from 0 volts to VBR for unidirectional and 5.0 ns for bidirectional
- High temperature soldering guaranteed: 260oC / 10 seconds / .375”,(9.5mm) lead length / 5lbs.,(2.3kg) tension
Mechanical Data
- Case: Molded plastic
- Lead: Axial leads, solderable per MIL-STD-202, Method 208
- Polarity: Color band denotes cathode except bipolar
- Weight: 0.34gram
|
|
