Ultrasound level sensor SIMATIC PXS
Recording of fill levels from a distance of 3 cm to 10 m
Our sonar proximity switches sense objects of varying materials, shapes, colors or consistencies with absolute precision, flexibility and reliability.
The ultrasound level sensor is proper for level applications in containers due to its design and its technical constructions. The devices feature two switching outputs to which different distances can be assigned. This allows, for example, the minimum and maximum fill level in a tank to be evaluated. Regardless whether the objects are liquid, solid, powdery or even transparent.
|
|
The Mono-Micro models are mono-block, 2-wire Ultrasonic level sensors. The leading model is MonoScan with an exceptional range of 15 meters for its category. The MicroScan model is a 5 meter range product with an unbeatable price offering.
Monoscan
* Extended range of 0.25 to 15 meter (0.8ft to 49ft)
* For measuring Liquid, Open channel flow and Solids
* Integral LCD display, keypad
* 4-20mA output
* Automatic compensation for different environments
* Approved for installations in hazardous areas (Ex)
* Simple to install and configure
* Direct installation on tanks, vessels and reactors
MicroScan
* For small tanks and calm liquid environments
* Maximum range of 5 meters / 16ft (liquid) (extended range option)
* 4-20mA output
* Modbus over RS-485 option
* Optional four-digit LCD and remote display (80 meters)
* Direct installation on top of tanks
* Hand held programming unit
* Perfect for horizontal diesel oil tank measurements
* Fast setup, configuration and commissioning
|
|
|
|
|
|
Short ultrasonic pulses between 10 kHz and 70 kHz are emitted by the transducer. These pulses are reflected by the product surface and received again by the transducer. They spread with sound velocity and the time from emission to receipt of the signals is proportional to the level in the vessel.
Latest microprocessor technology and proven ECHOFOX software select the level echo from a number of false reflections and measure it exactly.
Just by entering the vessel dimensions, a level-proportional signal can be displayed. An adjustment with emptied and filled vessel is no longer necessary!
Thanks to different emitting frequencies, levels can be detected in a measuring range between 4 m and 70 m. Optional swivelling holders enable an ideal positioning of the sensors in the solid area.
Fluctuations of the product compositions or complete product changes do not influence the measurement results. A new adjustment is not necessary.
Advantages
- Non-contact
- Independent of product characteristics
Applications
- Level measurement of solids and liquids
- Good chemical resistance
|
|
GuardScan50 is a not-contact continuous, ultrasonic level sensor based on our high performance SmartScan50 equipment.
GuardScan50 implements an innovative software algorithm for detecting fuel theft from a tank and for identifying tempering activities with the sensor.
GuardScan50 makes the most of your investment in a security system by adding new features to it
GuardScan50 interfaces any zone-based security systems supporting dry-contacts inputs
GuardScan50 provides four new virtual-zone alerts:
1. Fuel theft
2. Stolen sensor
3. Full Tank
4. Empty Tank
GuardScan50 exploits existing communication links whether wired, wireless, dialup, RF or cellular
GuardScan50 is easy to configure using any PC type platform
See SmartScan50 data sheet for additional technical information and call for pricing information.
|
|
SolidAT provides practical cost effective solutions for wide area monitoring of assets based on our range of level meters. We focus on management of remote fuel tanks, water reservoirs, sewage flow, river level states and similar assets.
Providers of remote monitoring systems usually concentrate on communication links and control center software. These providers sometimes neglect the physical measurement aspect, which in many cases determines the quality of the complete solution. In contrast, SolidAT leverages its core expertise in level measurement to expand its offering for wireless monitoring. In our solutions, we exploit existing communication infrastructures such as cellular networks (GSM) and we propose simple-to-use local software packages for management.
|
|
Use this versatile instrument to continuously measure, display, transmit and control liquid level in storage tanks or pumping stations, or to monitor and totalize Open Channel Flow through any flume or weir. Mount the non-contacting ultrasonic sensor above the liquid being measured and install the watertight Electronics enclosure nearby.
- Measure Level or Open Channel Flow
- User-Friendly Calibration System
- Isolated 4-20mA (1000 ohm)
- False Echo Rejection
- 3 Programmable Control Relays
- Electrical Surge Protection
- Intrinsically Safe Sensor Option
- Self-Testing
|
|
|
|
|
|
The Acu-Trac Smart 485 Level Transducer is an economical level sensing solution for storage containers with depths up to 1.9 meters (76 inches) for gasoline and 2.5 meters (98 inches) for other media.
The Acu-trac Smart 485 monitors and processes liquid levels in real time. There are two message formats available on the RS-485 bus.
The Smart 485 family is chemically compatible with a wide variety of liquids - gasoline, diesel fuel, oils, urea (Adblue), water, wastewater, ethanol, hydraulic fluid, and engine coolants. It was designed for non-contact liquid level or industrial process control applications to 85C. The Smart 485 can be used in general industrial, heavy duty vehicle, diesel engine generators, and mining, agriculture, water and waste water markets.
The Smart 485 was designed to allow the user maximum flexibility with its user programmable features. Accurate level volume measurements are dependant on the shape and dimensions of your tank. The Smart 485 is programmable to allow for non-linear flexible tank profiling.
Other user programmable selections enable the Smart 485 to be configured for a wide variety of response times, sensing ranges and full and empty limits. The digital filtering can be used to eliminate errors due to fluids sloshing in mobile tanks. The gauge drive output can be used to specify full and empty endpoints that best suit your application needs.
The Smart 485 meets NEMA4 standards and has three different electrical outputs choices to best meet your application need - 4-20mA; ratiometric voltage (0.5 9.0V); and non-ratiometric voltage (0.5 9.5 V).
|
|
Sensortechnics is a leading manufacturer and distributor of a wide range of sensors and fluid control devices. The product portfolio includes basic pressure sensors, rugged transmitters, submersible level sensors and customised pressure sensing systems from 1 mbar up to 1000 bar as well as liquid level sensors and switches, flow, oxygen and force sensors. Additionally, Sensortechnics offers ultrasonic air bubble, air-in-line, liquid level and fluid monitoring detectors. Fluid control devices include miniature solenoid valves, diaphragm pumps and electronic pressure controllers.
Sensortechnics has more than 25 years of experience in providing highly customised sensing products and in the development of complex integrated fluid control systems for OEM customers worldwide.
|
|
|
|
|
|
Features:
-Truly Non-invasive sensing technique
-Sensors bonded to outside of tank base and side wall
-20 point calibration table
-Optional local display and/or output to higher level system for up to two tanks.
-ATEX approved versions for hazardous areas available.
-4 digital outputs for high and low alarms.
Benefits:
-Fast, reliable and accurate tank contents measurement.
-Easy installation - no tank break-in, easy retrofit to existing tanks.
-No down-time during installation.
-No moving parts - little or no maintenance required.
Applications include:
-Beer/wine/cider tanks
-Refrigerant receivers
-Fuel tanks
-Distilled spirits vats
-Pure water tanks
-Liquid chlorine tanks
-Acids/solvents tanks
Two small ultrasonic sensors are clamped or bonded to the outside walls of the vessel - one on the bottom of the vessel and the other on the side, to compensate for variations in density. Signals from the transducers are fed into the processor and either displayed locally if that option is selected or output to a separate system. One processor is required per two vessels. The system calculates the height and volume of the liquid in the tank from the time taken for the signal to be received from the liquid surface.
|
|
The UCL-510 offers an innovative, non-contact ultrasonic level sensor with no moving parts built for challenging fluid measurement. This accurate and reliable sensor is built for general purpose, small tank applications 49.2" (1.25m) or less and offers switch, controller and transmitter capabilities in one multi-function transmitter. The UCL-510 is suited for corrosive and dirty applications and is virtually maintenance free and reduces tank system hardware. The UCL-510 combines 4 relays, 4-20mA output and pump/valve control in one small sensor. The UCL-510 offers a total solution for fluid handling and automation.
Applications:
Water and Waste Water
Control Automation
Chemical Feed
Food and Beverage
Acids, Inks, Paints
Slurries
|
|
SSI Technologies Inc. offers two families of ultrasonic liquid level sensors - Fluid-Trac and Acu-Trac.
More accurate than resistive float senders, reed-switch tube sensors, or capacitive tube senders. Accuracy of level volume measurements is dependant on the tank shape and irregularities.
Fluid-Trac and Acu-Trac liquid level sensors are programmable to allow for non-linear flexible tank profiling. Tank irregularities are handled by our software using tank strapping profiles. Digital filtering helps eliminates errors due to liquids sloshing in mobile tanks.
More reliable - no moving parts. Resistive float senders have a wiper that slides across a resistive strip that with time can wear out and cause intermittent or complete loss of the signal.
Mounts to the same opening as the resistive float sender but does not protrude into the tank. Chemically compatible with many liquids such as gasoline, ethanol, diesel fuel, oils, engine coolants, fresh water, waste water, urea (AdBlue).
|
|
|
Pulsar's innovative dB range of transducers has taken ultrasonic level measurement into a new era. Unlike the high voltage, frequency dependent transducers of other manufacturers, which require special, protected interconnect cables, or low powered transducers built with intrinsic safety rather than performance in mind, the dB series combines low electrical power that meets intrinsic safety requirements with extraordinary high sonic power to give range and performance.
|
|

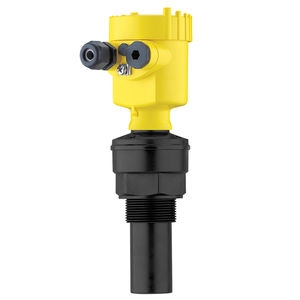

Ultrasonic sensor for continuous level measurement
Especially suitable for measurement of solids with optional swivelling holder for optimum adaptation to the vessel geometry and material cone
All advantages in an overview:
- transducer of PA with stainless steel diaphragm (316L) and integrated temperature sensor for correction of the running time
- sensor in compact version or with separate transducer
- accuracy 10 mm
- ECHOFOX signal processing with Fuzzy-Logic
- adjustment with PLICSCOM, HART handheld or PC
- instrument from the plics family
Measuring range: liquids 1 ... 25 m; solids: 1 ... 15 m
Process fitting: flange with optional swivelling holder
Process temperature: -40 ... +80 C
Process pressure: -0,2 ... +0,5 bar (-20 ... +50 kPa)
|
|

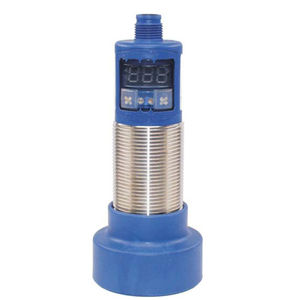

UFAR Ultrasonic Analog Sensors, chemically resistant
- Type: UFAR
- Measurement ranges: Sensing range 100...1000mm
- Type of protection: IP65
- Connecting head / Material: 86 x 149 mm, Stainless steel
- Output signal: 4...20 mA (20...4 mA) via M12 plug
|
|
|
The ITC-9071 92 kHz air transducer is designed for a variety of ultrasonic sensor products. Its narrow beam makes it a good choice for demanding proximity, position, and level sensor applications. It can be used as a transmitter, receiver, or both as needed, and is equipped with an aluminum housing.
|
|
For liquids
Contact 1 electronic switch
Connection G 1male
Material st. st.
Max. pressure 70 bar
Max.temperature 125C
|
|
Sludge Finder - effective sludge level detection and control :
Sludge Finder is a reliable, effective sludge interface monitor. A single controller may be used to measure up to four tanks. Sludge Finder uses an underwater acoustic sensor to provide continuous, reliable sludge level detection that lets you reduce pumping, optimise dosing and gives staff time to concentrate on other things.
|
|
Ultrasonic Liquid Leveller
The Link Instruments ULLC2001 Ultrasonic Level Comparator is one of the most advanced Liquid Levellers on the market. Both extremely easy to use and micro-pic controlled for greater precision in measurement. The transducer is placed against the cylinder body 120mm below the calculated liquid gas level, (normally mathematically calculated). While retaining the transducer at this point the Comparator's ultrasonic level is set to around two or three divisions / bars-, by use of the 0-10 Tune Control. This gives a reference level against which the signal at the gas level / air interface is compared.
By slowly sliding the transducer up the cylinder body, you will arrive at the gas level / air interface. At this point the signal will rise sharply and this is visible on the Comparator usually as all 16 divisions / bars- appear and is due to the enhanced propagation of the Surface Acoustic Wave (SAW), across the liquid gas.
|
|
FLOMOTION 600B Ultrasonic level meters from Flomotion Systems are designed for tank level or contents measurement of liquids or bulk solids.
FLOMOTION 800C Explosion Proof
Ultrasonic level meters from Flomotion Systems are perfect for tank level or contents measurement of liquids or bulk solids.
FLOMOTION 1100 Ultrasonic level meter
Excellent for tank level or contents measurement of liquids or bulk solids.
FLOMOTION DR5000 SINGLE & DUAL PEN CHART RECORDERS Offers the best of both worlds, ink cartridge or thermal printing.
|
|
MUW-Mini Ultrasonic Level Monitor
The MUW-2000, an ultrasonic level monitor, is a small but high-cost performance level monitor in use of ultra sound. It has a compact and clean body made of polypropylene. It is suitable for level management of pure water and/or chemical substances. 4 to 20 mA DC current output, two alarm output for high and low level detection as well as RS232C output for maintenance are standard outputs. MUW-2000 enables you simple and easy level monitoring and controlling.
|
|
