Kinney & M-D Pneumatics vacuum boosters from Tuthill Vacuum & Blower Systems provide additional capacity and vacuum range to vacuum pumps.
|
|

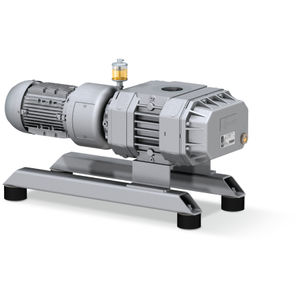

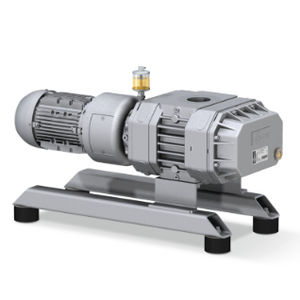

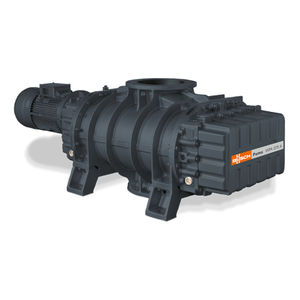

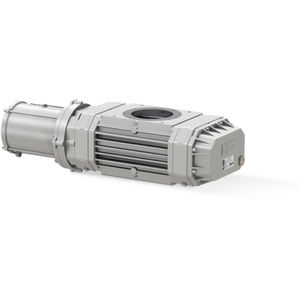

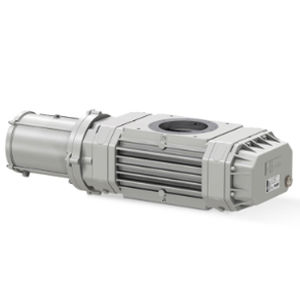

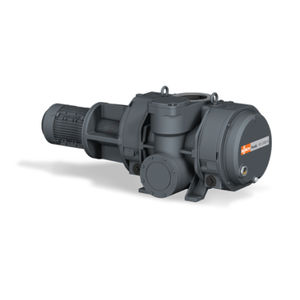

The EH mechanical booster pump, based on the simple Roots principle, remains the favourite pump for applications where high pumping speeds are required for pressures in the region of 0.01 to 10 mbar. This pump must always be backed by another pump, which can deliver against a high-pressure differential to atmospheric pressure.
Operating at relatively low pressures, the mechanical booster pump is not exposed to the same concentrations of corrosive process media as is the backing pump, which makes it highly reliable.
|
|
|
Engineered Dry Screw vacuum systems incorporate Kinney Dry Screw vacuum pumps into complete vacuum systems with vacuum boosters, custom controls and accessories to combine high pumping speed with deep vacuum levels. Flows range to 10000 CFM (17000 m³/h) with vacuum levels to 10 microns and below.
|
|
|
Our Liquid Ring Vacuum Systems are ideal for pumping wet gas mixtures at low pressures. A wide variety of configurations are available, incorporating Kinney or atlantic fluidics liquid ring vacuum pumps. Performance ranges to 560 CFM (950 m³/h) in standard systems, or to 10000 CFM (17000 m³/h) in Engineered Solution Vacuum Systems.
|
|
|
Booster/Piston vacuum systems combine a rugged, oil-sealed Kinney vacuum pump with a vacuum booster to supercharge the pump, allowing for deeper vacuum or greater throughput. Performance ranges to 2000 CFM (3400 m³/h) in standard systems, or to 10000 CFM (17000 m³/h) in Engineered Solution Vacuum Systems
|
|
|
|
