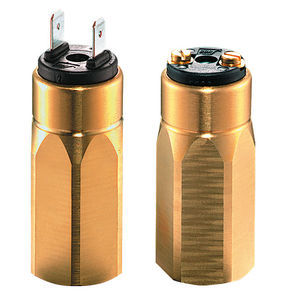

The factory set pressure switches series 901
The switching pressure can be defined at a value of between 5 mbar and 12 bar in the overpressure range and between -5 mbar and -900 mbar in the vacuum range.
The main area of use for the compact pressure switches series 901 is in monitoring filling levels and filters, as well as in monitoring overpressure, vacuum or differential pressure in closed systems. These pressure switches are suitable for liquid and gaseous media including aggressive media.
|
|
Switches, regulators and display devices permit reliable monitoring of the vacuum system. An important aspect is that these devices must be perfectly matched to the system being monitored, but this is no problem with the available spectrum of devices!
- Vacuum switches
- Pressure switches
- Combined vacuum/pressure switches
- Accessories for vacuum switches
- Measuring and control devices
- Safety devices
|
|
Electro-Mechanical Vacuum Switches
These switches use a vacuum actuated membrane to operate a mechanical micro switch. All switches can be wired normally closed or normally open. The vacuum level to which the switch operates can be set with the manually adjustable and lockable screw. The VES-02B comes with two fixing holes molded into the housing, whereas the VES-01B comes with fixings in two extended ears.
|
|
|
|
|
|
The efector 500 is based on a ceramic measuring pressure cell which converts the measured quantity of pressure into a capacitive signal as a result of the deflection of a diaphragm. A microprocessor controls the evaluation of the electrical signal. For the efector 500 the system pressure is directly indicated on the unit by an LED display.
The extraordinary mechanical characteristics of the efector 500 result from the following design features:
The measuring pressure cell is designed in such a way that the diaphragm is supported by the base in the case of overload pressure. This leads to a high strength against hidden pressure peaks at values outside the measuring range.
The measuring pressure cell consists of ceramic which has ideal elastic features thus ensuring a high long-term stability of the diaphragm.
The electronic circuitry is made in film technology, i.e. a flexible, temperature-stable and extremely resistant polyimide film is used as a carrier for the SMD components. In conjunction with a special potting compound this leads to a high shock and vibration resistance.
|
|
Do you attach special value to the durability and performance of your vacuum instrumentation? We as developer and manufacturer of vacuum transducers, gauges, vacuum meters and controllers supply products which will exceed your expectations.
Thyracont Vacuum Instruments GmbH supplies vacuum measurement and control instruments for rough to ultrahigh vacuum.
All our products are "Made in Germany"
|
|
|
|
|
|
Anyone who uses ultra-low pressure, vacuum and differential switches can tell you that they will inevitably wear down in low pressure environments, causing contact erosion, loose terminals, switch instability and leakage.
The result? Equipment failure, downtime, and productivity setbacks no busy manufacturer can afford. Fortunately, now there's an alternative-
New Solution to Ultra Low Pressure Switch Problems Helps Avoid Leakage, Set Point Instability and Contact Resistance- an innovation in switch design that combines special gold crossbar contacts with a revolutionary "all-in-one-weld" contact/terminal construction for switches that deliver reliability, long life in harsh, low pressure environments—the MAM005 line of ultra-low pressure, vacuum and differential switches.
Most important, not only do these rugged and dependable switches last longer, they're comparatively priced, no matter if you're just looking for pre-configured switches available for immediate shipping, standard switches tailored to your business needs, or custom-designed switches for special applications
|
|
Pressure Switches
Better under pressure. For years, manufacturers and operators of heavy-duty equipment have trusted Honeywell pressure and vacuum switches. They're proven under pressure, in applications constantly under attack from chemical splashes, performance spikes and other harsh environments. These switches sense a change in the pressure or vacuum, opening or closing an electrical circuit when the designated point is reached.
Honeywell offers an impressive line:
-Compact size
-Durable construction
-Enhanced set point integrity
-Customisation and modifications available
|
|
Air Logic switches interface from vacuum signals to electrical systems. The snap-action electrical switch provides a positive and reliable response. The switch operation is based on the actuation of a precision snap-acting switch acting against a diaphragm.
Maximum vacuum of 29.9" Hg. Adjustment ranges from 1" to 28" Hg. Special actuating and releasing vacuum are available on request.
|
|
|
Choose from a Wide Selection of Vacuum SwitchesVacuum Sensors, and Vacuum Valves, including Vacuum Switches for Compressed Air Powered Vacuum Generators, Digital Vacuum/Pressure Control Switches, Vacuum Leakage Sensors, Heavy Duty Electric Vacuum Switches/Pressure Sensors, and Mini-Solenoid Valves for Air and Vacuum Operation.
|
|
FIPA offers vacuum switches in various types - individually arranged to your requirements.
The Mini vacuum switch of FIPA is designed for system controlling and can be utilited in all sectors of automation by vacuum.
The benefits of the Mini vacuum switch:
> Especially dedicated for high accelerations.
> Setpoint adjustable freely manually.
> Any desired positioning possible
> Mountable directly to the vacuum cup
|
|
|
A switch design that combines gold crossbar contacts with an all-in-one-welded contact terminal construction that delivers reliability and extended life in harsh low-pressure environments. The MAM005 line of ultra-low pressure, vacuum, and differential switches can be ordered preconfigured for immediate shipment, as a standard product tailored to user needs, or custom-designed for special applications. The switches come configured with different port orientations to fit mounting requirements and come in nine different diaphragm materials. The devices can be selected to assure chemical compatibility with most mediums and reliable operation at temperature extremes.
|
|
When the set level of vacuum is reached they issue an electrical or pneumatic signal
Available in "mini" version with very small bulk
Fixed or adjustable differential according to model
Functional through the entire range of vacuum
|
|
|
Complete product range for all industrial applications. Mechanical and electronic versions include cast and cabled specifications, “Ex” approved, switches in compact designs up to 600 bar for hydraulic and pneumatic applications.
|
|
- Diaphragm or piston sensing element
- Liquids and gas application
- Steel, Brass, St. Steel materials
- 1/8" or 1/4" process connection
- Adjustable ranges from 0,05 to 400 bar
- N.O., N.C., SPDT, contact
- Faston or DIN-43650 electrical connection
- Tmax = -20°/+80°C working temperature
- Protection class IP40 or IP65
|
|
|
The ZSE1 series is a compact, vacuum pressure switch available in a single setting with hysteresis adjustment, a double setting/ double output type or an analog output type with hysteresis adjustment. The ZSE1 is lightweight and the optional plug-in connector makes wiring easy and simple.
|
|
|
Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.
|
|
The F-4200-X series vacuum to electric switch is designed for the customer with cost and space limitations, and is available in adjustment ranges from 4" WC to 30" Hg full scale. A wide variety of options including gold contacts, factory pre-set and special deadbands, make the F-4200-X series an excellent choice for the O.E.M.
|
|
| ... products without technical information |
| |
|
|
|
|
DRIESCHER - Outdoor Switch-Disconnector
Type FLa 15/97
• Rated voltage 12 kV, 24 kV, 36 kV and 38.5 kV
• Rated current 400 A and 630 A
• 1-pole and 3-pole design
Contrary to former outdoor load-break switches in which it was common practice for the arc to be extinguished in oil, with the new developed outdoor switch-disconnector FLa 15/97 arc extinction takes place in a vacuum interrupter.
Based on a patented insulating system there is also no liquid or gaseous medium required for the external insulation strength of the vacuum interrupters.
The vacuum quenching device is embedded in a weather-proof insulating housing.
This switchgear is therefore also recommended for special applications (e.g. in water protection areas).
The outdoor switch-disconnector is capable of switching on its rated current as well as its rated short-circuit making current via the main contact system.
The disconnecting process is implemented via the shunt-connected vacuum interrupters, resulting in no external arcing phenomena.
A fully developed eccentric make-and-break mechanism operates the vacuum interrupters and ensures Class M2 with regard to the mechanical strength (corresponds to 5000 mechanical operating cycles).Fefer brochure 766e
|
|
|
|
|
|
DRIESCHER - Outdoor Switch-Disconnector
Type FLa 15/97
• Rated voltage 12 kV, 24 kV, 36 kV and 38.5 kV
• Rated current 400 A and 630 A
• 1-pole and 3-pole design
Contrary to former outdoor load-break switches in which it was common practice for the arc to be extinguished in oil, with the new developed outdoor switch-disconnector FLa 15/97 arc extinction takes place in a vacuum interrupter.
Based on a patented insulating system there is also no liquid or gaseous medium required for the external insulation strength of the vacuum interrupters.
The vacuum quenching device is embedded in a weather-proof insulating housing.
This switchgear is therefore also recommended for special applications (e.g. in water protection areas).
The outdoor switch-disconnector is capable of switching on its rated current as well as its rated short-circuit making current via the main contact system.
The disconnecting process is implemented via the shunt-connected vacuum interrupters, resulting in no external arcing phenomena.
A fully developed eccentric make-and-break mechanism operates the vacuum interrupters and ensures Class M2 with regard to the mechanical strength (corresponds to 5000 mechanical operating cycles).Fefer brochure 766e
|
|
Tri-MEC vacuum contactors are mainly used for the switching of motors, transformers, capacitors in AC power lines. They can be installed in multi-stack cubicles.
A vacuum contactor comprises several assemblies such as switching mechanism including vacuum interrupters, magnetic actuator, high strength molded front cover and auxiliary devices. Stable and high operating cycle is executed by the vacuum interrupters made of high alumina ceramic tube which makes it possible to degas in a high temperature with excellent mechanical strength.
Actuating is available either at instantaneous or continuous excitation. Functions for safety in connecting and disconnecting are also provided.
Operation conditions
1) Ambient temperature : -5 to 40°C
2) Maximum temperature of 24-hour mean : 35 °C
3) Altitude : 1000m
4) Humidity : 24-hour measured average - max. 95% RH
1 month measured average - max. 90% RH
5) Applied standards : IEC Pub. 60470, IEC 60282-1, JEM 1167, KEMC 1126
|
|
|
|
|
|
Single Line Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Easy to operate
- Very Economical
- By-Pass Switch to accommodate other workholding devises
Single Line Vacuum Safety System units are used with a single vacuum source and a single vacuum chuck.
Single Line Vacuum Safety System with a Buzzer and Light Combination to alert the machine operator of a problems with low vacuum levels. These units are used with a single vacuum source and a single vacuum chuck.
Multiple Zone Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Vacuum sensor to detect current vacuum levels
- Warning alarm buzzer (86 dbs)
- Warning indicator light
- Easy and convenient 110 VAC operating voltage
Multiple Zone Vacuum Safety System units for use with routers and large multiple zone vacuum chucks. The unit indicates which zone has a vacuum leak.
Multiple Line Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Vacuum sensor to detect current vacuum levels
- Warning alarm buzzer (86 dbs)
- Warning indicator light
- In-line filter with sight jar
- Easy and convenient 110 VAC operating voltage
Multiple Line Vacuum Safety System units for use with a central vacuum system and multiple machines in operation. The unit includes a vacuum solenoid valve.
|
|
| ... products without technical information |
| |
|
|
