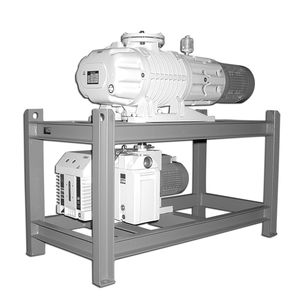

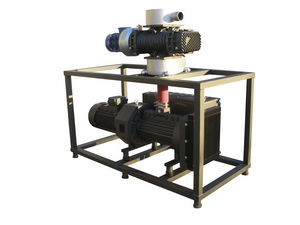

The combination of oilfree chemistry diaphragm pumps with roots pumps allows for a pumping unit series with greatly increased pumping speed and an ultimate vacuum that is improved by one order of magnitude in comparison to diaphragm pumps. VACUUBRAND roots pumping units distinguish themselves with high specific corrosion-resistance. Due to the dry, oilfree operation and high pumping speed especially in the pressure range of 50 - 0.2 mbar the roots pumping units can pump large quantities of vapour.
VARIO roots pumping units have automatic workload-dependent motor speed control. This allows for operation also at high pressure levels (> 50 mbar) with limited heat release.
|
|
|
VACUUBRAND VARIO Chemistry pumping units control pressure with pinpoint-precision by adjusting the motor speed of the diaphragm pump. They automatically detect vapour pressure and adapt the vacuum level to the process. The fast and precise adaptive control always regulates the appropriate pumping speed, regardless of installation size or gas volume. The process times are shortened by the high evaporation rate. Through continual evaporation an optimal solvent recovery rate can be achieved. The demand-responsive motor speed control significantly reduces the overall workload of the diaphragm pump. This results in unrivalled lifetimes for moving parts.
|
|

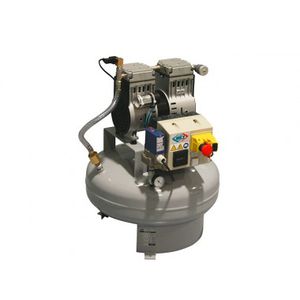

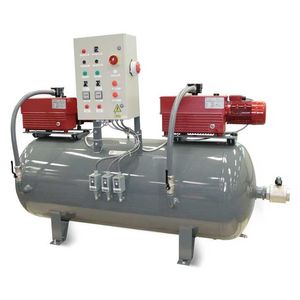

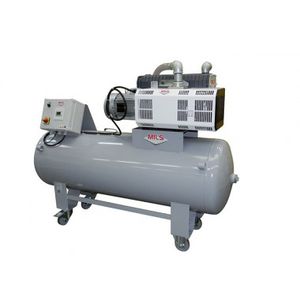

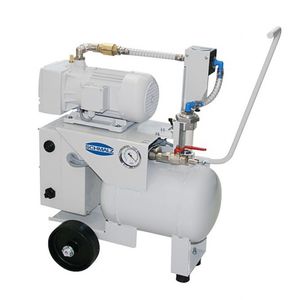

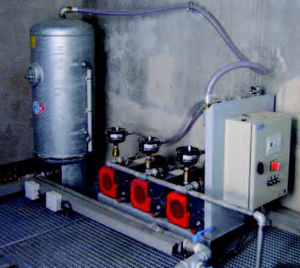

FIPA Vacuum units are compact systems for all kinds of vacuum clamping and handling work.
They consist of a safety tank, one or several vacuum pumps as well as monitoring and control equipment. The vacuum is generated in the safety tank so that it is available whenever required. An integral vacuum switch activates a pump as soon as the vacuum drops below a preset value. The unit does not consume any power when it is not in operation.
Available for horizontal or vertical installation and as safety vacuum units, for example for hospitals and laboratories.
|
|
The units of HYDROSYS series consist of a liquid-ring vacuum pump of our series TRH, TRS, TRM, TRV, of an air-liquid cyclone separator, of a heat exchanger, all units being mounted on one compact frame.
Several accessories are available to meet particular requirements of plant, of process and of maintenance, and furthermore, it is possible to design particular units, upon request, in co-operation with our Sales Office.
The HYDROSYS series can also be used to work as a compressor up to a maximum pressure of 2 bar, higher than the suction pressure by using tanks and accessories according to ISPESL standards.
|
|

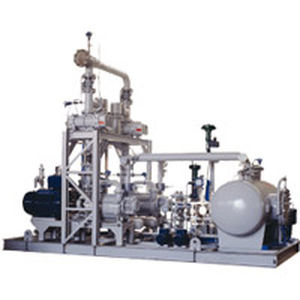

STERLING SAT - (SIHI Anlagentechnik) has for the last 30 years been successfully involved in the manufacture of high quality engineered systems for the pharmaceutical, chemical, and all other process industries.
PERFORMANCE
• Up to 100,000 m3/hr.
• 10-3 mbar up to atmospheric pressure.
WORKING IN PARTNERSHIP
Our understanding of your application and process requirements, enables us to provide the engineered solution that is right for you.
Typical vacuum generation packages include:
• Liquid ring vacuum pumps.
• Mechanical boosters.
• Gas ejectors.
• Steam ejectors.
In order to optimise a vacuum system and to reduce the amount of external involvement the vacuum units can include:
• Pre condensers.
• Post condensers.
• Heat exchangers.
• Scrubber systems.
• Separators.
Typical applications for all types of gases and vapours:
• Vacuum distillation.
• Extruder degassing.
• Vacuum drying.
|
|

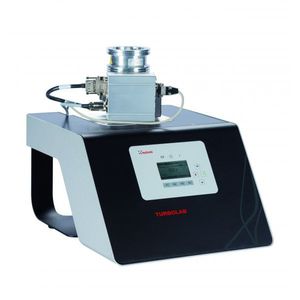

A pumping station is a combination of several vacuum pumps which are connected with valves and flanges.
We offer you the following pumping stations:
- HiCube™Turbo pumping stations
- CombiLine™ pumping stations
- Customized puming stations
|
|
|
Engineered Dry Screw vacuum systems incorporate Kinney Dry Screw vacuum pumps into complete vacuum systems with vacuum boosters, custom controls and accessories to combine high pumping speed with deep vacuum levels. Flows range to 10000 CFM (17000 m³/h) with vacuum levels to 10 microns and below.
|
|
|
Our Liquid Ring Vacuum Systems are ideal for pumping wet gas mixtures at low pressures. A wide variety of configurations are available, incorporating Kinney or atlantic fluidics liquid ring vacuum pumps. Performance ranges to 560 CFM (950 m³/h) in standard systems, or to 10000 CFM (17000 m³/h) in Engineered Solution Vacuum Systems.
|
|
|

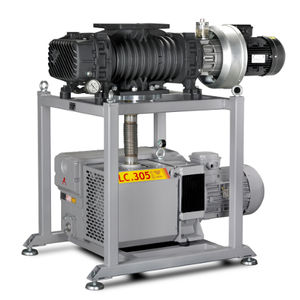

Booster/Piston vacuum systems combine a rugged, oil-sealed Kinney vacuum pump with a vacuum booster to supercharge the pump, allowing for deeper vacuum or greater throughput. Performance ranges to 2000 CFM (3400 m³/h) in standard systems, or to 10000 CFM (17000 m³/h) in Engineered Solution Vacuum Systems
|
|
General description
HINDHIVAC manufactures three models of Direct Driven Vacuum Roots Blowers model RD 150, RD375, RD 500 and RD 1450.
These Roots Pumps are compact with a very advanced impeller design for operation at maximum differential pressure around 60 m.bar. These Roots Pumps are ideal for use in Industrial Vacuum Systems where high degree of pumping speed and ultimate vacuum are desired.
Roots Pumps are specially balanced on dynamic balancing machines to ensure vibration free running at high RPM's. The perfect functioning of the roots pump with a favorable compression ratio of 1:3 & 1:10 depending upon the conditions can be achieved by selecting suitable backing pump.
|
|
|
Vac-U-Lok has a complete selection of vacuum systems to meet any need!!! The medium duty vacuum systems offering includes two units - 4.5 CFM (cubic feet per minute) vacuum system and a 10 CFM vacuum system. Our heavy duty vacuum system offering ranges from a 7 CFM unit to a powerful 460 CFM central vacuum system unit. Of course, Vac-U-Lok can custom design any vacuum system, large or small, to meet your specific requirements.
|
|
|
ANVER TT Series Transfer Tubes instantly provide air movement the moment compressed air is applied and their transfer speed and output flow can be infinitely adjusted by regulating the input pressure. Made from aluminum with a durable anodized finish, they come in a wide variety of bore sizes from 0.375” to 1” (9.5 to 25.4 mm) I.D., with air flows from 15 to 145 SCFM.
|
|
|

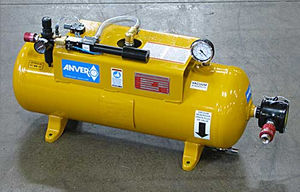

Electric and Compressed Air Powered Vacuum Pumps, Vacuum Generators and Vacuum Stations, Vacuum Valves and Switches, Vacuum Filters and Exhaust Mufflers, Air Movers and Transfer Tubes, and a wide range of Vacuum System Accessories, all available at competitive prices.
|
|
|
Our Atlantic Fluidics axial flow liquid ring vacuum pumps are highly efficient and rugged. Their "abuser-friendly" shrouded rotor design allows starting even in a flooded state without fear of damage. Single and multistage pumps are available, capable of achieving ultimate pressures of 4 Torr (5.3 mbar). Close coupled and separate drive configurations are available.
|
|
The Benefits of SIHI dry at a Glance
PERFORMANCE
• Range m160 up to m1000
• Suction Volume:- 160 to 1000 m3/h
• End Pressure < 1 to < 0.01
LOW LIFE CYCLE COSTS
• No need for service liquids:-
- totally dry principle of operation
- no gears for rotor syncronisation
- no waste disposal
• Low energy cost:-
- reduced power consumption
• Wear free:-
- non contacting rotors
- no mechanical shaft seals
- electronic rotor synchronisation
- no rotor coatings
QUIET
• No gear box
ROBUST and RELIABLE
• For wet processes
- vertical, self draining
- no stagnant ares in pump casing
- liquid carry-over/flushing capability
• For tough operating conditions
- optimised rotor clearance
- torque monitoring
- liquid flushing during operation
- cleaning without dismantling pump
• For explosive gases
- low internal gas temperature
- Ex-rating
- explosion proof design
- ATEX certified
• For thermally sensitive substances
- optimum temperature / compression profile
- uniform temperature profile
|
|
|
Kinney SDV Dry Screw vacuum pumps operate without any sealing liquid in the pumping chamber. Without metal-to-metal contact inside the pumping chamber, wear is greatly reduced.
|
|
|
|
|
|
The comprehensive Sterling SIHI range of liquid ring vacuum pumps is available in single and two stage designs, with suction capacities up to 12000 m3/h and suction pressures in the range 33 to 1013 mbar. In addition, above atmospheric pressure these pumps can be used as compressors.
SIHI FULL RANGE PERFORMANCE
Capacity - 12,000 m3/h
Suction pressures - 33 to 1013 mbar
The latest addition to this is the SIHI LPH-X range, which is available in one and two stage variants and able to operate at 50Hz and 60Hz.
It has been designed for interchangeability with the well established LPHA range and offers the lowest cost of ownership.
SIHI LPH-X PERFORMANCE
Single stage:- Suction pressures - 120 to 1013 mbar
Suction volume flow - 50 to 850 m3/h
Two stage:- Suction pressures - 33 to 1013 mbar
Suction volume flow - 44 to 800 m3/h
FEATURES
• Interchangeable with previous LPH range
• Complies with ATEX legislation
• Single and two stage
• Modular construction
• Compact design
• Fewer components
• Extensive range of sizes, materials and
sealing combinations
• Seal accessibility
• Engineered systems
|
|
|
KINNEY KLRC liquid ring vacuum pumps are ideally suited for pumping wet mixtures and even slugs of liquid. These rugged vacuum pumps are available in various construction materials such as stainless steel, cast iron, and bronze fitted.
|
|
|
Kinney KC & KTC Series Multi-stage rotary piston vacuum pumps provide pumping speeds of 5-112 CFM (8-190 m³/h) with ultimate pressures of 0.2 milliTorr (0.027 Pa). Our KTC series vacuum pumps include our exclusive triplex piston design to eliminate vibration.
|
|
Sterling Service has more than 200 specialised service centres around the world. These are supported by a network of manufacturing centres and 50 wholly owned sales operations. All of this ensures the highest level of service is provided to our customers at a local level.
WHATEVER THE SOURCE OF YOUR ORIGINAL VACUUM EQUIPMENT - STERLING SERVICE SUPPLIES THE SOLUTION FOR YOUR PUMPS & COMPRESSORS.
- Replacement vacuum pumps
- Replacement compressors
- Emergency breakdown cover Repair
- Extended warranty
- Refurbishment
- Service contracts
- Original spare parts
- On-site service
- Re-engineering
- Commissioning-
- Installation
|
|
|
KINNEY rotary piston vacuum pumps provide vacuum levels to 0.2 milliTorr (0.027 Pa) with long operating life. Our triplex piston designs are inherently balanced to eliminate vibration.
|
|
|
Kinney Rotary Vane vacuum pumps provide an economical vacuum source for those applications where the process is relatively clean or filtered. Gas ballast valves for vapor handling applications are included as standard equipment.
|
|
|
Kinney & M-D Pneumatics vacuum boosters from Tuthill Vacuum & Blower Systems provide additional capacity and vacuum range to vacuum pumps.
|
|
The Kavac series of vacuum products includes a wide variety of conventional vacuum components, as well as more specialised items such as variable vacuum pumps, material transfer and air amplification units. KV's vacuum division is also able to deliver customer-specific vacuum solutions; often developing customised pumps or completely integrated vacuum control systems. A comprehensive range of vacuum cups complements the Kavac range.
|
|

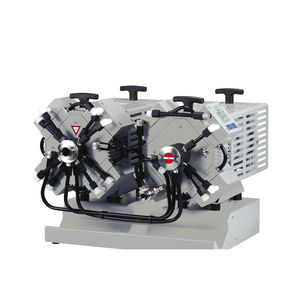

VACUUBRAND VARIO chemistry pumping units control the vacuum level with pinpoint precision by adjusting the diaphragm pump's motor speed continuously. They enable automatic detection of vapour pressure and variable adjustment of the vacuum level to the process. The fast and precise adaptive control always adjusts the pumping speed to the optimal level, regardless of installation size or gas volume. Process times are shortened by the high evaporation rate. Through constant evaporation, an optimal solvent recovery rate can be achieved. On the whole, the demand-oriented motor speed control reduces the workload of the vacuum pump significantly. This leads to unrivalled lifetimes for moving parts.
Application
For evaporation, distillation, drying and all other processes that require precise vacuum control, stagelessly adjustable pumping speed or demand-oriented vacuum supply.
|
|
Laboratory diaphragm pump Capex 8C
Contamination free pumping
The capex 8C vacuum pump/compressor provides a clean oil free vacuum and pressure source ideal for laboratory benchtop use.
|
|
LABOPORT Vacuum Systems: chemiecall-resistant Diaphragm Vacuum Pumps with modular Accessories
With each of the LABOPORT vacuum pumps it is possible to construct a system suitable to individual requirements - easily and without special tools. The final building is a system with two vacuum controllers (SCC System) for two independent processes.
|
|
Laboratory diaphragm pump Capex 8C
Contamination free pumping
The capex 8C vacuum pump/compressor provides a clean oil free vacuum and pressure source ideal for laboratory benchtop use.
|
|
|

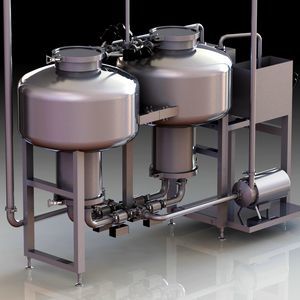

Complete systems from one source: planning, development, production, assembly, training and service are individually tailored to the customer's needs system technology involves the design and manufacture of complete vacuum systems for special, customer-specified processes.
|
|

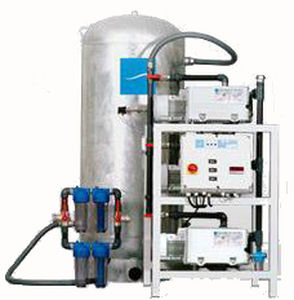

The NOVAIR medical vacuum stations are designed and manufactured according to and in compliance with the European standards (ISO EN 7395-1, ISO EN 737-3). All of of our medical vacuum stations are marked as CE medical devices according to 93/42/CEE European Directive.
Medical vacuum stations are available in a wide range of configurations:
- single, duplex, triplex and multiplex sources
- horizontal, vertical, modular and shelterized configurations
- electromechanical and/or electronic control features
- output flow: from 5 to 1000 m3/h
A complete range of medical vacuum piping accessories is also available.
|
|
|
|
