VX8
Windows XP Based Vehicle Mount Computer
LXE's VX8 vehicle-mounted computer is a rugged, wirelessly enabled Windows based mobile PC with a 10.4" touch screen display, designed for use in tough environments. Available with either Windows® XP Professional MUI or Windows® XP Embedded, the VX8 has the power and flexibility to run multiple advanced applications. Its compact size and range of vehicle mounting options makes it suitable for use on vehicles where space is limited. Optional integrated Bluetooth®, WLAN and WWAN radio support deliver communications on the move. With a magnesium enclosure rated to IP65, the VX8 has been engineered to handle extreme temperatures, shock, vibration, dust and moisture.
|
|
Voice enabled with ToughTalk™ technology.
Rugged vehicle mount computer with Windows® CE .NET OS - reduces application development & IT support costs.
Fully heated - ideal for freezer/cold weather applications.
Low profile with integrated keyboard improves driver’s field of view.
|
|
Mobile Industrial PC: Compact – completely sealed – NEMA4
The C8 Industrial PC, with its light-weight, extremely hard-wearing aluminum enclosure, was specially developed by noax for mobile operation under extreme conditions. The daylight-capable, 8.4" TFT display with integrated touch panel and automatic brightness control opens up a great variety of possible uses plus extremely simple operation. Its sophisticated technology permits fast and easy integration of various peripheral devices. Due to its very compact design with dimensions of only 232 x 185 x 99 cubic mm (L/W/H) and its manifold installation options, this completely sealed IPC can be mounted on or inside nearly every carrier vehicle. This makes the C8 an ideal vehicle terminal for forklift trucks, order picking vehicles or construction machinery.
|
|
QSI Corporation’s rugged TREQ®-M4 is a compact mobile data terminal intended for use in a wide range of commercial vehicle applications. The size of the TREQ-M4 allows the end user to mount and position the terminal for optimized functionality and minimal distractions. The TREQ-M4 runs Windows® Embedded CE 6.0 operating system. The terminal can be used for tasks ranging from vehicle systems control and monitoring to Computer Aided Dispatching (CAD). The Windows operating system assures broad support for third-party hardware, software and application development.
The TREQ-M4 display is a bright 480 x 272 pixel color TFT LCD, 109 mm (4.3") diagonal with a resistive touch screen. Additional standard features include two serial ports, two USB 1.1 full speed host ports, 10/100Base-T wired Ethernet and a 4-key lighted elastomeric keypad. Bluetooth, a magnetic card reader and an additional USB host port are available as optional features.
|
|
|
|
|
|
New! M200 - Overview
M200 models - feature rich, fully programmable, with multiple options. Two standard models are currently available: M200 and M201.
M200 Product Key Features
ThreadX® Multithreading Real-Time Operating System
ARM7 16/32 bit 75MHz microcontroller
Bright graphical LCD – mono, 240X64 Pixels
Large main control knob
Backlit function keys: 12 alphanumeric, 6 programmable, 4 control
2 x RS232 communication ports
2 Digital control inputs
Analog input
Permanent Data storage
8-18V Direct car battery connection
M200 Standard Options
Quick release mounting arm w/3m extension cord
Anti glare & anti scratch display overlay
New! M201 - Overview
M201 – the M201 model includes all M200 standard features, plus a number of enhanced features.
M201 Enhanced Features
Additional Data Flash memory – 1MB
Additional 4 x RS232 communication ports
2 O/C outputs
8-30V Direct car battery connection
M201 Standard Options
Quick release mounting arm w/3m extension cord
Anti glare & anti scratch display overlay
Touch screen (signature capture)
PS2 interface port (for external keyboard)
SAE J1708 integrated interface
For technical specs check the M-Series Comparison Table.
For M200 and M201 models full Development Tool Kit available.
For more details, please contact your Micronet representative.
|
|
|
|
|
|
Net-960CE-S - Overview
Enhanced Win CE .Net platform for MRM!
The Net-960CE-S product family features an advanced WinCE .NET (supporting Compact Framework) development environment. Standard product configurations support an extended range of optional features and functions. These include wireless interfaces like GPS, GPRS, Wi-Fi, Disk on Chip and Bluetooth, as well as multiple vehicle I/O interfaces, Comm & Connectivity ports (USB, RS-232, J1708, CANBus) and support of peripheral devices, including an external, independent, 3rd party colored screen.
Built upon two decades of mobile technology experience, the Net-960CE-S scored global success with leading MRM solution providers, in the trucking and logistics markets.
Platform Key Features
• Five standard configurations (S1, S2, S3, S4, S6)
• Option for customized OEM terminal configurations
• Optional integrated Wireless Options including GPS, GPRS, Wi-Fi and Bluetooth
• Extended Functionalities
Development Tool Kit and SDK Packages
The Net-960CE-S models are offered with a comprehensive development tool kit and SDK packages for independent application development, backed by Micronet's technical support team.
For technical specs please check at Net-960CE–S range Comparison Table
|
|
|
A small footprint, large functionality and economical price distinguishes the LANpoint 7 Series of vehicle-mount computers. The series offers open architecture for easy implementation and deployment into existing and future IT infrastructures. It is exceptionally rugged, has no moving parts, and is environmentally sealed against dust and water. It has a very wide operating temperature range - use indoors or out. Easy to integrate, use and support, these data collection computers are ideal for data capture and communications solutions for the loading dock, shipping port, rail or truck terminal, warehouse, distribution center, push-cart, shop floor inventory, tool crib management, or other commercial environment.
|
|
|
The Future.Pad® 121R rugged tablet features a 12.1” TFT LCD touch display and is designed for reliable computing in harsh industrial environments. Shock and vibration protection, compliance with MIL STD 810F, as well as IP65 water and dust proof allows the Future.Pad® 121R quality performance in many industrial fields. The fan-less design and uninterruptible power supply (UPS) provides the highest reliability and durability. The Future.Pad® 121R also provides flexibility for an optional GPS module, GSM/GPRS/EDGE or 3G CDMA/ EV-DO module, and extendable hard disk drive, as well as network connectivity.
|
|
|
QSI Corporation’s TREQ®-DX is a rugged mobile data terminal intended for use in a wide range of commercial vehicle applications. The TREQ-DX runs Windows® CE 5.0 operating system. The terminal can be used for tasks ranging from vehicle systems control and monitoring to Automatic Vehicle Location (AVL) and Computer Aided Dispatching (CAD). The Windows operating system assures broad support for third-party hardware, software and application development.
|
|
|
|
|
|
Net-955 - Overview
Give more value! With the most Economical, most Reliable, most Popular data messaging terminals
The Net-955 Mobile Data Terminal is designed for the in-vehicle environment, providing two-way messaging capabilities for Fleet Management solutions.
The Net-955 Mobile Data Terminal can be operated over various communication networks such as CDPD, GSM, SMR.
Our enhanced version, the Net-955 Mobile Data Terminal, extends capabilities of the two-way messaging terminal, enabling connectivity to data logging, printer control and automatic data collection.
Programming the Net-955 is easy using the software tools in our Evaluation Package provided risk-free with our 30 days money-back guarantee.
For technical details check: Net-955 Development Kit
Features:
-Built to withstand the tough vehicle environment
-Proven reliability
-Operator Ergonomics
-Small footprint
-Low power consumption
-Field Programmable
The path to extended functionality
It provides four serial ports for connecting peripherals such as printer, GPS, and data-logger as well as automatic data entry capabilities such as magnetic tag, bar-code and touch memory buttons.
|
|
|
|
|
|
New! M100 - Overview
The M100 Display terminal is designed to provide a simple, reliable and a most economical solution for two-way messaging applications, depending on an external 3rd party AVL box.
The M100 is a low cost Display terminal for Telematics solutions, fully controlled by the AVL (Automatic Vehicle Location) black-box device, through a serial RS232 port. The Black-box device serves as a Host that runs the applications and controls the M100 Display terminal. The M100 communication protocol that is provided by Micronet can also be customized to specific black-box requirements.
The M100 Display terminal is supplied with preloaded command functions, enabling bi-directional data input and output between the terminal and the black-box. As a Host, the black-box can also control electrical Display terminal features, like Backlight, Buzzer, LED’s, etc.
The M100 Display terminal is offered in the following pre-set configurations, to minimize development efforts and shorten time to market:
• MIP - Micronet Interface Protocol - allows for quick integration, without having to write code on the M100 device itself.
• Garmin FMI compatible API – enables Garmin users seamless, out-of-box, integration with the low cost M100 Display terminal.
• MMA - Micronet Messaging Application – out-of-the-box, configurable, client-side two-way messaging application software.
M100 Product Key Features
Bright graphical LCD – mono, 240X64 Pixels
Large main control knob
Backlit function keys: 12 alphanumeric, 6 programmable, 4 control
One RS232 communication port
Fully controlled by external Black box
8-18V Direct car battery connection
|
|
Net-960E - Overview
The industry's most popular MDT platform
The Net-960E offers a winning combination of Looks, Functionality, and Price that makes for a most affordable and attractive data messaging solution. The Net-960E has become the choice of leading Fleet and Workforce management solution providers throughout the world.
The Net-960E is used for a variety of applications; Driver Log, Interactive messaging, Dispatch, Status and Form based reports, and offers connectivity through 2 RS-232 ports and I/Os to vehicle sensors. It also supports external peripherals, such as Driver ID touch button, Swipe card, Bar-code wand and PS/2 Key-board interface.
Application development is easy using our software development toolkit (SDK) and demo programs. Special Evaluation Packages are provided risk-free with our 30 days money-back guarantee. See Net-960E Development Kit below.
For more information please check at Net-960E technical specs and Net-960E Development Tool Kit
|
|
LANpoint CE.NET Vehicle Mount Data Collection Computers
Designed for vehicle mount applications, the LANpoint CE.NET Series offers open architecture for easy implementation and deployment into existing and future IT infrastructures. The series is exceptionally rugged, able to withstand vibration and shock, as well as being environmentally sealed against dust and water. Easy to integrate, use and support, these data collection terminals are ideal for data capture and communications solutions for factory floor, forklift, or general warehouse or manufacturing environments.
|
|
|
Intermec fixed and vehicle mount computers include the latest radio technologies including industry standard 802.11x, Cisco® certified compatibility, and support for Bluetooth® scanning and peripherals, enabling either wired or wireless operation. They are ideal for the demands of mobile warehouse and inventory-control applications common to material handling equipment and industrial vehicles such as forklifts and hostlers. Their compact form factor and rugged design also make these computers ideal for fixed mount applications such as cross docking, manufacturing work stations, shop floor, and other warehouse and distribution environments.
|
|
VX3X
- Compact, economical vehicle-mount computer perfect for smaller warehouse vehicles with limited mounting space.
- Uncompromising hi-vis 6" display reads like a full sized computer…in any lighting condition.
- Includes LXE's legendary ruggedness.
- Low profile RAM vehicle-mount system is simple to install & adjust to each operator's specific needs.
- 12-80VDC internal fully isolated power supply so it can be used on almost any lift truck.
- Voice ready with ToughTalk™ technology for your voice logistics applications.
|
|
Smart, small, tough
Drop into any port or warehouse at any time of day – you’ll see an army of forklifts zipping in and out of tight spaces with inches to spare. Which means finding a vehicle mount computer powerful enough to do the job without being a practical hindrance is always a problem.
Until now. The 8515 is incredibly compact and lightweight. So it never makes a nuisance of itself. And it’s packed with features to make workers’ lives easier. Which means productivity never drops, all shift long.
The 8515 is just as happy staying put as it is on the move. So you can use it as a fixed-mount terminal, making it perfect for data collection in retail.
|
|
VX7 Vehicle Mounted Voice Terminal
- Voice enabled with ToughTalk™ technology.
- Full-screen version of VX6 vehicle mounted computer - perfect for more robust applications.
- Windows® CE .NET OS - so you can easily adopt future emerging technologies & applications.
- With LXE’s RFTerm® multi-session terminal emulator, you can easily run your legacy terminal emulation applications.
|
|
|
|
|
|

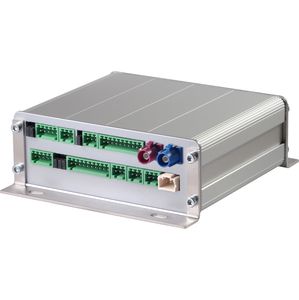

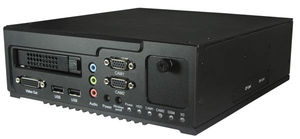

MPC-900 Rugged Mobile DVR Hardware Platform
1.Rugged / Fanless Mobile DVR Hardware Platform.
2.Anti-vibration, Anti-shock system design.
3.Removable / Anti-vibration HDD design
4.On board wide range DC to DC power design support 12~24V input
5.Dual Display VGA1+VGA2 or VGA1 TV
6.Wide Temperature design
Specifications
System
- CPU: Intel Atom N270 1.6GHz CPU
- Chipset: Intel 82945GSE NB, ICH7M SB
- Memory: 1 x DDRII 400/533 200 pin socket, up to 2GB memory
- BIOS: 4M firmware AMI license BIOS, support boot-up from USB type external CD-ROM, HDD and FDD devices
- Storage: SATA HDD / Compact Flash Type II
- Audio: AC97 codec
- Watchdog Timer: Software programmable time-out intervals from 0~255 level
- Ethernet: 1x Realtek RTL8111DL 10/100/1000 Base-T interface
- Video Decoder: Techwell TW6805 x 4
Expansions
- Expansions: Mini-PCIe, PC104-Plus
IO External
- VGA connector: 2 x DB-15 VGA connector supporting up to 1600 x 1200
- Serial Port: 2 x DB-9 COM ports (COM 2 support RS-485 only)
- USB: 6 x USB 2.0 ports
- Ethernet: 1 x RJ-45 with LEDS connector for 10/100/1000 Ethernet
- Video In: 1 x DB-15 VGA connector (4/8 Channel Video decoder input)
- Video Out: 1x RCA connector
- Antenna: 1x antenna for WiFi
- Switch: 1 x Reset button, 1 x power on/off button
- LED: Power / LAN / HDD
Environment
- Temperature: Operating: 0°C~ 60°C/ Storage: -10°C~ 70°C
- Humidity: 5% ~ 95% RH, non-condensing
- Dimensions: 240 x 160 x 60 mm
- EMI/EMS: Meet the CE and FCC class B regulation
- RoHS: RoHS Compliant
Power
- Power Supply: VDC 12-24V Wide Range Power Input
|
|
|
|
|
|
* Bit-RVC MPCX47 is a fully Rugged Vehicle PC with enclosure protection up to IP65. Small in construction, ideally suited for in-vehicle applications, military and industrial environments
* Noiseless trough passive cooling without a fan
* Most modern interfaces such as USB V2.0, Firewire, LAN, ISDN, IrDA
* Universal display with Analog VGA (optional), Digital DVI & LVDS and SVideo (TV)
* IP65 sealed Aluminium case prevent the units infiltration from rain and dust
* Top quality components and a robust aluminium case ensure reliable functioning
* Systems are available for at least 5 years without changes and function compatible components are deliverable for 5 more years
* Very small dimensions and a weight of max. 3.2 kg
The Bit-RVC MPCX47has been specially developed for use in the automotive and industrial environments. It is one of the smallest industrial computers, with dimensions of only 160 X 300 X 66 mm and weighing less than 3.2 kg. Bit-RVC X47 is able to meet the demands of the modern PC technology on each environmental condition. Thanks to the passive cooling concept, the use of fans are avoided, noise generation is therefore greatly reduced (<25dB). The CE-certified device has an operating temperature range of -40°C to + 75°C (with 600 MHz CPU, without optical drive and preheated option).
|
|
|
|
|
|
* RUGGED RELIABILITY Bring on the temperature extremes, humidity, vibration, dust, drops and spills. Designed to meet even military rugged requirements (MIL-STD 810F), the GD6000 has a range of rugged features from the spill-resistant keyboard to the shock mounted display.

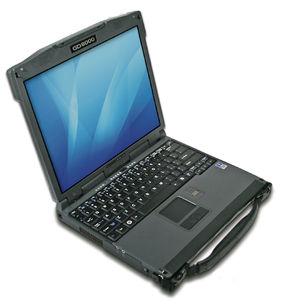

ULTRA-VIEWABLE TOUCHSCREEN DISPLAY Streaming sunlight may wash out other displays but you’ll still see the GD6000 screen with its award winning 13.3” DynaVue® touchscreen display. So if you’re outside, or even near a window, in low light or bright, this screen shines.
POWERFUL PROCESSING The GD6000 works as hard as you do. In fact, it can probably run circles around your desktop with the latest Intel® 2.53 GHz T9400 Core™2 Duo processor, an 1066 MHz Front Side Bus, 6MB L2 cache, up to 4GB DDR3 memory and the Intel GM45 Express Chipset.
COMPLETE WIRELESS CONNECTIVITY No matter your network or preferred wireless technology the GD6000 keeps you connected with up to four integrated wireless devices. WI-FI (WLAN), Cellular Data (WWAN), GPS, and Bluetooth with sophisticated RF shielding and noise filtering – your communication options cross the spectrum so you can count on coverage.
ERGONOMIC Computers shouldn’t be uncomfortable. That’s why the GD6000 was designed with you in mind – so you can carry it and use it without pain or strain. It’s the thinnest, lightest durable computer and even includes keyboard lighting features so you can work efficiently and safely at night.
|
|
VX5 Vehicle Mount Computer
- Ultra-rugged Windows® based vehicle computer with a Pentium® III processor.
- Impact resistant aluminum casting, & IP66 toughness rating - built for industrial environments.
- Supports LXE’s RFTerm™ multi-session terminal emulator - easily runs legacy terminal emulation applications.
|
|
Our rugged vehicle-mount product line consists of rugged mobile computers that are designed to withstand the harshest environments. Our rugged vehicle-mount computers operate using standard Microsoft Windows operating systems and have a wide range of connectivity, data input and software options available to ensure the right fit for your business application.
|
|
|
The mobile computer product range includes a wide range of portable, compact and ergonomic terminals together with ready-to-use software development tools and solutions for wireless communication and networking. By using the latest technologies in the applied electronics sector, Datalogic and its line if mobile computers anticipates market demands and satisfies the continuous evolution of customer needs.
|
|
