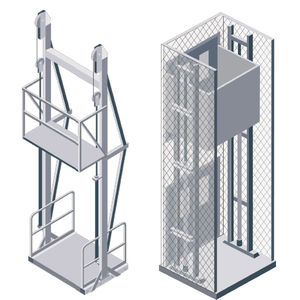

Pflow hydraulic lifts provide reliable and economical vertical lifting for mezzanines, balconies, and other two-level applications. Pflow hydraulic lifts offer heavy-duty construction and advanced safety technology with proven reliability. Our hydraulic lifts are available in straddle or cantilever design.
|
|
|

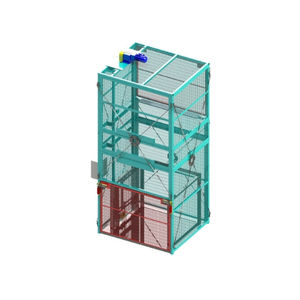

Pflow mechanical vertical lifts offer versatility and dependability for high-speed and multi-level applications and for moving large, heavy loads. Pflow mechanical vertical lifts offer durable, heavy-duty construction and maximum flexibility in carriage size, capacity and traffic patterns.
|
|
Model STXXS Double High Lift
This double-high hydraulic scissors lift table allows extended vertical travel with a compact platform length. It is ideal for applications such as sheet-stacking and transferring materials between different levels in a building.
|
|
|
|
|
|
Hydraulic VRC Material Lift Benefits:
- Lift Capacity: 1,000 to 4,000 lbs.
- Lifting Height: Up to 19 ft.
- Lifting Speed: 20 fpm
- UL-508A labeled control panel
- ’Gate Closed’ indicator light on control panel
- Momentary contact ‘Up’ and ‘Down’ push-button controls
- All control wiring stepped down to 24 volts for safety
- Control panel and hydraulic pump unit ship as a prewired assembly
- Fabricated by AWS D1.1 Certified Welders
- Constructed for “bolt-together” installation. Field welding not required
- All bracing material provided
- Structural grade fasteners and floor anchors provided
- Industrial strength carriage platform handles heavy point loads
- Roller bearings with easy-access grease fittings for all wheels and sleeves
- Hydraulic pump motor sized for continuous duty
- Dual hydraulic rams and lifting cables provide redundant safety
- Hydraulic rams pull, rather than push, for added strength and longer life
- Hydraulic operating pressure maintained below 1,600 psi for extended component life
- Oversized oil reservoir provided to reduce possibility of oil overheating
- Automatic shut-off valves for broken hydraulic hoses
- Manual lowering valve provided for emergency use
- High-flex IWRC lifting cable provides extended service life
- Broken cable free-fall safety cams rated for 7,000 lbs.
|
|
HYDRAULIC MONTACARGA
Defined to have solely a column of sustención and guidance of cylinder and platform, which together with its versatility in load and surface, makes extremely adaptable to the needs of the industry.
This one solution allows the access by three points different from plafaforma. what facilitates the load and distribution in conflicting points.
|
|
|
Aerotech lift stages are available with direct drive or lead-screw-based mechanics to provide the ideal solution for your application. These stages feature resolution to 2 nm and travels up to 25 mm, with compact footprints, and are designed for a wide range of positioning applications.
|
|
The HAULOTTE vertical masts offer :
- from 6 to 12 m working height
- maximum compactness and handiness
- a high autonomy (powerful batteries)
|
|
RUNABOUT
The Genie® Runabout is a compact, low-weight machine that is wel suited for increasing productivity on the job. The efficient operation and convenient setup of the of the Runabout™ make it ideal for warehousing, stock-picking, transporting, inventory management, general maintenance and construction.
A zero inside turning radius and full elevation drive feature deliver maximum productivity.
Working height from 5.48m to 8.07m
Lift capacity from 159kg to 227kg
|
|
|
JLG’s vertical personnel lifts are the smallest aerial work platforms in the entire range. Provided to meet the needs of applications where space is limited and the floor load is restricted. The lifts are designed to have a minimum footprint area and can be set up quickly so there is little delay for you to start on the task ahead. The personnel lifts consist of a work platform attached to an aluminum mast that extends vertically. Platforms vary in size and capacity but all carry one person (some models carry two) with optional attachments to carry tools and materials with ease. There are three types of vertical personnel lifts available: push around vertical lifts, self-propelled vertical lifts, and self-propelled stock picker vertical lifts.
|
|
|
JLG’s vertical personnel lifts are the smallest aerial work platforms in the entire range. Provided to meet the needs of applications where space is limited and the floor load is restricted. The lifts are designed to have a minimum footprint area and can be set up quickly so there is little delay for you to start on the task ahead. The personnel lifts consist of a work platform attached to an aluminum mast that extends vertically. Platforms vary in size and capacity but all carry one person (some models carry two) with optional attachments to carry tools and materials with ease. There are three types of vertical personnel lifts available: push around vertical lifts, self-propelled vertical lifts, and self-propelled stock picker vertical lifts.
|
|
|
Virtually eliminating the need for scaffolding or ladders, JLG® mobile vertical lifts allow you to get closer to your overhead work and maintenance applications. A single person can carry up to 500 lbs (people and materials) and reach up to 20 ft. With innovative controls, maintenance-free components and automatic battery charging, JLG® mobile vertical lifts last longer and are more reliable then ever. You will be able to fit through standard doorways, maneuver your way through narrow aisles, and go more places then ever before. Vertical lifts are great for transporting supplies, lighting, routine maintenance, and even hanging holiday decorations.
|
|
|
|
|
|
PERSONNEL LIFT
Genie® portable personnel lifts are easy to use and cost efective, making them the first choice for a wide range of applications. One person can easily set them up and get to work within minutes, providing the ideal all-around toll for almost any access application. Their light weight and compact size make Genie® portable personnel lifts convenient to use in schools, churches, warehouses and more. Genie® portable personnel lifts also provide solutions for internal work on large construction sites, like high rises, as well as being perfect for light-duty construction purposes.
Genie® portable personnel lifts are designed to enhance productivity in the workplace. Flexible features on the AWP™, IWP™ and DPL™ models offer convenience at a low cost. Their lightweight construction makes them easy to manoeuvre, use and transport, delivering maximum uptime. Each model offers a variety of options and accessories to customize your machine. Genie® portable personnel lifts offer and economical solution for all your access needs.
Choose from 11 models with working height from 8.12m to 14.29m and lift capacity from 136kg to 340kg.
|
|
AHWP Personnel Lifts
Whether it is impractical or impossible to bring the work to the worker, AHWP personnel lifts provide a convenient way to raise workers to perform their tasks. They are ideal for servicing large, immovable machinery, working off a conveyor line, product assembly, and other plant maintenance and operations.
AHWP personnel lifts can be used when ladders are too risky, and when forklift-mounted cages are not practical. It functions smoothly and dependably regardless of unequal weight distribution.
|
|
| ... products without technical information |
| |
SILO is a vertical filing system with high intensity storage Thanks to a system of shifting trays, SILO offers increased exploitation of vertical space taking up limited surface areas. The operating SW on every machine allows the handling and control of filed materials with the greatest order and information, and all with operator safety and convenience of use in mind. Reliability, sturdiness and extreme dimensional modularity make SILO the best solution for problems associated with filing in very high locations.
Advantages
- Maximum exploitation of vertical space
- Future height and bay position adjustability
- Single/multiple bays, and on different levels
- Modular trays in heights, divisible and equipable
- Protection against dust and unauthorised entry
- PC and operating SW on every machine
|
|
|
|
|
|
The Shuttle® XPmultiple consists of two independent modular high-bay systems arranged in tandem. Trays are transported from the rear system to the front system – and vice versa – by transfer unit. Items are then removed by the operator from the access window. Speed of delivery from request to actual delivery is extremely fast. Internal pre-order picking reduces the waiting time even further. The system can be controlled by Kardex PowerPick® software which allows items to be managed and controlled in preparation for storage and retrieval.
The Shuttle® XPmultiple is ideal where it is impossible to install two separate systems. Deep, awkward, narrow spaces can be used to their full capacity and routes reduced by having only one access opening. The space required for movement is cut by 50% when compared to individual systems and whilst an order is being picked at the access window, the system is preparing the next tray for delivery in the background.
The modular structure of the Shuttle® XPmultiple ensures almost infinite versatility whilst exploiting different room heights. Every Shuttle® XPmultiple can be used as a stand-alone unit and depending upon requirements can be expanded to form a composite system and extended where and when necessary
|
|
The Shuttle XP is a high density and dynamic vertical lift system. The Shuttle XP builds upon the tremendous success of the previous NT model. It is built to maximise on your ceiling height with units available up to 30 meters high. One unit can carry a gross load of 60 tonnes or more.
Combined with the Kardex software Powerpick 5000 you will be able to maximize the efficient use of your inventory giving details of availability, transactional history, and space utilisation to boost your productivity increase even further.
Benefits:
Increased Picking Speed
Saving Space (80% will be typical)
Saving Time
Health and Safety
Better Protection (include PIN access control)
Software & Controls
|
|
The Kardex Shuttle® XPCrane offers all the same benefits as a miniload system but with 100% more flexibility, greater scope for future expansion and superior cubic utilisation of space.
Principle
The Kardex Shuttle XPcrane Vertical Lift Module (VLM) is an enclosed system of vertically arranged trays, an extraction platform and a series of computerized controls that allow operators to stay in one location while up to millions of items can be delivered automatically (Patent Pending).
This system is comprised of a series of vertical modules with one central crane delivering items to an ergonomically positioned workstation.
KARDEX Shuttle XPcrane VLM can consist of up to 12 single modules and have a storage capacity of 5.200 m² with footprint of only 74 m²
|
|
Vertical Lift Module (VLM)
The Stanley® Vidmar® Vertical Lift Module (VLM) Automated Storage and Retrieval System (AS/RS) is the ultimate high-density storage solution. Manage up to 132,000 lbs. of materials from one convenient computer console!
An entirely modular structure, the Stanley® Vidmar® Vertical Lift Module allows you to store, locate, and pick materials for limitless types of applications. A variety of VLM models offer your choice of performance, capacity, and configuration options; whatever you need to achieve, the Vertical Lift Module is your answer!
|
|
System of vertical store automatic, composed of a bearing structure on which the entry and the export of the goods are automated thanks to a shuttle or mechanism extractor and elevator.
Produced principle the "with man" is applied to this machine, which allows:
To optimize the courses
To reduce times
Operation is very simple; the operator selects on the screen produces it wished and, automatically, the shuttle moves vertically up to the level at which it is located, the plate extracts corresponding and carries it to the station of picking or counts of exit.
Advantages
Data-processing management of the store.
Saving in space: all the height of the room is used.
Time-savings: the operator does not need to move of his work station to prepare an order.
Safety of the goods.
|
|
|
|
|
|
The Shuttle® XPlus is a vertical lift system which builds upon the success of the Shuttle® XP technology; its intelligent design allows organisations to utilise awkward spaces for their storage, providing them with greater storage capacity.
The system technology allows up to four Shuttle® XP systems to be combined with a single extractor which can move vertically, horizontally and diagonally, minimising waiting times even further. The design of the Shuttle® XPlus makes it an ideal addition to the Shuttle® XP system, leading to the creation of an intelligent and quick retrieval system.
Kardex Shuttle® XPlus – Technical Features
Up to four Kardex Shuttle® XP units combined in one system.
Total width: dependent upon the number of units combined.
Height: from 3,050 to 20,050 mm.
Maximum payload: 60 tonnes per segment.
Tray spacing: 25 mm.
Vertical speed of extractor : up to 1.70 metres per second.
Horizontal extractor velocity: up to 1.00 metre per second.
Tooth belt safety margin: minimum 10 times.
|
|
The TOWER Storage Lift is Storage Racking with a robot-driven carriage.
Between two storage volumes in tray-carrying racking
A carriage travels, extracting the trays
Bringing them to a workstation,
By the order of the operator, relayed by computer.
Automated storage of this sort carries many advantages :
- Exploitation of high space often otherwise unused
- Accommodation to heavy or light items
- Adapts to bulky or minor items
- Trays can be removed from the storage space
- Storage machines can easily be adapted to new volumes
- Storage space is available where it is needed - at the point of usage
The TOWER Storage Lift fits into the universe of automated storage products from ELECTROCLASS between
- The Titan vertical carousel, plus best suited to smaller items and lower available heights
- And the Silo mini-load crane system, best suited to massive centralised storage of parts.
The TOWER Storage Lift the Four-wheel drive of Storage Automation
- Robust,
- Reliable
- Adaptable
|
|
| ... products without technical information |
| |
Apart from optimizing the warehouse layout to match the frequency of access to various goods, the next best thing for saving time and money is your choice of order picker. Order pickers are the busy bees of the warehouse.
Some 80% of orders involve just 20% of stock lines, and stacking and picking at low levels is a cheaper option than at higher levels. Getting the right warehouse layout and the right order pickers are crucial to your Return On Investment.
|
|
High Level Order Picker - 0.8 ~ 1.0 ton Capacity
- NOH08K 800 (kg)
- NOH10K 1000 (kg)
- NOH10KC 1000 (kg)
- NOH10KH 1000 (kg)
|
|
Baling press is to presses suitably by lighter and moderately severe sticking packing, plastics, Tekstilien etc.
Baling press type LU 2.5 - 7050
Bundle weight 40 - 60 kg of charging hole 700x460 mm
Baling press type HY 5.0 - 7050
Bundle weight 50 - 70 kg of charging hole 700x460 mm
Baling press type HY 8.0 - 10060 fiber plastics
Bundle weight 100 -150 kg of charging hole 1000x550 mm
|
|
|
|
