Forward Soil Plates
Dynapac offers a comprehensive range of forward soil plates that are specially designed for compacting granular soils. They are ideal and most economical for small repair and maintenance work. Forward plates are also a compliment to rollers that may not be able to operate effectively in confined spaces.
Forward Asphalt Plates
Dynapac offers a comprehensive range of forward asphalt plates that are specially designed for compacting asphalt. They are ideal and most economical for small repair and maintenance work, such as driveways, pathways and parking lots. Forward asphalt plates are also a compliment to asphalt rollers that may not be able to operate effectively in confined spaces.
Forward & Reversible Plates
The range of forward and reverse plates are an economical alternative or compliment to a roller. These allround machines are specially designed to compact soil in confined areas, such as in trenches and parking lots, among other areas. Forward and reverse plates are also suitable for special applications, such as block paving. Forward & Reversible plates are also a compliment to rollers that may not be able to operate effectively in confined spaces.
|
|

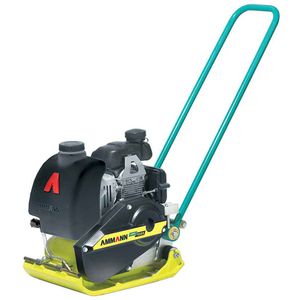

Ammann aims to offer users all the benefits of modern technology, in line with constantly changing requirements on construction sites. The focus is on people: alongside high performance and efficiency, user-friendliness is a key factor in our machines.
More than 15 years ago, we broke new ground by developing hydraulically-driven vibratory plates. Nowadays Ammann is numbered among the leading providers in this equipment category.
|
|
Ammann aims to offer users all the benefits of modern technology, in line with constantly changing requirements on construction sites. The focus is on people: alongside high performance and efficiency, user-friendliness is a key factor in our machines.
More than 15 years ago, we broke new ground by developing hydraulically-driven vibratory plates. Nowadays Ammann is numbered among the leading providers in this equipment category.
|
|

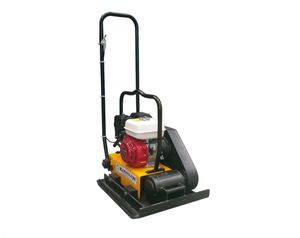

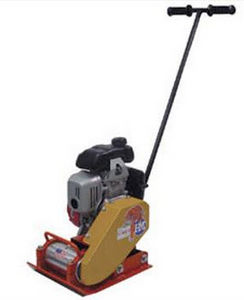

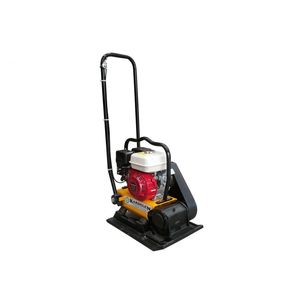

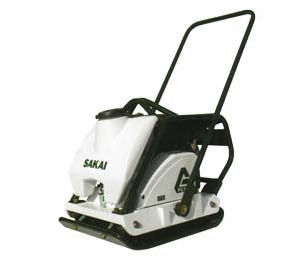

Plate compactor
Extremely simple construction provides toughness never susceptible to accidents, leading to low running cost.
Speedy and continuous compacting work the machine offers reduces working hours and greatly enhances work efficiency.
Easy to handle. With low center of gravity, the machine is also suitable to compact slopes.
The carrier for short-distance transport(Optional specification) is easy to mount and dismount.
|
|

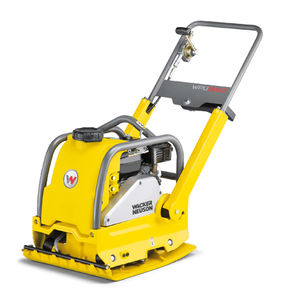

Reversible Plate Compactors
Reverse at full RPM while tackling heavy-duty compaction jobs. These models are flexible and utilize an advanced hydraulic reversing mechanism for unparalleled durability. They're perfect for compacting granular soils and asphalt.
|
|
|
|
|
|
VDR 22 - REVERSIBLE VIBRATORY PLATES
Weight kg 120
Frequency Hz 100
Centrifugal force kN 22
Compact. plane width mm 400 x 700
Engine HONDA Type GX 160
Output kW 4,0/3600
Starting recoil
VDR 26 - REVERSIBLE VIBRATORY PLATES
Weight kg 160
Frequency Hz 95
Centrifugal force kN 26
Compact. plate width mm 450
Engine HONDA Type GX 200
Output kW 4,8
Starting recoil
VDR 26H - REVERSIBLE VIBRATORY PLATES
Weight kg 170
Frequency Hz 95
Centrifugal force kN 26
Compact. plate width mm 450
Engine HATZ Type 1B20
Output kW 3,6
Starting recoil
VDR 63 - REVERSIBLE VIBRATORY PLATES
Weight kg 430
Frequency Hz 70
Centrifugal force kN 63
Compact. plate width mm 750
Engine HONDA Type iGX440
Output kW 11,2
Starting recoil
VDR 63E - REVERSIBLE VIBRATORY PLATES
Weight kg 430
Frequency Hz 70
Centrifugal force kN 63
Compact. plate width mm 750
Engine HONDA Type iGX440
Output kW 11,2
Starting electrostart
VDR 63H - REVERSIBLE VIBRATORY PLATES
Weight kg 440
Frequency Hz 70
Centrifugal force kN 63
Compact. plate width mm 750
Engine HATZ Type 1D50
Output kW 8,1
Starting handle
VDR 63HE - REVERSIBLE VIBRATORY PLATES
Weight kg 450
Frequency Hz 70
Centrifugal force kN 63
Compact. plate width mm 750
Engine HATZ Type 1D50
Output kW 8,1
Starting Elektrostart
|
|

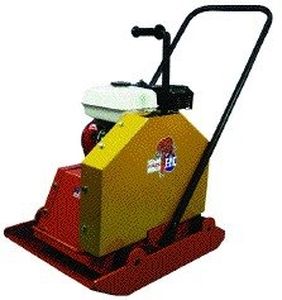

Forward Plate Compactors
These compactors are recognized as the industry standard for top performance, easy handling, low maintenance and long life. Perfect for use on granular soils and asphalt
Reversible Plate Compactors
Reverse at full RPM while tackling heavy-duty compaction jobs. These models are flexible and utilize an advanced hydraulic reversing mechanism for unparalleled durability. They're perfect for compacting granular soils and asphalt.
|
|
D 301 / 11 - VIBRATORY PLATES NON-REVERSIBLE - PRACTIC
Weight kg 60
Frequency Hz 92
Centrifugal force kN 11
Max. speed m/min 25
Length x width compact. plate mm 300 x 520
Engine HONDA Type GX 100
Rated engine power @ RPM kW 2,2/3600
VD 351 / 14 - VIBRATORY PLATES NON-REVERSIBLE - PRACTIC
Weight kg 85
Frequency Hz 81
Centrifugal force kN 14
Max. speed m/min 25
Length x width compact. plate mm 350 x 550
Engine HONDA Type GX 120
Rated engine power @ RPM kW 2,9/3600

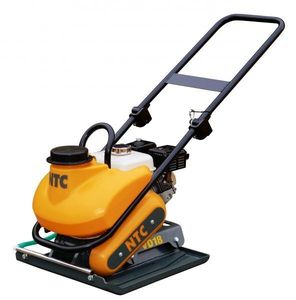

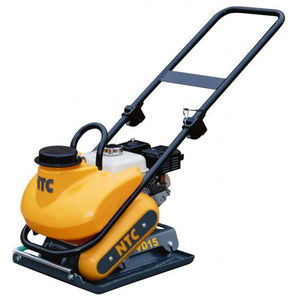

VD 451 / 18 - VIBRATORY PLATES NON-REVERSIBLE - PRACTIC
Weight kg 100
Frequency Hz 81
Centrifugal force kN 18
Max. rychlost m/min 30
Length x width compact. plate mm 450 x 550
Engine HONDA Type GX 160
Rated engine power @ RPM kW 3,9/3429
VD 501 / 20 - VIBRATORY PLATES NON-REVERSIBLE - PRACTIC
Weight kg 110
Frequency Hz 81
Centrifugal force kN 20
Max. speed m/min 25
Length x width compact. plate mm 500 x 550
Engine HONDA Type GX 160
Rated engine power @ RPM kW 4,0/3600
|
|
VD 350 / 16 - VIBRATORY PLATES NON-REVERSIBLE - CLASSIC
Weight kg 105
Frequency Hz 81
Centrifugal force kN 16
Max. speed m/min 25
Length x width compact. plate mm 350 x 550
Engine HONDA Type GX 120
Rated engine power @ RPM kW 2,9/3600
VD 450 / 18 - VIBRATORY PLATES NON-REVERSIBLE - CLASSIC
Weight kg 100
Frequency Hz 81
Centrifugal force kN 18
Max. speed m/min 25
Length x width compact. plate mm 450 x 550
Engine Honda Type GX 160
Rated engine power @ RPM kW 3,9/3600
VD 450 / 20 - VIBRATORY PLATES NON-REVERSIBLE - CLASSIC
Weight kg 120
Frequency Hz 81
Centrifugal force kN 20
Max. speed m/min 25
Length x width compact. plate mm 450 x 550
Engine Honda Type GX 160
Rated engine power @ RPM kW 3,9/3600
VD 450 / 22 - VIBRATORY PLATES NON-REVERSIBLE - CLASSIC
Weight kg 150
Frequency Hz 81
Centrifugal force kN 22
Max. speed m/min 25
Length x width compact. plate mm 450 x 550
Engine Honda Type GX 160
Rated engine power @ RPM kW 4,0/3600
|
|
| ... products without technical information |
| |

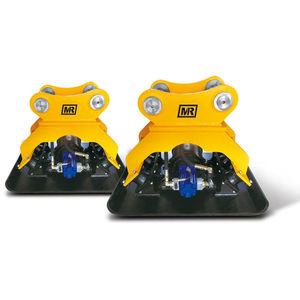

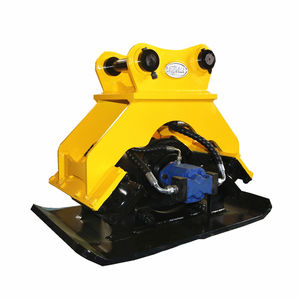

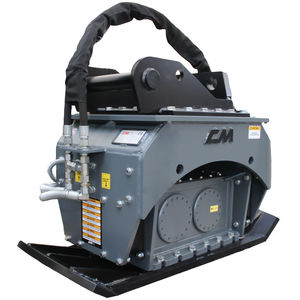

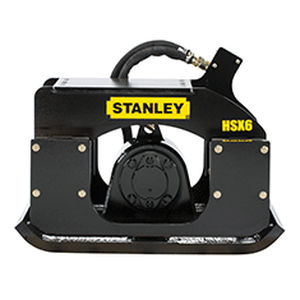

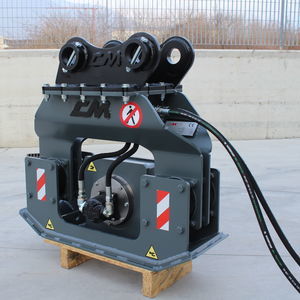

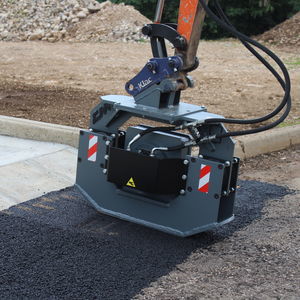

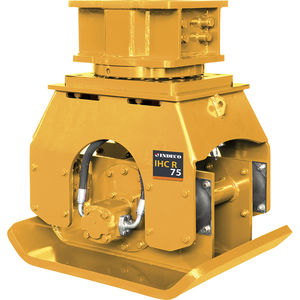

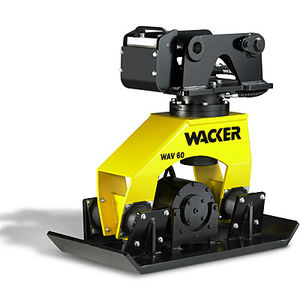

All compactors are ready to operate with the normal fully hydraulic fast-change systems available on the market.
The RAV 700-P is supplied as standard with the fully hydraulic fast change device requested by the customer. The RAV 1000-P standard version does not have a fast change system, but is connected directly to the excavator hydraulics instead. However, this version can also be retrofitted with various fast-change systems.
|
|

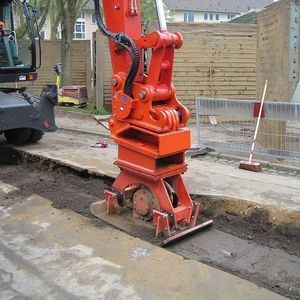

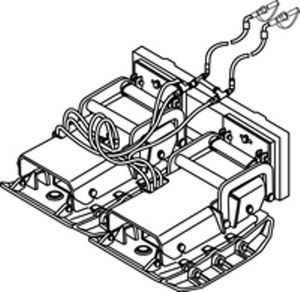

Vibratory Compactors for soil or material compaction in trenching, street repair, site preparation.

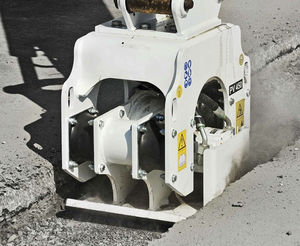

TC SERIES HYDRAULIC COMPACTORS
The TC Series delivers high impulse energy for greater compaction. Rubber isolators, front and rear, are in compression, not shear, providing longer life and lower maintenance cost. Other features include variable impulse force and integral swivel mount that allows more coverage without repositioning carrier.
|
|
Compactor/Driver
Compactor/DriverNPK Compactor/Drivers are designed and built to meet today's demands for greater jobsite productivity, expanding and enhancing the versatility of your backhoe or excavator.
The leader in trench compaction technology, NPK delivers the industry's greatest impulse forces with overall superior performance through hydraulically operated rotating eccentric action. Greater vibration forces generate stress waves in granular or loose soil material, bringing the soil's air to the surface and packing the particles closer together. Greater impulse action works together with the carrier's downward forces to compact cohesive clay-type soils.
|
|
Compactor
Simple operating device
Minimum maintenance
Fast, easy installation
No greasing required
High impulse force
Unique designed shock absorber
Auto oil flow & pressure control valve installed
|
|
The Atlas Copco range of hydraulic compactors covers a broad spectrum of applications and customer needs. They are designed for compacting soil, trenches and slopes and also for diving and extracting piles.
Atlas Copco's hydraulic compactors are much faster and easier to use than hand-held compactors - and therefore much more cost-efficient.
With rig-mounted hydraulic compactors from Atlas Copco, there is no need for personnel in the direct area of operations, thus reducing noise and safety risks. Work in trenches in particular is made safer.
|
|
