It is the world first paperless recorder of the same size in highest resolution 640x480 pixels VGA TFT display, infrared detector, maximum 18 channels, plug & play I/O cards. It has many other unique features too, 12 soft keys for easy operation, universal input, the shortest depth 174mm, well designed portable handle, fully isolated channels, reliable and high capacity storage media CF card
FEATURES:
- 6.4"Color TFT LCD with 640X480 pixels resolution
- The Maximum Channels :
- 18 isolated analog input channels
- Plug & Play Supported I / O card, 6 Slots
- The High Flexibility :
- User configurable l / O card
- Expandable modular architecture
- Flexible screen configuration
- User-Friendly
- Soft keys coupled with interactive dialog simplify
- setup & operation procedures
- Easy - to - access function keys
- Infrared Detector:
- Shut off LCD automatically to prolong LCD life
- and save power while nobody near by
- Save Space:
- Only 174 mm (6.9") depth behind panel
- Various Display Formats:
- Vertical trend , Horizontal trend,
- Bar Graph, Numerical or mixed
- Save Data in Flash ROM,
- Compact Flash Card or PC
- Communication :
- Standard Ethernet and optional RS-232 / 422 / 485
- The Highest Accuracy
- 18 - bit A -D analog input, 15-bit D-A analog output.
- Fast Sampling Rate:
- Within 200 msec for all channels,
- Programmable Filter or Moving Average Sampling Method
- Statistics with Instant , Average , Min./ Max. Values
- Progammable Alarms and Messages available
- Portable / Bench Top Assembly Kit available
Available in low cost 6 channels
|
|
|
|
|
|
Low Cost 6 - channel paperless recorder
VR06 -- 166Wx144Hx174D mm
It is the Low Cost paperless recorder in bigger size 6.4" with highest resolution 640x480 pixels VGA TFT display, infrared detector, maximum 6 channels, plug & play I/O cards. It has many other unique features too, 12 soft keys for easy operation, universal input, the shortest depth 174mm, well designed portable handle, fully isolated channels, reliable and high capacity storage media CF card.
FEATURES
6.4"Color TFT LCD with 640X480 pixels resolution
The Maximum Channels :
6 isolated analog input channels
Plug & Play Supported I / O card, 6 Slots
The High Flexibility :
User configurable l / O card
Expandable modular architecture
Flexible screen configuration
User-Friendly
Soft keys coupled with interactive dialog simplify
setup & operation procedures
Easy - to - access function keys
Infrared Detector:
Shut off LCD automatically to prolong LCD life
and save power while nobody near by
Save Space:
Only 174 mm (6.9") depth behind panel
Various Display Formats:
Vertical trend , Horizontal trend,
Bar Graph, Numerical or mixed
Save Data in Flash ROM,
Compact Flash Card or PC
Communication :
Standard Ethernet and optional RS-232 / 422 / 485
The Highest Accuracy
18 - bit A -D analog input, 15-bit D-A analog output.
Fast Sampling Rate:
Within 200 msec for all channels,
Programmable Filter or Moving Average Sampling Method
Statistics with Instant , Average , Min./ Max. Values
Progammable Alarms and Messages available
Portable / Bench Top Assembly Kit available
Available in high performance 18 channels
|
|
|
|
|
|
Example:
-JUMO LOGOSCREEN 500 cf Entry-level Paperless Recorder with CompactFlash card and life-cycle data management (70.6510)
Measurement data presented numerically as vertical diagrams (with scaling,
numerical display, or as a bar graph)
Presentation of event traces such as "Binary inputs"
On-site availability of measurements in the FLASH memory
Measurement data are retained, even after a power interruption
Saving of data sets on the CompactFlash card
Instrument configuration through the keys or the setup program(CompactFlash card or interface)
Evaluation of archived data with PC evaluation program
Search function for history analysis
Adaptation of the memory cycles to the specific process, using normal,
time-of-day and event operation
Freely configurable inputs
Internal sampling rate 250msec for 3 or 6 analog inputs, minimum storage cycle 1sec
Counters and integrators (6 channels)
Math and logic module (6 channels)
integrated web server
The appearance of the LOGOSCREEN 500 cf is dominated by a 5-inch color display, in which the measurement data can be displayed in a vertical direction, similar to ordinary chart recorders. But unlike ordinary recorders, the LOGOSCREEN 500 cf does not need any chart paper for recording. Measurement data are stored electronically, and are available for evaluation on the spot as well as in the PC.
The integrated life-cycle data management ensures fast traceability of process data referred to specific installations.
...
|
|
|
KR3000 Series are network-compatible paperless recorders with high performance and high operating function employed high visibility 12.1" TFT color LCD display and touch panel operation system. High speed of sampling rate 100ms for 48 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 2GB compact flash card (CF card). As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.
|
|
|

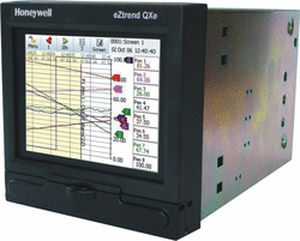

The Minitrend QX Electronic Data Recorder represents the latest in recording technology by providing the ability to capture continuous and batch data electronically, making the analysis of the data easier and faster in addition to being more reliable. The recorder uses a touch-screen interface and graphical icons to make using it simple and easy. The data is recorded in a secure digital format, eliminating interpolation errors that can arise from transposing the data from a chart to a spreadsheet for analysis. With a paperless recorder, the data is easily exported to a spreadsheet program like Excel for further analysis. The paperless solution also provides a graphical display which adds to the capability to quickly understand what is happening in the process, unlike paper recorders, which generally use either scales or digital displays for displaying the process variables.
|
|
KR2000 Series are network-compatible graphic recorders with high performance and high operating function employed high visibility 5.6"TFT color LCD display. High speed of sampling rate 100ms for 12 points and high accuracy of ±0.1% were realized, and measured data is stored into internal memory and maximum 2GB compact flash card. As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available.
The recorder can be used for various applications such as data management, research, development, remote and wide range monitoring by utilizing internet environment.
|
|
6180A: Paperless Graphic Recorder
- Hi-Res 12.1" Color XGA Touchscreen Display with 125ms trend speed
- Up to 96 Mb Internal Flash Memory
- Up to 48 Universal Inputs
- Up to 36 Relay Outputs
- Standard Ethernet Communications - 10/100baseT
- User Editable Custom Screens
- Electronic Locking Media Flap
- Compact Flash or Secure Digital Media Options
- Bridge Lite included as standard
- USB Plug and play
Easy to Use
- Clear, bright display with wide viewing angle
- Touch screen technology with integral stylus
- "Plug & Play" USB peripherals
- Process specific user screens
- Remote connectivity via Bridge software
- Latest removeable media options
- Searchable message log
- Integral stylus
- Multiple languages
|
|
For the display and the record of process data, Fuji Electric offers a complete range of recorders: traditional paper chart recorders (continues or dot recording), paperless recorders and remote I/O modules with PC chart recorder software.
Simple applications but also more complex with alphanumeric messages, totalize and math functions, digital I/O are possible with one recorder of Fuji Electric.
|
|
The new DataChart 1250 paperless recorder features 2 user configurable inputs for measuring DC voltage, current, thermocouples, RTD's and frequency/RPM inputs.
Four internal alarm set points can be programmed to activate the 2 SPDT relay outputs. Data is displayed in real time graphic or digital format on a bright LCD display with LED backlight. Data is stored on CompactFlashTM cards up to 2 Gig in size. Data can be reviewed, printed and exported using the optional Navigator software for Windows. Data can be stored at up to 100 samples per second for both channels. Power is supplied via A/C wall transformer or via optional internal rechargeable NiMH battery pack.
|
|
|
The Minitrend QX Electronic Data Recorder represents the latest in recording technology by providing the ability to capture continuous and batch data electronically, making the analysis of the data easier and faster in addition to being more reliable. The recorder uses a touch-screen interface and graphical icons to make using it simple and easy. The data is recorded in a secure digital format, eliminating interpolation errors that can arise from transposing the data from a chart to a spreadsheet for analysis. With a paperless recorder, the data is easily exported to a spreadsheet program like Excel for further analysis. The paperless solution also provides a graphical display which adds to the capability to quickly understand what is happening in the process, unlike paper recorders, which generally use either scales or digital displays for displaying the process variables.
|
|
- Colour display, screen size 126 mm
- Sampling rate 250 ms, min. storage cycle 1s
- CF card drive
- Version: 3 or 6 universal inputs
- Option: counter/mathematics, dig. inputs and outputs, Ethernetport
Applications
Measuring, storing, visualizing, monitoring, printing and evaluating process data of fast and slow changeable process values:
flow, pressure, level, temperature, pH-value etc
Electronic storage with data transfer via CF card, RS 232/485,
modem or Ethernet-modul
No cost for consumables: paper, printing head, pens
Main attributes
Vertical display format with selectable channel representation:
Numeric, scaled bargraph or large numeric display
Storage mode: normal, event and time per day
Min- and max-limits for each channel adjustable
Data analysis in the KS 3000 or in a PC (evaluations software)
Structured, electronic archiving with fast data retrieval via PC-software
|
|
All analog inputs fully isolated!

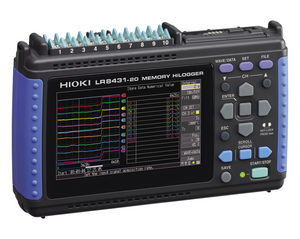

Voltage/temperature loggers with PC networking support
8420-51(8ch), 8421-51(16ch), 8422-51(32ch) All analog channels isolated.
Temperature, voltage, humidity, cumulative pulses, rotations
Max. 32-channel, 100ms high-speed multi-channel data collection
Simultaneous numerical and graphical display
Attachable Printer and I/O Module
Up to 16 HiLOGGERs can be connected and controlled via LAN.
|
|
|
ViewGraf XP combines the best features of a modern data acquisition system with those of a traditional chart recorder at an affordable price. Virtually every aspect of ViewGraf XP is modular, enabling unlimited flexibility, from the removable 11 inch real-time writer and 12.1 inch real-time display panel, to a wide variety of signal conditioners for any type of signal. Record data directly to the onboard high capacity hard drive or to the optional real-time writer. While recording, perform real-time calculations as virtual channels using over 30 standard functions or create any custom function up to 200 characters in length. The onboard Windows XP operating system offers windows familiarity, easy data transfer to a PC network, quick reporting to any printer and removable media capabilities for long term storage.
|
|

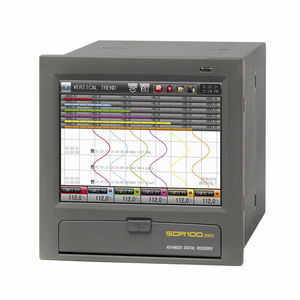

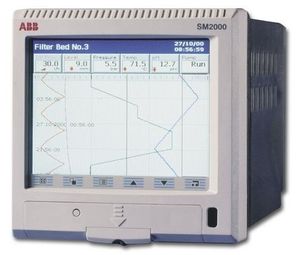

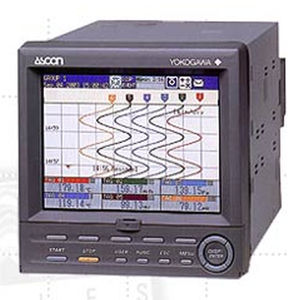

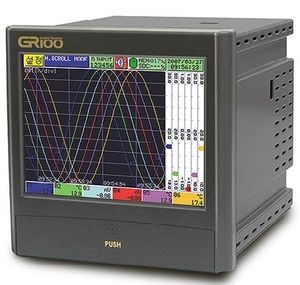

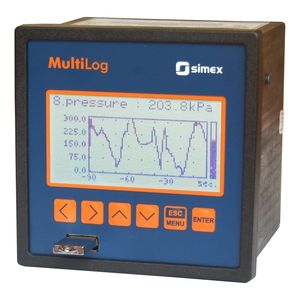

| ... products without technical information |
| |
THE LARGE GRAPHICAL LCD DISPLAYS A DETAILED GRAPH OF RECORDED TEMPERATURE DATA AND CAN ALSO BE DOWNLOADED VIA USB OR OPTIONAL FLASH MEMORY CARD. SETUP IS A SNAP WITH EASY-TO-USE MENU OPTIONS. NO PC INTERFACE REQUIRED AND AC POWER WITH BATTERY BACK-UP ENSURES UNINTERRUPTED LOGGING.
Features: large screen, user-defined display settings, remote probe, 32KB Storage, and audio/visual alarms.
|
|
|
|
