DEFORM™-2D is a Finite Element Method (FEM) based process simulation system designed to analyze two dimensional (2D) flow of various metal forming processes.
It provides vital information about material and thermal flow during the forming process to facilitate the design of products and required tooling. DEFORM-2D has been used by companies worldwide to analyze forging, extrusion, drawing, heading, upsetting and many other metal forming processes. |
|

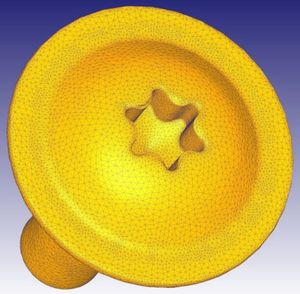

DEFORM™-F3 is an extremely capable process simulation system designed to analyze the three-dimensional (3D) flow of metal forming processes such as die forging, cold heading, upsetting and extrusion. DEFORM-F3 is a practical and efficient tool to predict the material flow in industrial forming operations without the cost and delay of shop trials.
Based on the finite element method (FEM), DEFORM has proven to be accurate and robust in industrial applications for more than two decades. The simulation engine is capable of predicting metal flow, loads and defects with astonishing precision.
The automatic mesh professional generator produces an optimized mesh system with local element size control based on the specific process being analyzed with little to no user input. FEM parameters are derived from the process details supplied by the user. Gravity-based drop positioning allows a user to easily handle ill-defined workpiece location in die forgings. |
|
ANSYS ICEM CFD CAD & STL repair
Post-Processing
A state of the art post- processing and visualization module, ICEM CFD Visual3, provides the CFD professional with easy-to-use powerful result visualization features for structured, unstructured, and hybrid grids. ICEM CFD Visual3 provides an in depth view of data with visualization tools such as cutting planes, contouring, iso-surfaces, streamlines, line plots, data probes and animation. Features such as a CFD function professional calculator and an intuitive based user interface make ICEM CFD Visual3 a powerful interpretation tool of computed results. The ANSYS ICEM CFD Visual3 is a flexible and customizable post-processor that professional interfaces with all the major CFD/CAE solvers.
ICEM CFD Visual3 provides an integrated environment for CAD Geometry, ICEM CFD computational grids, and the flow solution.
ICEM CFD Visual 3 can read files written in the following formats; CGNS, AVS, CFD+ , CFX, DAMAS, Ensight, Fensap, Fieldview, Fluent, Hawk, ICAT, NetCDF, NS3D, Plot3D, STAR-CD, Tecplot, AcuSolve and TDM. Most solvers can output in at least one of these formats, so these actually cover many solvers.
It can also be used to map CFD results on to FEA mesh which can then be exported to FEA solvers such as ANSYS, ABAQUS, NASTRAN, LSDYNA or AUTODYN. |
|
| ... products without technical information |
| |
CoreView Pro is a powerful CogniTens software product used for viewing, analyzing and reporting dimensional measurement information. CoreView Pro enables viewing, analysis, reporting and enterprise wide collaboration based on common dimensional measurement information generated by Optigo and OptiCell dimensional measurement platforms.
CoreView Pro allows remote viewing and analysis of actual shop floor parts as well as assembly and tool measurements as soon as they are produced. CoreView Pro requires no post processing of data before use and automatically presents detailed analysis and comparison with nominal data and design intent.
CoreView Pro provides various part and process analysis tools to evaluate stability and conformity of manufacturing processes as well as unique engineering tools such as Master Part generation and tolerance adjustment. |
|
|
|
