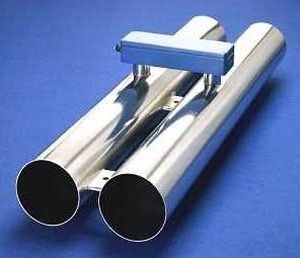

measuring tube inside diameter:
25 mm; 32 mm; 40 mm; 50 mm; 80 mm; 100 mm
flange connection
alternatively with / without integrated transducer
initial smallest measurable flow rate:
0.7 m³/h (diameter 25 mm)
terminal flow rate:
1130 m³/h (40 m/s in diameter 100 mm)
working temperature range:
-40° C... 180 °C
maximum working pressure:
up to 10 bar above atmospheric
materials:
stainless steel; hastelloy, titanium, tantalum
explosion-proof type of protection:
Category 1G, 1D (Zone 0, Zone 20); Category 2G, 2D (Zone 1, Zone 21)
special designs on request
====================================================
Compact units for use in Ex-applications:
for gas: Ex II 1/2 G Ex d e [ia] IIC T6 and
for dust: Ex II 1/2 D Ex iaD20/tDA21 IP6x TX
sensor for use in category 1 (Ex-zone 0 rsp. 20)
transducer housing for use in category 2 (Ex-zone 1 rsp. 21)
measuring tube inside diameter:
25 mm; 32 mm; 40 mm; 50 mm; 80 mm; 100 mm
flange connection
initial smallest measurable flow rate:
0.7 m³/h (diameter 25 mm)
terminal flow rate:
1130 m³/h (40 m/s in diameter 100 mm)
working temperature range:
-40° C... 180 °C
maximum working pressure:
up to 10 bar above atmospheric
materials:
stainless steel; hastelloy, titanium, tantalum
|
|

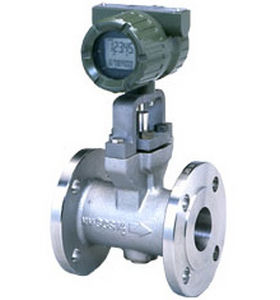

for temperatures from -20...+430°C (-4...806°F) and pressure
up to 100 bar (1450 psig)
non-contact measurement, no mechanically moving sensor parts, maintenance-free
suitable for vertical or horizontal installation
compact and remote electronics (up to 15 m / 50 ft) versions available
flange version DN 15 - DN 300
sandwich version DN 15 - DN 200 in stainless steel or Hastelloy C, low sensitivity to pipework noise and conditions
communication via HART-Protocol
|
|
|
|
|
|
AALBORG®'s VORTEX METERS for steam, liquid, and gas applications have no moving parts to wear or fail. Vortex In-line (WAFER, FLANGE. and INSERTION (fixed or retractable)mounted models need less maintenance. In addition, These units offer high accuracy throughout the flow range.
Unique dual signal processing technology independently measures each vortex, filters out non-flow noise, and increases accuracy and turndown. All
Meters are NIST traceably calibrated and individually programmed.
PRINCIPLES OF OPERATION:
Vortices are created when a fluid passes around a bluff
body as shown below. Vortices are alternately shed on each
side of the body, 180 degrees out of phase to each other,
resulting in an oscillating pressure gradient. As flow increases
the frequency of vortices increases in proportion to the
increased flow thereby creating a linear relationship.
BENEFITS:
RELIABLE: Electronics can be remote- mounted.
No fluid-to-sensor contact.
No holes to clog.
WIDE RANGEABILITY: High flow turndown ratio up to 80:1.
HIGH ACCURACY: ±0.5% of rate.
INCREASED NOISE CANCELLATION: Non-flow noise filtered out.
|
|
|
|
|
|
For years, Vortex Shedding Technology has been a economical and reliable (no moving parts) way to measure liquids, steam and constant density gas flows. Sierra's Volumetric Vortex product line features an inline version, the Model 220 Innova-Flo® and a unique insertion version, the Model 221 Innova-Flo®. The Model 220 is an accurate, repeatable, rugged and reliable volumetric flow meter that provides an economical way to monitor liquid flows, steam or constant density gases, product accuracy is ± 0.7% of rate for liquids and ±1.0% of rate for gases and steam over a 30:1 range. The insertion Model 221 can be made for pipe sizes up to 72 inches and has an accuracy is ± 1.2% of rate for liquids and ±1.5% of rate for gases and steam over a 30:1 range. When you need to economically and reliably measure liquid flows, think Innova-Flo®!
UNIQUE PRODUCT FEATURES
- Volumetric flow monitoring of most gases, liquids and steam
- Rangeable down to Reynold's number of 5000
- In-line sizes from 1/4 " to 8"
- 1% rate accuracy (liquids) or 0.7% for gases over a 30:1 turndown
- In-line sizes from 2 " to 72 " (221 Only)
- Fully field configurable
- Loop powered with 4-20ma output
|
|

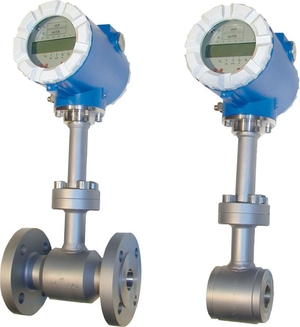

Honeywell VersaFlow Vortex
The VersaFlow Vortex 100 is the only vortex flow meter with integrated pressure and temperature compensation in 2-wire technology. The Vortex 100 provides reliable measurement of standard volumetric and mass flow of both conductive and non-conductive liquids, gases and vapors, even with fluctuating pressures and temperatures. VersaFlow vortex flowmeters deliver excellent long term stability due to their rugged construction.
Typical applications include:
Vapor and saturated steam measurement
Steam boiler monitoring
Compressor output monitoring
Measurement of industrial compressed gases
Measurement of conductive and non-conductive liquids
|
|
|
The RNG Series meter is an insertion-style gas flow meter designed to offer high accuracy measurements over an extremely large flow range. The meter has no moving parts and is virtually maintenance-free once installed. The RNG series is suitable for most gas types, including compressed air, natural gas and wet or "biogas" applications. All meters in this series are loop-powered devices with standard HART® communications for ease of field programming and system integration. Through the use of an internal RTD and an external pressure sensor (optional), the flow meter software will compensate for changes in pressure and temperature, to achieve an accurate mass flow measurement.
|
|

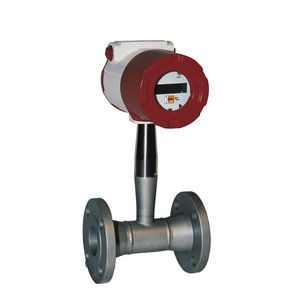

Vortex Meter VTX 2
The VTX2 vortex meter is used for flow and volumetric measurements of conductive and non-conductive fluids, gases and vapours in all industrial branches. Applications include volumetric measurements for balancing (compressed air systems, heat carriers, vapours, chemical products, for example), process control and high throughput applications.
DN 15 - 300 (larger connections upon request)
PN 10 - 40
flow rates 0,4 - 20000 m³/h
accuracy gas and vapor: ± 0,9 %
accuracy liquids: ± 0,6 %
operating temperature according to design -40°C to 260°C
|
|
KOFLOC FM0101/0102/0103/0105, FM31
The KOFLOC Karman Vortex Flow Meter FM0101/0102/0103/0105 SERIES is ideal for measuring pure or deionized water and chemicals as low as 0.5L/min. PPS resin used for body material and lack of moving parts assures reliability and durability. TEFLON®/PFA MODEL FM31 SERIES is also available for ultra pure water applications such as in semiconductor industry.
FEATURES
- Rohs compliance - PPS resin - Easy maintenance
- Compact & light - Acidic/Basic medium - Minimum pressure loss
- Corrosive resistance
APPLICATIONS
- FA instruments - Semiconductor manufacturing - LCD
- Housing material production - Medicine production - Chemical industry
- Biomedical applications - Environment systems - Food processing
- Agricultural/Botanical applications
|
|
|
Racine Vortex offers high-accuracy vortex-shedding flow meters for a number of liquids and gases. Meters are available in wafer (in-line, 1/2" to 4" line size) or insertion styles (4" line size and higher). Vortex sheding technology contians no moving parts, and th meters are virtually maintenance-free once installed. Loop-powered gas flow meters offer HART communications, temperature compensaiton for mass flow measurement, CE-mark and optional ATEX hazardous area certification. Liquid flow meters also carry the CE mark.
|
|

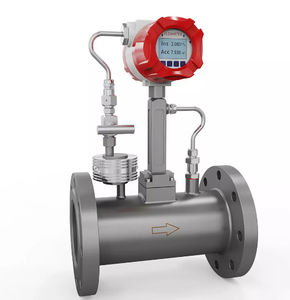

SITRANS F X Vortex flowmeters provide
accurate standard volumetric and mass flow
measurement of steam, gases, conductive
and non-conductive liquids. The Vortex flowmeter
functions as an “All-in-one-solution”
with integrated temperature and pressure
compensation.
It is specially designed for applications that
require reliable flow measuring independent
of pressure, temperature, viscosity
and density. This makes it perfectly applicable
in especially the chemical industry,
HVAC & power, food & beverage, oil & gas
and pharma.
The SITRANS F X Vortex flowmeter is available
as flanged or sandwich version.
|
|
Honeywell VersaFlow Vortex
The VersaFlow Vortex 100 is the only vortex flow meter with integrated pressure and temperature compensation in 2-wire technology. The Vortex 100 provides reliable measurement of standard volumetric and mass flow of both conductive and non-conductive liquids, gases and vapors, even with fluctuating pressures and temperatures. VersaFlow vortex flowmeters deliver excellent long term stability due to their rugged construction.
Typical applications include:
Vapor and saturated steam measurement
Steam boiler monitoring
Compressor output monitoring
Measurement of industrial compressed gases
Measurement of conductive and non-conductive liquids
|
|
|
|
|
|
Foxboro vortex flowmeters are the highest-performing flowmeters on the market. These instruments are designed to be flexible and reliable in harsh process environments. Models 83 and 84 are available in sizes ¾” to 12” flanged; ¾” to 8” wafer; and 2” and 3” sanitary. No other vortex flowmeter measures up for accuracy in liquid, gas and steam for temperatures up to 800oF (430oC).
Patented flexibility tuning improves accuracy under every operating condition. Additional benefits include real-time Reynolds number correction; correction for piping effects; adaptive filtering for noise rejection at varying flow rates; automatic low-flow cut in; tunable for specific operating conditions; and K-factory-corrected for temperature. They also have DirectSense™ technology: Performance and reliability backed with a lifetime sensor warranty.
Features:
- Unique vortex sensing with a lifetime warranty, including the option for a removable sensor without shutting down the process
- Patented algorithms to improve performance in real-world applications
- Broad offering in terms of sizes, materials and end connections, including models that are 3A approved for sanitary applications
- Widest flow range available today
- Ease of configuration using FDT technology
|
|
|

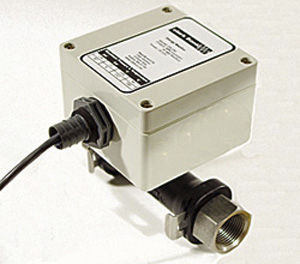

These vortex shedding flowmeters are designed for coolant or water flow from ¼ to 4 inch pipe sizes. Optionally, ¾ to 4 inch sizes have temperature transmitters. In ¼ and ½ inch sizes, 316 Stainless Steel bodies and Kalrez seals make it suitable for low viscosity corrosive fluids. They cost a lot less than mag meters and they are OK with high particulate. Simple, reliable and inexpensive.
|
|

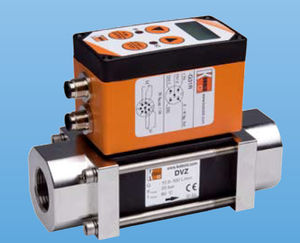

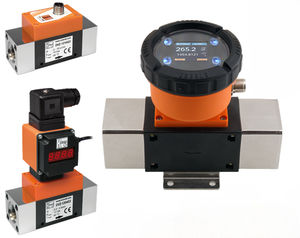

OEM Flow sensor type 200
0.9 ... 150 l/min
The flow sensor of this range is based on the principle of Karman’s vortex trail. The shedding of vortices on the damming body in the flow is directly proportional to the speed of the flow. A piezoelectric paddle detects the generated vortex and analyses the values with the integrated electronic.
Alternatively, are versions with integrated temperature measurement with PT1000 is available.
|
|
|

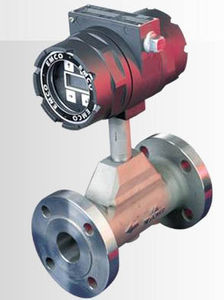

Whatever your process or system requirements, there is a flowmeter to suit your needs from the Spirax Sarco range. Our flowmeters have an unrivalled reputation for accuracy, turndown and reliability. They are versatile, being suitable for steam as well as most liquids and gases. A comprehensive selection of flow computers and display units, all of which can be linked to plant and building management systems, complement the range.
|
|

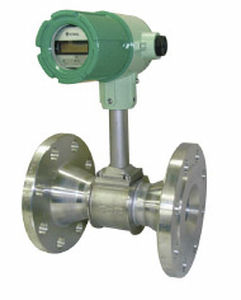

Presenting vortex flowmeters and flow computers. Measure the flow rates of a variety of fluids, including steam, air and water.
Operating Pressure Range: 0 - 725 psig
Operating Temperature Range: -330 - 750 °F

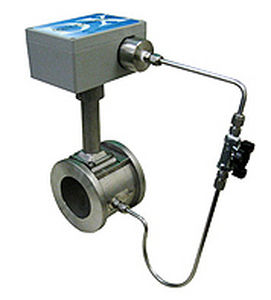

Measures flow by means of the regular vortices (Karmen vortex) generated downstream of an object as fluid flows around the object.
Vortex flowmeters can be used to measure various fluids, such as liquids and gasses, and are particularly suitable for measuring steam.
Application Areas
Measures the flow of steam, condensate, water, etc.
|
|
|
The RWG and RWBG Series meters are wafer-style in-line flow meters designed to offer high accuracy gas flow measurements with very low pressure drop. The meters have no moving parts and are virtually maintenance-free once installed. The RWG series is suitable for most gas types. The RWBG series is similar in construction but optimized for low-pressure "wet gas" or "BioGas" applications, typically CH4 + CO2 mixtures. All meters in these series are loop-powered devices with standard HART® communications, CE mark and optional ATEX hazardous area certification. Through the use of an internal RTD and an external pressure sensor (optional), the flow meter software will compensate for changes in pressure and temperature, to achieve an accurate mass flow measurement.
|
|
|
Racine Vortex offers high-accuracy vortex-shedding flow meters for a number of liquids and gases. The product line is quite unique: by incorporating ultrasonic technology, the meter's bluff body ("strut") has a considerably smaller footprint compared with other vortex-shedding flow meters. This results in very low pressure drop in the system. Meters are available in wafer (in-line, 1/2" to 4" size) or insertion styles (4" line size and higher). This vortex-shedding technology involves no moving parts, and the meters are virtually maintenance-free. Loop-powered gas flow meters offer HART communications, temperature compensation for mass flow measurement and gas flow standardization, CE-mark and optional ATEX hazardous area certification. Liquid flow meters also carry the CE mark.
|
|
The RWS Series meter is a wafer-style in-line flow meter designed to offer high accuracy measurements of saturated steam flow in a variety of applications. The meter has no moving parts and is virtually maintenance-free once installed. All meters in these series are loop-powered devices with standard HART ® communications for ease of field programming and system integration.
Racine Vortex flow meters utilize the smallest strut in the industry, which allows for high levels of sensitivity; superior performance at very low flow rates; high turndown ratios; and low pressure drop.
Through the use of an internal RTD and an external pressure sensor (optional), the flow meter software will compensate for changes in pressure and temperature, to achieve an accurate mass flow measurement.
|
|
|
|
|
|
design ZG7 (standard sensor):
probe with probe tube diameter of 21.3 mm with sliding probe guide piece for installation in pipelines/ducts; probes with an installation length of 500 mm or 1000 mm,
probe material:
stainless steel for use in non-hazardous areas
design ZG2 (standrard for mobile measurement):
extendable probe with probe tube diameter of 42 mm for greater insertion depths and mobile measurements
design ZG4 (universal sensor):
probe with probe tube diameter of 21.3 mm, with sliding probe guide piece for installation in pipelines/ducts
design ZG5:
probe with probe tube diameter of 21.3 mm, with lapped flange and welded, integral flange
for making contact with the medium
initial smallest measurable value:
approx. 0.5 m/s
terminal measurable value:
40 m/s; 60 m/s and 80 m/s
working temperature range:
-20 °C... 100 °C; 180 °C; 240 °C
maximum working pressure:
3 bar above atmospheric
explosion-proof type of protection:
EEx ia IIC T6 for zones 1 and 0
probe materials:
stainless steel, titanium, tantalum and HASTELLOY
necessary diameter of insertion opening: 42 mm
====================================================
Compact units for use in Ex-applications:
for gas: Ex II 1/2 G Ex d e [ia] IIC T6 and
for dust: Ex II 1/2 D Ex iaD20/tDA21 IP6x TX
sensor for use in category 1 (Ex-zone 0 rsp. 20)
transducer housing for use in category 2 (Ex-zone 1 rsp. 21)
design ZG8:
probe with probe tube diameter of 21.3 mm, with sliding probe guide piece for installation in pipelines/ducts, probes with different lengths from 500 mm up to 2000 mm
|
|
| ... products without technical information |
| |
|
|
|
|
design ZG7 (standard sensor):
probe with probe tube diameter of 21.3 mm with sliding probe guide piece for installation in pipelines/ducts; probes with an installation length of 500 mm or 1000 mm,
probe material:
stainless steel for use in non-hazardous areas
design ZG2 (standrard for mobile measurement):
extendable probe with probe tube diameter of 42 mm for greater insertion depths and mobile measurements
design ZG4 (universal sensor):
probe with probe tube diameter of 21.3 mm, with sliding probe guide piece for installation in pipelines/ducts
design ZG5:
probe with probe tube diameter of 21.3 mm, with lapped flange and welded, integral flange
for making contact with the medium
initial smallest measurable value:
approx. 0.5 m/s
terminal measurable value:
40 m/s; 60 m/s and 80 m/s
working temperature range:
-20 °C... 100 °C; 180 °C; 240 °C
maximum working pressure:
3 bar above atmospheric
explosion-proof type of protection:
EEx ia IIC T6 for zones 1 and 0
probe materials:
stainless steel, titanium, tantalum and HASTELLOY
necessary diameter of insertion opening: 42 mm
====================================================
Compact units for use in Ex-applications:
for gas: Ex II 1/2 G Ex d e [ia] IIC T6 and
for dust: Ex II 1/2 D Ex iaD20/tDA21 IP6x TX
sensor for use in category 1 (Ex-zone 0 rsp. 20)
transducer housing for use in category 2 (Ex-zone 1 rsp. 21)
design ZG8:
probe with probe tube diameter of 21.3 mm, with sliding probe guide piece for installation in pipelines/ducts, probes with different lengths from 500 mm up to 2000 mm
|
|
|
|
|
|
HVA:
HVA is for use in category 3G (zone 2)
hand-held instrument with IP64 type of protection to which all Höntzsch vortex sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HVA Li-recharchable battery, running time approx. 20 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
|
|
HVA:
HVA is for use in category 3G (zone 2)
hand-held instrument with IP64 type of protection to which all Höntzsch vortex sensors
can be connected.
high-contrast LCD liquid crystal display, measured value display 13 mm high four-digit with decimal point as well as affiliated display unit, display of duration of measurement in seconds 6 mm high, adjustment and configuration instructions, operator's information, status display 3 mm high.
interface RS232 for direct transfer of the stored measured values to a PC.
instantaneous values every second.
Display of standard velocity v, standard volume flow V/t or temperature (resolution 1 °C), selectable.
Display of instantaneous value in the START and also START/STOP mode also with long-term measurement.
Display units:
m/s, m³/h, l/min, °C.
power supply HVA Li-recharchable battery, running time approx. 20 hours.
analog output 0 ... 4 V
data and measured value storage for 1000 data records.
When being stored the data records are automatically marked with a group number (max. 99)
and serial number.
|
|
|
|
