Created by the same engineers and manufactured side-by-side with the dependable WEMCO and WEMCO-Hidrostal pumps your already have in service, the WEMCO Model CF Chop-Flow pump is just as rugged and dependable. It is a cost-effective addition to the problem-solving, trouble-free WEMCO pumps you installed years ago. The WEMCO Model CF Chop-Flow pump chops as it pumps, keeping oversized solids and stringy material from clogging your downstream process.
Features / Benefits
- Designed from scratch as a WEMCO Pump, the Chop-Flow pump brings the chopper pumps' segment the same kind of user-friendly pumps you've trusted from WEMCO for over 60 years - rugged, reliable, dependable, and maintenance free.
- High hydraulic effeciency.
- Wrap around nose vanes insure effective chopping at the center of the impeller, without the need for an impeller nut.
- Rear pump out vanes with cutting slots repel and chop any material that gets behind the impeller.
- The wearing parts - the cutting bar and rear cutting teeth - are easily and inexpensively replaceable.
- All clearances are easily adjustable externally, without the need for 2 people and the hassle to unbolt and move the pump and/or motor as required by other designs.
- Top quality materials and castings throughout - no flimsy fabricated parts to corrode.
- Although the pump is completely new technology, it is dimensionally interchangeable with your present pump. Simply remove the old technology, and the Chop-Flow will bolt up to your existing piping and coupling.
- Available with packing and all conventional mechanical seals.
|
|
The new Polylok pumps are now available in 1/4'', 1/3'', 4/10'' and 1/2'' HP sizes, including both effluent and sewage ejector models. These new pumps are designed to deliver the dependable service and long life expected from any product bearing the Polylok name. They include features required for residential and light commercial applications, as well as several new features (including an all ball bearing construction, and an integrated clip to hold the float switch) not normally found in pumps of this size.
FEATURES:
- Non-Toxic Oil
- All ball bearing construction
- Stainless steel fasteners and motor shaft
- Integrated clip to hold the float switch cable
- 2'' NPT vertical discharge
- Vortex impellers
|
|
Type: single-stage, single-flow, semi-open channel impeller
Consistency: up to 4%
Head: up to 75 m
Flow rate: up to 1,000 m³/h
Pressure: up to 16 bar
Temperature: up to 120°C
|
|
|
All Vanton CHEM-GARD pumps are available with recessed, dynamically balanced impellers, custom sized and trimmed to suit the shapes, dimensions and physical properties of included solids. CGV pumps are rated for flows to 900 gpm (205 m3/hr), at heads to 240 feet (73 m) with performance for individual applications dependent on the characteristics of the fluid handled. They can be furnished in the full line of thermoplastics and are designed for clog-free pumping of fluids with soft, hard or stringy materials - even with solids to 3 inches (75 mm) in diameter.
|
|
Features :
WIDE RANGE OF APPLICATIONS:
- Food Processing Solids
- Waste Water Treatment
- Pollution Control
- Slurries
- Industrial Process
- Solids
CAPABILITIES:
- Capacities to 1600 GPM
- Heads to 170 Feet TDH
- Temperature to 250 d. F
- Back Pull-Out Construction
- Fully Recessed Vortex Impeller
- External Impeller Adjustment
- Packing or Mechanical Seal
CONSTRUCTION:
- Cast Iron
- 316 Stainless Steel Fitted
- All 316 Stainless Steel
- Alloy 20
- CD4MCu
|
|
Operating Limits:
-Max.suction head:9m
-Max.liquid temperature:60°C
-Max.ambient temperature:40°C
-Continuous duty
Motor :
-Two-Pole induction motor(n=2900r.p.m.)
-Insulation Class B/F
-Protection IP44
Material :
-Pump body: Cast Iron
-Motor Bracket:Aluminium(or with brass insert)
-Impeller: Brass
-Motor Shaft: Hi-Cr plated 45# Steel/2Cr13# Stainless Steel/S.S#304 Welding shaft
-Mechanical seal: Ceramic/Graphite
Application:
·They are recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive to the materials from which the pump is made.
·For their reliability, simplicity of use and economy they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens.
|
|
ELECTRIC SUBMERSIBLE PUMP SM-VX SERIES
Submersible pumps series SM-VX for professional use, particularly reliable with generous motor specification and hard-faced mechanical seal. The proven VORTEX system allows the clearing of dirty water containing suspended solids
|
|
APPLICATIONS
* DECANTATION PIT, SEWAGE PIT AND SLURRY COLLECTION PIT PUMP OUT.
* PUMP OUT OF LAVATORY/FOUL WATER WITH POSSIBLE FLOATING SOLIDS CONTENTS.
* DOMESTIC AND INDUSTRIAL LAVATORY/BLACK WATER HANDLING SYSTEMS.
DESIGN ENGINEERING
* DUAL CHAMBER ELECTRIC PUMP (MECHANICAL SEAL, MOTOR).
* OIL BATH MOTOR (BIODEGRADABLE AND DIELECTRIC) FOR COOLING AND BEARING
LUBRICATION.
* SEALING RING - ENGINE FACE.
* OIL BATH MECHANICAL SEALS.
* PERMISSIBLE DRAUGHT OF WATER: 5 m
* IP 68 PROTECTION CLASS.
* CLASS “F” INSULATION.
* MAX. PUMPED LIQUID TEMPERATURE:
25°C with partially submerged pump.
50°C with totally submerged pump.
* BY PASS SECTION: 30 mm. - TIGER 70
35 mm. - TIGER 80
50 mm. - TIGER 100 - 150
|
|
Description.
We plan and manufacture high quality submersible electro pump, using the best materials available on the market, Such materials are chosen evaluating the characteristics of the fluid: grey lamellar graphite cast iron …INOX AISI 316 Steel, Duplex, Hasteloy and Marine Bronze. Reliability and duration of Faggiolati products are granted by a perfect balance of the shaft and the impeller and by certified vibration and waterproof resistance test under high reliability.
The product range includes electro pumps which runs from 0.5 Kw to 110 Kw with 2-4-6 poles (50 and 60 Hz) Different type of hydraulic are: Single channel – channels – high efficiency vortex type – drainage – grinder.
Uses
The right type of material is chosen taking in consideration the numerous type of hydraulics , it allow the use of our pump, on salty water and different type of treatment plants as: desalination plant, sewage water raising, pumping and draining of aggressive liquids, industrial waste waters
|
|

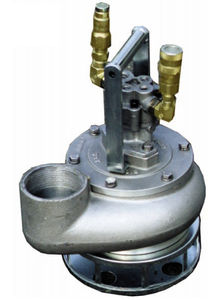

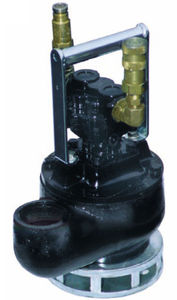

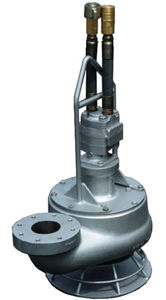

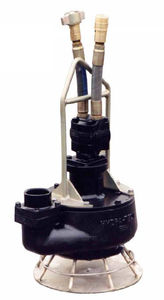

Gorman-Rupp hydraulic submersible pumps are designed for trash-handling, dewatering applications and for pumping dirty liquids such as mining and paper plant wastes. They are also excellent for pumping sewage from digester and holding tanks as well as sewer bypass. Because they operate without using electricity, they are well suited for applications where electricity is hazardous.
Specifications
Size: 3" (75 mm), 4" (100 mm), 6" (150 mm)
Max Capacity: 1,600 GPM (101 lps)
Max Head: 175' (53 m)
Max Solids: 5" (127 mm)
Max Temperature: 170 F (77 C)
Materials of Construction: Aluminum, Ductile Iron
|
|
FBV Series
Sewage Effluent, Vortex, Non-clog & Cutter Pump
Motor
a.Oil-free motor with thermal and over-current protector.
b.Asynchronous motor 3 phase, 2 pole, 50Hz/2850rpm or
60Hz/3450rpm.
c.Insulation class F=155ßC, Protection Type IP68.
Construction
a.Completely sealed water resistance cable entry.
b.Durable Cast lron casing for superior heat dissipation.
c.Highly wear resistance heat treated 410 stainless steel shaft.
d.Double mechanical seals (lower silicon carbide v silicon carbide,
upper carbon/ceramic) for superior wearing resistance and to ensure
durability.
Pump
a.Rigid ductile iron impeller, abrasion resistant, in various design.
b.Max. liquid temperature: 40ºC (104ºF)
c.Max. submerged depth: 10m (33ft)
d.Cable: 10m (33ft) PVC or HO7RN-F upon request.
e.Guide Rail Fittings are available upon optional request.
|
|
Operating Limits:
-Max.Depth: 10m
-Max.fluid temperature: 60°C
-Max.ambient temperature: 40°C
-Continuous duty
Material:
-Pump body: Cast iron
-Impeller: Cast iron
-Motor shaft: 45#Steel/Stainless Steel
-Double Mechanical seal: Silicon/Silicon+Ceramic/Graphite
Application:
·Drainage and sewage applications
·Wastewater removal or transfer
·Dewatering
·Rcommended for usage in cellars, underground car parks, drains, cesspits etc.
|
|
