Wall formwork Logo alu
Light formwork for building sites without crane and supplement to Logo 1
* Fast connection of panels with wedge clamp
* Massive frame profile guarantee of stability and long-live
* Panel 90 x 270 cm = only 60 kg, only 2 ties at panel hight
* Max. concrete pressure 60 kN/m²
* Quick fixing of accessories thanks to multi functional cross sections
* Fully compatible with Logo steel frame
* Multi-purpose panel for corners, columns, stop-ends
Panel widths (cm): 90 / 75 / 60 / 55 / 50 / 45 / 40 / 30
Panel heights (cm): 270 / 135
Frame depth (cm): 12
Plywood: 15 mm thick, 11-ply Finnish birch plywood
Max. concrete pressure: 60 kN/m² according DIN 18218
|
|
Modular / GE
Universal Formwork
Housing- and business buildings, industrial contsruction, civil engineering works, tank construction
* Conception as manual- and large-size formwork system
* The principle of a building kit guarantees systematic forming also for complicated layouts
* Known as long-live system due to the massive flat steel frame
* Fully compatible with all other PASCHAL Systems
* Keybolt as universal connecting piece for panels and accessoires
* Large-size panels GE
Panel widths (cm):
Modular 100 / 75 / 60 / 50 / 45 / 43 / 40 / 37 /
35 / 33 / 30/ 25 / 24 / 20 / 15 / 12 / 10 / 6 / 5
GE 200/150
Panel heights (cm): Modular 150/125/75/62,5
GE 275/250/150/125
Frame depth (cm): Modular 7,5; GE 19,5 (7,5 + 12 Girder)
Plywood: 15 mm thick, 11-ply birch plywood
|
|
Wall formwork Logo.3
Large size-system for housing- and business buildings, industrial construction, civil engineering works, tank construction
* Low number of holes for ties
(0.62 holes for ties per m²)
* Fast connection of panels with wedge clamp
(weight only 1,6 kg)
* Profiled flat steel frame guarantees stability and long-live
* Fast fixation of accessories with multifunctional cross-sections
* Standing and lying usage of all panels
* Multi-purpose panel for corners, columns, stop ends
* Balanced range of panels
Panel widths (cm): 240 / 135 / 90 / 75 / 60 / 55 / 50 / 45 /
40 / 30 / 25 / 20
Panel heights (cm): 340 / 305 / 270 / 240 / 135 / 90 / 75
Frame depth (cm): 12
Plywood: 15 mm thick, 11-ply Finnish birch plywood
Max. concrete pressure: 70 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 6
|
|
These are moulds of various dimensions and capacities that are used for the construction of concrete walls. The choice of models and sets allows you to cover every construction need and demand thus accelerating all jobsite operations.
The supporting structure is a steel frame which was painted via immersion, and the counter-cast surface area is in plywood treated with protective phenolic film.
|
|
Framax is the framed formwork system that achieves a continuous 15 cm grid with no more than a small number of panels, upright or on their sides.
All connectors and all accessories fit seamlessly into the grid – for short forming times and high cost efficiency.
|
|
MANTO
Large-frame formwork
Quality, functionality and flexibility are the decisive factors for a formwork system. MANTO exhibits all three to a high degree and is therefore one of the most frequently used formwork systems in industrial construction and housing projects.
|
|
|
Mammut is the strong and sturdy modular formwork system for big and medium-sized contractors who are involved in industrial and civil engineering projects as well as in the construction of administration and residential buildings.
|
|

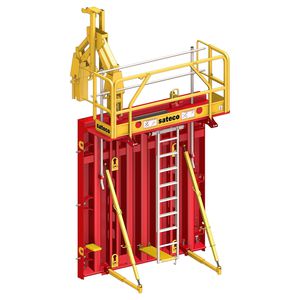

The SC 9015 Panel
A new panel proud of its predecessors!
The SC 9015 panels are compatible with the entire SATECO range (even circular formworks). Accessories compatible with SC 9010 II panels.
|
|
|
|
|
|
The MAXIMO panel formwork succeeds in minimizing imperfections in the concrete finish and creates a neat joint and tie arrangement.
By means of a newly developed conical tie system, the wall formwork system does not require any spacer tubes and work takes place from only one side. This means maximum reductions in expense and considerable savings of time and resources.
Apart from the advantages of a panel formwork regarding flexibility and fast shuttering times, MAXIMO opens up new possibilities of fashioning visible concrete surfaces through a particular arrangement of individual elements. The uniform tie arrangement continues to underline the very achievable results even more.
Advantages
1. Centrally-positioned tie point:
The systematics of the central tie point require that all anchor positions must be filled. This avoids any errors during shuttering and, among other things, plugging of those tie points not actually being used no longer applies. Plugged tie holes are thus a thing of the past.
2. Ties installed from one side:
Through the use of specially-designed ties, a worker on the opposite side is not required as well as conventional tie sleeves no longer being necessary.
3. Neat joint and tie arrangement:
Apart from the flexibility of a panel formwork, PERI MAXIMO provides the possibility of designing visible concrete surfaces by a skilful arrangement of individual elements. In addition, the uniform tie pattern highlights the finish even more.
|
|
PERI TRIO
The Most Successful Panelized Wall Formwork System Worldwide
High labour costs on construction sites increasingly require easier and faster formwork systems.
The number of components to be moved determines the shuttering times and thus the costs of construction. TRIO elements need one and the same coupler for all connections which means a time-consuming search for the correct part is avoided.
PERI engineers placed great importance during the development of the TRIO system to reducing shuttering time. TRIO is a versatile formwork system with few components, which meets and exceeds the demands of the job site in a simple way.
|
|
|
|
|
|
Trapezoidal Girder Formwork TTR/TTS with plywood or with steel face (60 kN/m²-80 kN/m² according DIN 18218)
Adjustable circular formwork for sewage plants, tank constructions, adventure baths, towers, stairwells, garage entrances, walls for gardening and landscaping
* Continously adjustable from 2 m to 5 m and from 5 m to infinite
* Only 0.28 to 0.55 holes for ties per m²
* Immediately usable = perfect forming times
* Absolutely round and accurate dimensions
* System solutions for haunches and slope balance
* Compatible with all other PASCHAL systems
Trapezoidal Girder Formwork with plywood:
Panel widths (cm): Segments 125,5 / 110,5; 240 /230 (222);
60 / 57,5; 62,5 / 55,5
Panel heights (cm): 300 / 150 / 75 / 37,5
Frame depth (cm): 40 (straight condition)
Plywood: 18 mm; 21 mm
Max. concrete pressure: 60 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 7
Trapezoidal Girder Formwork with steel face:
Panel widths (cm): Segments 240 / 230; 120 / 115; 60 / 57,5
Panel heights (cm): 300 / 150 / 75 / 37,5
Frame depth (cm): 40 (straight condition)
Plywood: Steel sheet
Max. concrete pressure: 80 kN/m² according DIN 18218
|
|
|
|
|
|
SVELT is the modular formwork system that allows for the realization of circular-base walls. The walls circumference can be regulated thanks adjustable rods. Once the radius has been set the modules will not deform, thus allowing for an additional level with the same curvature. In this way SVELT can also be used as a climbing formwork. Its versatility also allows for the realization of wall brackets with an “s” shape ovoid base as well as linear wall brackets. With its 6000 kg/m2 capacity, the new SVELT is a much more reliable tool to toughness and stability the two rods and the supporting steel omegas allow lifting and repositioning without neither a change in curvature or deformations. This allows it to be also used as a climbing formwork.
The counter-cast treated multilayer surface with phenolic film can have thicknesses that vary depending on the curvature that is to be applied to SVELT.
Once the casting is done, the system, being composed of modules with a maximum width of 240 cm, can be transported using any kind of truck.
|
|
|
The circular formwork H 20 is the practical choice for smooth, circular walls and radii of any size greater than 3.50 m – universally adaptable.
|
|
RONDA
Circular formwork
When it comes to shuttering curves, RONDA is the No. 1 choice. For RONDA displays a number of unbeatable features for exceptional precision and economy. The RONDA system is based on rugged, ready-to-use elements with an inbuilt spindle system that permits the realization of any desired radius (upward of 2.75 m) with millimeter precision. With two widths available for the inner and outer elements and three panel heights, the system can always be adapted perfectly to the building geometry in question.
|
|
Circular columns are above all required in structural and civil engineering projects.
In skeleton constructions, entrance halls etc. circular columns are a special architectural feature. A second area of application are underground car parks, water basins and bridge piers.
Almost always a perfect concrete finish is required, since finishing works are virtually never carried out on these columns
|
|
Coffrage CTR 3010
SAFETY All the accessories of safety are integrated into the panel including protection front face. Extensible railing for an optimal safety casing Sheet QUALITY ép. the 5 mm for best finished fast concrete vertical Assembly and of high degree of accuracy. Rigid ROBUSTNESS Framework with vertical stays out of V with 2 levels of spacers One more: its use with concrete car placing. SIMPLICITY Accessories entirely colisables Level of passage ergonomic spacers Only one assembly tool. The RANGE Panels HT 3,00 m Under rise HT 1,50 m Under rise HT 1,00 m Spillplates HT 0,50 m
|
|
