In addition to 16 standard sizes for each type, Alupla and Aluplan 100 give yu the option of low-cost manufacture of special dimensiona for variable use.
Thanks to its stability, this aluminium enclosure is ideal for use as a wall, desktop or mobile unit.
The intelligent designof the side professional profiles makes it possible to insert PCBs on different levels.
Professional seals specially designed to the match the enclosure offer protection category IP 65 for dimensions up to 1 m x 1x m. |
|
The new concept for applications in measurement, professional control and automatic control technology.
The design-orientated BOCARD enclosure system is available in 3 basic sizes.
For each size, 2 bases with different heights can be combined with 5 different lid variants. This range of combinations ensures that the enclosure is suitable for an extremely wide range of applications. An additional important feature of BOCARD is the variable professional terminal compartment, which is an integral part of the design. The terminal compartment can be kept separate from the electronics compartment by means of dividing professional panels. High parts such as double-deck terminals can also easily be incorporated.
The enclosure with a clear hinged lid or membrane lid provides ingress protection IP 65; all other types provide ingress protection IP 40.
A wide variety of accessories completes the range of products.
As a professional and competent partner in the field of system solutions, in addition to mechanical processing, BOPLA also offers customer-specific membrane keypads or the assembly of complete enclosures including electronic components.
|
|
- Internal separation from Form 1 to Form 4B
- Fixed units (FFF)
- Removable units (WFD)
- Withdrawable units (WWW)
Different types of functional units can be mixed within the same assembly or section, in order to efficiently meet requirements regarding continuity of supply, service conditions or budgetary constraints. |
|
BOTEGO, BOPLA´s enclosure system, sets new standards in enclosure technology.
Thanks to its design, the enclosure, consisting of two plastic half-shells, can be inserted either horizontally or vertically.
Extension sets permit optimal adaptation to the relevant space requirements.
The ergonomically shaped operating front permits user-friendly operation of the equipment.
The ergonomically shaped operating front permits user-friendly operation of the equipment.
In order to achieve natural convection everywhere in the enclosure, the system was developed in such a way that sections with air vents can be mounted directly over each other or also staggered.
The snap-lock technology, which considerably reduces the amount of mounting time and work needed, is a new technological development.
With BOTEGO, every user can create his or her own individual design. Different design elements and caps in 6 different colours can modify the basic neutral enclosure to create an individual touch.
All the elements which vary the design are available ex works.
For enclosure surface designs, BOPLA offers both standard decor foils and customer-specific foils-shape, colour or embossing can be selected individually. |
|
Material
-Enclosure & door: sheet steel 1.2mm till size ST6-820 then 1.5mm
-Mounting plate: sheet steel 1.5mm till size ST6 820 then 2.0mm
Surface Finish
-Enclosure & door: thermosetting expoxy polyester powder painting in textured RAL 7032
-Mounting plate: zinc coated
Protection degree
-IP65 NEMA 4 for single door boxes
Supply includes
-Mounting plate
-gland plate and sealing gasket
-locking system
-screws for earthing
-fixing material
|
|
QUICK

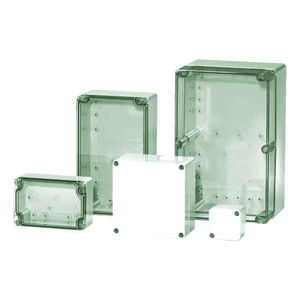

QUICK wall mounting professional cabinets are manufactured of high impact resistance polycarbonate or ABS withstanding harsh industrial and outdoor environments. These cabinets are equipped with quick screw covers. Transparent cover options allow easy viewing of installed equipment and indicators.
Dimensions range from 300*200*170 mm to 600*400*270 mm.
PC: IP 66/67; IK 08; NEMA Type 1, 4, 4X, 12 and 13; UL 94-5V; UL 508
ABS: IP 66/67; IK 08; NEMA Type 1, 4, 4X, 12 and 13; UL 94-HB
|
|
HI-BOX's Wall mounting enclosures are manufacured by HI-resistance polycarbonate, polyester, and ABS. These wall mounting enclosures are suitable for fire-fighting and environment facilities. (good for outdoor) There are two kinds of enclosures: one is hinge type. The other one is screw cover type. We provide working for hole on enclosure by request. Also, we serve for supplying HI quality products with wide color tone and various colors in accordance with your requirement.The dimension of HIBOX's NICE BOX is from 100x130x70 mm to 500x700x 250 mm. Also, all of HIBOX's products are waterproof and dust-free. (IP 66~67, NEMA 4X)
Refer to the general catalogue of HIBOX on Direct-Industry or www.dsehibox.com |
|
Features:
- Basic structure of the box by two side aluminium extrusion profiles, steel lid/base covers and plastic brackets, to which are fixed both panels.
- Side profiles include rails for mounting PCB's or other components.
- Front brackets include handles in 5, 6, 7 sizes, with lids that can be customized with corporative colour.
- Lid and base cover can be dismounted independently.
- Ventilation slots are provided on rear part of lid and base covers.
- The four small-profile sizes has four non-slip feet. The three larger sizes are supplied with tilt-feet.
- Resistant to temperatures up to 85ºC (plastic pieces ). |
|
We supply 43 different dimensions of enclosures. We are able to deliver the main dimensions needed but also with some specificities like the inversed dimensions (400x600, 600x800, 800x1000).
Our main advantages are the reversible professional doors, reinforced doors, very wide glande plate for several suppliers of cable glands, polyurethane gasket injected continuously by the most advanced technology.
This range is completed by a full list of accessories : internal door, depth adjustable bracket, roof, supporting pole, a wide range of locking, modular chassis, ... |
|
ATEX

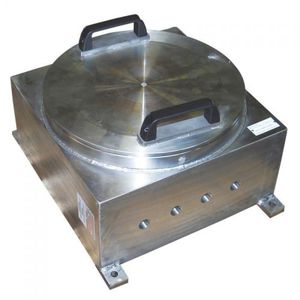

EX enclosures are specially made for use in hazardous environments. They are designed, manufactured and tested to international standards. All certificates, such as ATEX, are issued by the manufacturer under license from a test authority. EX enclosures are made of either aluminium, polycarbonate or polyester.
- Aluminium from 45*50*32 to 600*310*180 mm
- Polycarbonate from 188*188*130 to 558*378*180 mm
- Polyester from 75*80*55 to 405*400*120 mm
AL: (ALX) IP 66; IK 08; NEMA Typ 1, 4, 4X, 6, 12 and 13
PC: (FEX) IP 66; IK 08; NEMA Typ 1, 4, 4X, 6, 12 and 13; UL 94-5V; UL 508
PE: (PEX) IP 66/67; IK 08; NEMA Typ 1, 4, 4X, 6, 12 and 13; UL 94-5V; UL 508
|
|
| ... products without technical information |
| |
Permanent availability of your IT systems is undoubtedly crucial.
This is your company's heartbeat. For this reason, it is important to ensure stable conditions for your complex server and software system architecture. With this in mind, Rittal combines the five key elementary infrastructure components to create an extremely variable, and above all secure system:
Rack, Power, Cooling, Security, Monitoring & Remote Management.
With Rittal, a high level of IT availability is guaranteed. |
|
PKM series professional cabinets are made up of a main unit and tempered glass professional door.
Two product families belong to the PKM system, with different cabinet depths: PKM-400 and PKM-500.
The removable side walls allow the access to the rear cabling while at the same time guaranteeing securety since they can be removed only after the front door has been unlocked.
PKM-400
DEPTH 413 mm
WIDTH 600 mm
Five dimentions availables:
MAGN0749 - h 360 mm - 6U
MAGN0750 - h 493 mm - 9U
MAGN0751 - h 626 mm - 12U
MAGN0752 - h 760 mm - 15U
MAGN0972 - h 1027mm - 21U
PKM-500
DEPTH 513 mm
WIDTH 600 mm
Five dimentions availables:
MAGN0753 - h 360 mm - 6U
MAGN0754 - h 493 mm - 9U
MAGN0755 - h 626 mm - 12U
MAGN0756 - h 760 mm - 15U
MAGN0973 - h 1027 mm - 21U
* * * SAME PRODUCT - DISASSEMBLED * * *
Two product families belong to the PKS system, with different cabinet depths:PKS-400 and PKS-500
PKS-400 (413 mm depth - 600 mm width)
Five dimentions availables:
MAGN0741 - h 360 mm - 6U
MAGN0742 - h 493 mm - 9U
MAGN0743 - h 626 mm - 12U
MAGN0744 - h 760 mm - 15U
MAGN0970 - h 1027 mm - 21U
PKS-500 (513 mm depth - 600 mm width)
Five dimentions availables:
MAGN0745 - h 360 mm - 6U
MAGN0746 - h 493 mm - 9U
MAGN0747 - h 626 mm - 12U
MAGN0748 - h 760 mm - 15U
MAGN0971 - h 1027 mm - 21U |
|
NT Box® 3-part Wall Professional cabinets - For optimal accessibility from 4 sides
High-grade steel housing (light grey RAL 7035) complete with basic
equipment.
-Hinged centre section, 500 mm, with a twoway ock
-Optimum accessibility for fast installation: once the door is open, the side
panels can be drawn forward
-Mounted ready for installation, glass door at front, inc. lock, central swivel
mounting frame,19” mounting angles at front, cable entry apertures in top
and bottom .
-Transportable packaging for single units
-Overall depth of 650 mm, from 6 - 18 adjustable
shelf height units.
The wall-mounted 3-part NT Box was specially
developed for small networks, sub-distributors
and fl oor distributors.
The major practical problem of accessibility is
solved by the fact that the door can be very
quickly removed once opened, allowing the side
panels of the centre section to be slid out forwards.
In addition, the entire centre of the box can
be swung out to one side.
This way, the housing is easily accessible from
all four sides and allows all components to be
installed easily.
To change the doors from left to right-hand
opening, simply lift out the hinge pin and replace
them in the fi xings provided.
|
|
