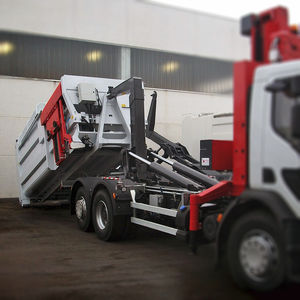

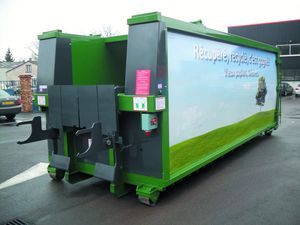

MOBILE WASTE COMPACTORS WITH VOLUME OF :
10 cub. m.
12 cub. m.
15 cub. m.
20 cub. m.
25 cub. m.
Main purpose - collecting, compacting and transporting of paper and polyethylene waste with low cost, no pollution, low noise and simple operation.
Mainly used in - industrial zones, supermarkets, department stores, production halls, packaging manufacturers, distribution centers, residential areas and variety of waste applications
TECHNICAL DATA
Welded and heat treated steel structure
Hydraulic pressure unit for compacting
Monitoring of the container fullness
Electrocontrol
|
|
The number one solution for compacting your EPS (Expandable Polystyrene) minimum 20:1 measured on weight.
Mil-tek EPS Model 900:
• Capacity: 15 kg. per hour
Mil-tek EPS Model 1800:
• Capacity: 80 kg. per hour
|
|
Static waste compactor
• Reduced volume
• Greater transportable weight
• Fewer vehicles on the roadways
• Less diesel burned
• Less pollution
TS40C MODEL
This particularly small compactor has a 40 ton compaction force. It comes with an independent electro-hydraulic control unit which is separate from the compactors and placed on either the left or right side of the compactor. In shopping centres it is also possible to place it on top of the loading lid.
|
|
Static waste compactor
• Reduced volume
• Greater transportable weight
• Fewer vehicles on the roadways
• Less diesel burned
• Less pollution
TS80 MODEL
The 80 ton thrust of this compactor is obtained through the use of two parallel cylinders placed on saddles in order to limit bending.
This type of compactor is typically used for large quantities of industrial rubbish. It has a large. hourly translation capacity. The compaction chamber is available in two sizes. The TS80 offers 2000mm width x 2000 mm length. The TS80L, instead, offers 2000 mm width x 2700 mm length.
This type of compactor is typically used at transfer stations.
|
|
Features:
You can open the two side doors at the same time
Two side doors can be opened at the same time
Designed to compact packaged products such as fertilizer, dyestuff, etc. directly into smaller and unifying sizes
Convenient for loading and saving your transportation cost.
Special customized pallet size according to your requirements
Quick and easy loading process.
|
|
Waste compactors and top-loaded balers
ORWAK 5030 - the classic in-bag compactor - is a small and versatile machine that reduces the waste volume by up to 10:1. Compaction into bags prevents spills and odour.
5030 Marine (with telescopic cylinder) is a special version for ships and off shore installations.
ORWAK 5030-NHD compacts hazardous waste, such as glass and cans/tins containing residual paint, oil and other chemical remains directly into drums for safer and easier disposal.
Top-loaded balers in ORWAK’s assortment are ORWAK 5010-E, 5031/5031-E and 6040-HDC. ORWAK 5031/5031-E alter between producing bales and compacting waste into bags. Model 5031-E has a larger chamber than 5031.
|
|
Top-loaded bin compactors
ORWAK offers a range of bin compactors suitable for compaction into standard two- to four-wheeled plastic/steel bins in the capacity 240-1100 litres.
ORWAK 4100 is constructed for four-wheeled bins and ORWAK 5070 is a flexible combination of a multiple-chamber baler and a bin compactor.
ORWAK’s LE TL and LE FL are based on an ingenious modular system and made from maintenance-free aluminium. Waste can be compacted into standard two-wheeled bins or into plastic bags.
|
|
Pursuing the same aim to offer its Customers the best quality, today Antonelli launches on the market of the ferrous waste salvage a new range of product among which there is the Compactor on wheels suitable to all types of metal waste named Ecological Hydraulic Compactor GA 5000
Realized with the most advanced technologies, the Ecological Hydraulic Compactor GA 5000 represents Antonelli entry into the division of environmental services, bringing its more than fifty years experience in the field of metal-mechanical industry.
|
|
The Miltek X-Press 100, 200 & 300 are waste compactors for mixed waste. The waste is compacted directly into a
plastic bag enabling you to compact even moist waste in a convenient and hygenic way.
|
|
|
|
|
|
RUNI SK120 Screw Compactor
Compact and user-friendly screw compactor for EPS
Save money by reducing waste-collection
Save space and handling costs at the warehouse
Takes up limited space – can even be located under the pallet rack
The RUNI SK120 is the perfect solution for environmentally conscious supermarkets, electronics and appliance retailers, fish companies and other companies who want to minimise their waste costs. It is a small compactor for companies with limited, but continuous, quantities of EPS which can be managed by feeding manually. With dimensions of only 1.75 x 2.95 x 0.50 m (HxLxW), it is easy to find space for the machine in the warehouse or on the production line.
The SK120 compacts EPS in the ratio 50:1. This gives a density of about 300 kg/m³. The compactor is equipped with an easy-to-read ammeter, which makes it very easy to adjust the compaction.
Capacity
The machine compacts about 18-20 kg EPS per hour (about 30 fish boxes with lids).
Energy consumption
Motor 1.5 kW
|
|
|
|
|
|
RUNI SK240 Screw Compactor
The screw compactor for the greater requirements
Save space and handling costs through rapid, efficient waste management
Save energy – no heat required in the process
Profit from selling for reuse
Airtight - suitable for compacting dust
Different configurations for a large number of materials
Heavy Duty Pre-crusher can be fitted for particularly tough and dense materials
The SK240 Screw Compactor compacts various materials, e.g. EPS fish boxes and packaging in the ratio 50:1. This achieves a density of about 270 kg/m³.
The RUNI SK240 can be fitted with either a 45o hopper or a vertical hopper, depending on the requirement. The machine shown here is fitted with a feed hopper designed for manual feeding of fish boxes, etc. Custom solutions are available as required for dust, alu cans, PET bottles etc.
The machine is fitted with hydraulic/electrically-controlled jaws, which allow it to maintain an almost constant compression pressure.
Power consumption
Primary motor 5.5 kW
Hydraulic pump 0.55 kW
Pre-crusher motor 1.1 kW or 5.5 kW
Capacity
This machine can compact approx. 75 kg of EPS per hour (approx. 110 fish boxes with lids) or 3,000 half-litre PET bottles per hour.
|
|
|
|
|
|
RUNI SK370 Screw Compactor
The versatile and hard-working screw compactor for large quantities and industrial use
Larger screw, more power, more capacity
Profit from converting waste to reusable material
Save space and handling costs by processing waste quickly and efficiently
Save energy – no heat required in the process
Different configurations for a large number of materials
Heavy Duty Pre-crusher can be fitted for particularly tough and dense materials
The SK370 Screw Compactor is the big, heavy duty, versatile machine which compacts a large variety of different materials, including difficult jobs where other machines have to give up.
The RUNI SK370 can be fitted with a large range of accessories: various feed hoppers for manual or automatic feeding, conveyor belts, silo systems, a drainage matrix for de-watering and separation, etc.
RUNI also develops and supplies customised solutions as required.
Power consumption
Primary motor 15 kW
Hydraulic pump 0.55 kW
Pre-crusher motor 1.1 kW or 5.5 kW
Capacity
The machine can compact about 200 kg EPS (about 300 fish boxes with lids), 9,000 half-litre PET bottles or 3,000 3 litre metal cans per hour.
|
|
Fully automatic system with silo buffer
The RUNI Silo System has been designed to compact large amounts of material by using a silo as a buffer during peak periods. This saves labour costs and avoids wasted time and manpower, as the self-contained pre-crusher has considerably larger capacity than the compactor.
The pre-crusher and the compactor are separate units in a typical fully automated silo system. The material is fed into a Heavy Duty Pre-crusher with high-capacity, and after this it is blown through a system of pipes to the silo. The silo automatically distributes the material on to one or more compactors at the ideal rate.
Silo systems can also be used when compacting dust, or when limited space means that the feed hopper and compactor must be separate, for example on a separation line, where the pre-crusher can be located in the unloading area, while the compactor and silo are located in a separate room.
|
|
The BaleTainer® from Strautmann Umwelttechnik GmbH is a new and unique machine for compaction of paper, cardboard packagings and emptied PET bottles. With a filling comfort of Presscontainers and the bale result of a 180 t channel baling presses a new generation was developed in the waste management technology.
The large filling enables the input of big cardboards (approx. 130 x 200 cm) or up to 17,500 1,0 l PET bottles. The filling of the presschamber, the output and binding of the bales is all automatic!
The compact design (approx. 200 x 500cm) is provided by an innovative pressconcept. The BaleTainer presses a bale in three slices and not as usual in one piece. Thereby are less pressing forces, energy and space required.
The mill size bales are optimal for direct marketing. 100% truck and container load!
|
|
| ... products without technical information |
| |
Powerful pre-crusher for difficult jobs
Many of our screw compactors are fitted with a pre-crusher for a specific task. In some cases, however, an exceptionally powerful pre-crusher is required. We recommend a RUNI Heavy Duty Pre-crusher, either fitted directly to the compactor or as a self-contained unit:
For particularly dense, massive or tough materials
For materials of varying quality
For large amounts of material and peak periods in connection with a silo system
The RUNI Heavy Duty Pre-crusher is available in different sizes and shapes, depending on the material and the feeding process.
|
|
Ring Type Metal Chip Crusher
When nested turnings include solids, they must be removed from the chip processing system. The least expensive way to accomplish this is with a ring crusher. The ring crusher presses scrap material against a grate and cut down to a size that will fit through the grate. Any solids that cannot be pressed through the grate are sent out through the solids ejection chute. The ring crusher is a good choice for chip processing systems where metering of the materials is possible and solids are present.
|
|
CRUMBERS - AGGLOMENTATORS
Type CONDOR 450
Machine to recycle film of HDPE/LDPE to transform the film from very light and voluminous recyclate into granules heavy and compact capable of being used in an extruder.
|
|
