Panasonic KF-350 and KF-500
Cost-efficient. Clean. Consistent.
The Panasonic KF series power supplies provide simple, efficient and dependable operation. They are designed to maximize welding performance while minimizing spatter. A special idle power saving circuit also reduces power consumption, which ensures lower operating costs.
For most conventional applications the KF-350/500 has an exceptionally low total cycle cost compared to other welding packages.
Each package incorporates a power supply, wire feeder and remote control pendant.
Features & Benefits
- Includes idle "power saving circuit" - reducing power consumption as well as operating costs
- Runs in low noise level
- Trigger latching capability on long welds to reduce operator fatigue
- Excellent welding performance for Argon mixed gases and 100% CO2
|
|
| ... products without technical information |
| |
|
|
|
|
The Arc Machines Model 415 is designed to be a versatile welding automation control and power supply system. The standard Model 415 can be used to weld all alloys that are weldable with the Gas Tungsten Arc Welding process (GTAW, or TIG) using straight polarity DC current. The basic Model 415 features a complete complement of controls, water cooling and gas control necessary to operate all AMI orbital weld heads for in-place field welding tasks ranging from small diameter fusion tube welds to heavy-duty piping and vessels. All welding tasks are performed with the unparalleled level of precision and repeatability that have become a world-wide AMI trademark.
The Arc Machines Model 415 Windows™ based power supply/controller features the absolute latest state-of-the-art technology, from its 400 ampere second-generation solid-state Thompson buck-converter power supply to its color VGA display with touch screen.
The Model 415 is an extremely capable power supply that is very easy to operate. The heart of its flexibility is our emphasis on user-definability. Almost all function ranges and modes can be defined by the user to exactly match the welding head or fixture being used. These features include the ability to add up to 4 optional closed-loop motor servos and 8 optional open-loop motor manipulator controls that make it ideal for work-cell manufacturing environments or for use with custom welding heads having unique functions.
Remote operation of the Model 415 requires a minimum of additional options. Most remote welding modes and controls such as lighting and video controls are included as standard equipment.
|
|
| ... products without technical information |
| |
|
|
|
|
The Arc Machines Model 415 is designed to be a versatile welding automation control and power supply system. The standard Model 415 can be used to weld all alloys that are weldable with the Gas Tungsten Arc Welding process (GTAW, or TIG) using straight polarity DC current. The basic Model 415 features a complete complement of controls, water cooling and gas control necessary to operate all AMI orbital weld heads for in-place field welding tasks ranging from small diameter fusion tube welds to heavy-duty piping and vessels. All welding tasks are performed with the unparalleled level of precision and repeatability that have become a world-wide AMI trademark.
The Arc Machines Model 415 Windows™ based power supply/controller features the absolute latest state-of-the-art technology, from its 400 ampere second-generation solid-state Thompson buck-converter power supply to its color VGA display with touch screen.
The Model 415 is an extremely capable power supply that is very easy to operate. The heart of its flexibility is our emphasis on user-definability. Almost all function ranges and modes can be defined by the user to exactly match the welding head or fixture being used. These features include the ability to add up to 4 optional closed-loop motor servos and 8 optional open-loop motor manipulator controls that make it ideal for work-cell manufacturing environments or for use with custom welding heads having unique functions.
Remote operation of the Model 415 requires a minimum of additional options. Most remote welding modes and controls such as lighting and video controls are included as standard equipment.
|
|
Applications include:
-Automotive sheet metal and components
-High-speed bi-metal contact welding
-Storage Batteries
-Aircraft components (aluminum and titanium)
-Nut resistance spot welding
-Projection welds
-Motor armature fusing
-Markless welding

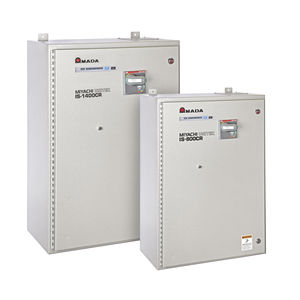

The ISA range of Inverter power supplies provides the highest level of control available today in large scale resistance spot welding. All models are intelligently packaged in “NEMA” style enclosures and are designed to deliver robust performance in the harshest of production environments.
|
|
|
|
|
|
Miyachi Europe offers the high end welding system AWS3 with ISQ 20-10K especially for automotive, tooling and electric/electronic industry requiring high end interfacing and high speed automation. The new product expands the weld current range up to 10kA.
Applications:
Automotive: Lead frame welds, connectors, compacting, pumps, motors, coils
Tooling: Burrs, saw blades large
Electric/Electronic: Components (e.g. capacitors, resistors), fuses, motor switches, relays, contacts, electrical motor fusing, magnet wire welding
Technical Specifications:
max current weld head with short secondary cables 2 x 400mm², length 500mm measured = 10kA
Benefits:
+ Compact design like ISQ20-6
+ High duty cycle
+ High output power (250A)
+ External transformer water cooled
+ Interfacing identical to ISQ20-6
+ Full AWS3 functionality
Dimensions (mm):
Inverter: 216 x 420 x 480 (W x D x H)
Transformer: 284 x 110 x 170 (W x D x H)
Weight (in kg): Inverter: 20kg; Transformer: 16kg
Power requirements: 3 x 400VAC, 50/60 Hz, 20kVA
Legal Approvals: CE compliant
|
|
Inverter Power Supply - IS 120
Inverter Power Unit
Controlled DC Inverter for a wide range of applications - Compact device with terminal and remote transformer
Features
External programming panel
Connection to all mian voltages
Indication of all actual values
Status and error detection in clear text
Applications
Well-suited for automation
Maximum quality requirements
Safety critical environment
Materials with very poor welding properties
Use
Economical and efficient operation
Stable processing and high reproducibility
High grade of weld
Integrated process monitoring
Optimum quality documentation
|
|
Inverter type power supply for spot welding (resistance)
Average rate 1000 - 2000 Hz
18 to 72 KA standard - Parallel to strong currents
QUALITY - PERFORMANCE
- Provision of energy very quickly
- Time welding reduced
- Low projection area
- High quality welding
- Increased speed welding
- Ideally suited for hard coating materials
- Welding of non-ferrous materials (aluminum - copper - brass - etc ...)
- High reproductibility of welding points
- Loop and exhibit no influence on the welding
- Ease of integration transformer welding weight and small size (board)
ECONOMY
- Performance (70%)
- Reduction of energy consumption
- Reduced infrastructure costs
- Need cooling reduced
- Low wear electrodes
CONTROLLER FOR THE RESISTANCE WELDING
|
|
|
Unitek Peco's Dual Pulse Series is a full range of Capacitive Discharge (CD) power supplies for precision resistance welding applications. Their unique "Dual Pulse" function overcomes process variables; part and electrode surface inconsistencies contribute to poor welds. Plating irregularities or contaminants, including oxides and oils, affect weld reliability. The “Dual Pulse” function virtually eliminates these problematic variables.
|
|
|
|
|
|
Advanced Capacitive Discharge Welders (patent pending)
Features:
- Dual pulse function
- Built-in peak current monitor
- Process monitor
- Set test pulse and pulse limits
- Upslope function
- Polarity Programming by pulse
- Four selectable pulse widths
- High resolution 6.5" color display
The new range of Advanced Dual Pulse CD welders were developed to provide a new level of welding performance, process monitoring and user interface.
The 100ADP replaces the 125DP, the 300ADP replaces the 250DP and 250DPS, and the 1000ADP replaces the 500DP, 500HV and 875DP units.
The all new design that includes a proprietary charging unit improves pulse rise times and repetition rates. The monitoring capability with color coordinated display provide at a glance information of weld and process performance.
Unique features such as programmable pulse polarity and uplsope provide easy setup for even nugget formation and electrode wear in series welding, and a means to alleviate weld splash.
The ADP welders are particularly suited for applications such as battery welding.
|
|
