Red Rooster air winches are custom made products. Many constructions are possible, and there are many norms and selection criteria for choosing a winch. In this foreword we discuss several of these to help you in your selection.
Applications:
Hoisting and pulling of various equipment and loads on ships, offshore, shipyards etc.
For manrider winches, please send your enquiry.
Standard airwinches, RRI-series
- Vane type motor
- Standard band brake and automatic brake
- Mechanically disengagable drums
- Very compact design as industrial air motors are partially contained inside the drums
- Rugged but lightweight construction
- Easy installation and removal
- Safety type throttle provides flexible speed control and shuts of automatically when released
- All steel
Optional:
- Silencers
- filter-regulator-lubricator unit
Standard electric winches, RRI-series |
|
SRM series: mooring / anchor industrial winches
This standard range of SRM type mooring/anchor winches is designed for application on JU-rigs, barges and other offshore or marine units. These standard winches can be fitted with several options like free spooling clutches, spooling gears and other options. Also a range of mooring accessories can be offered with these winches like fairleads, sheaves, wire rope as well as load measuring equipment. Winches will be subject to our standard internal test procedure, which can be witnessed by client and/or third party.
|
|

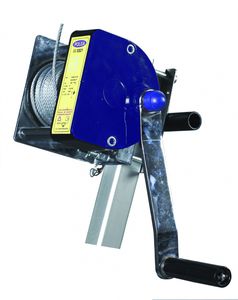

hand rope winch 'TANGO' with many advantages:
— corrosion resistant
— quiet running
— large rope capacity
— independent winding of rope possible
— compact form
— fully enclosed
— self-locking
— folding crank handle
— low weight
— proven security concept
— zinc plated or in stainless steel
— suitable for wall or base mounting |
|
MR series: manriding industrial winches
Designed to the standards issued by the classification societies for personnel lifting operations. The winches are dedicated personnel lifting winches offered with full material trace-ability. They have passed the EC testing for these applications, i.e., both the winches and their technical files are in compliance with the requirements of the EC Machinery Directives.
|
|
TR series: traction industrial winches
Traction winches are mainly built for the purpose. Winches are built to order and can be executed with a self braking worm pinion or planetary gear, depending on the load required. The drive can be either electric, hydraulic or pneumatic. The winches are mainly used for traversing applications where a compact but heavy duty system is required. EMCÉ has supplied systems up to and including 10,000 kg.
Some applications we have supplied for are; opening and closing of hangar doors, moving railcars along a track, deep sea research and moving trolleys on a cable or at ground. Systems can be supplied with so called endless cable or with separate wire spooling unit.
Prices and drawings are available upon request, please let us have your specifications.
|
|
A modern design in combination with practice-proven engineering and high standard of quality gives good service wherever trouble-free, long-lasting operation has to be guaranteed. The maintenance-free fully enclosed spur pinion which is running in an oil-bath enables a long service life. Electronic overload protection from 1000 kg is standard for BETA SILVERLINE.

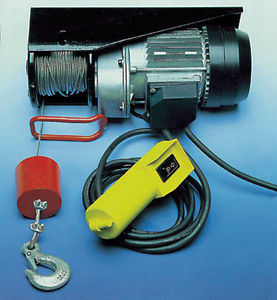

The cost-efficient and powerful electric wire rope winch SW-E BETA SILVERLINE can especially be recommended for easy lifting of loads. |
|
MPW open winch:
Our MPW multi-purpose winch units are built of large series sub-assemblies using modular system components manufactured to the most demanding quality requirements. The variable combination of these components makes it possible to implement the most efficient technical configuration for your application.
|
|

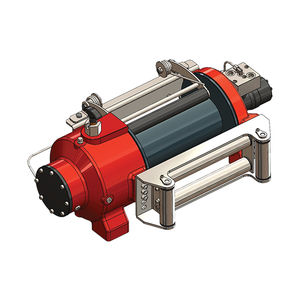

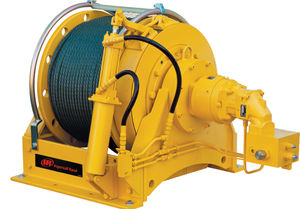

OHW/OHR offshore hydraulic winches
A range of ultra compact lifting and pulling hydraulically driven industrial winches specially designed for offshore applications or in any other hazardous environment where space is limited. The heavy duty planetary reducer and brake are mounted within the drum core, which both saves space and protects from any external damage. Winches designed to meet independent third party requirements like; Lloyds, ABS, DNV, etc. These standard winches can be fi tted with several options and accessories. Further the winches are man riding prepared, adding some options and reducing the W.L.L. means that the winch can be used for man riding applications too. Winches are standard supplied without manufacturer of control valve however with single acting shuttle cock.
|
|
MR 30 FL manriding industrial winches
Designed to the standards issued by the classifi cation societies and meets UK HSE regulations for personnel lifting operations on offshore installations. The winches are dedicated personnel lifting winches offered with Lloyds Register of Shipping (LRS) Design Appraisal Certifi cate and full material traceability. They have passed the EC testing for these applications, i.e., both the winches and their technical files are in compliance with the requirements of the EC Machinery Directives.
The MR 30 FL have been specially designed for personnel lifting applications in which a industrial safety harness or a boatswain´s chair is used on fi xed installations with a total W.L.L. of 150 kgs. The MR 50 FL and MR 60 FL have been designed for use with assemblies using a platform, basket, carrier, etc. with a total W.L.L. of 500 kg for the MR 50 FL and 1000 kg for the MR 60 FL. |
|
OAW/OMR offshore air wire rope hoists
A range of compact lifting and pulling air industrial winches specially designed for offshore applications or in any other hazardous environment where space is limited. The heavy duty planetary gearbox and brake are mounted within the drum core, which both saves space and protects from any external damage. Winches designed to meet independent third party requirements like; Lloyds, ABS, DNV, etc. All winches are fi tted with the same size of heavy duty in house produced pneumatic gear motor enabling reduction of spare parts. These standard winches can be fi tted with several options and accessories. Further two of the winches are man riding prepared, adding some options and reducing the W.L.L. means that the winch can be used for man riding applications too. For Pod Line and Guide Line operations two standard winches are available with tall fl anges and longer drums to accommodate cables up to 2000 meters.
|
|

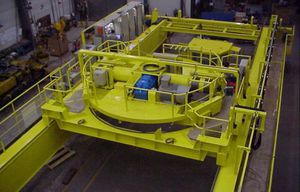

SR series: standard build slew ring industrial winches
The standard build SR type winch provides the basis of the solution to many pulling and lifting winch applications. The winch is constructed with a slew ring in a combination with 3 or more planetary drives and motors. With this range capacities can go up to 75 tonnes lifting capacity.
Although the name of this winch indicates different, these winches are very suitable to fit to your specific winch application. Several options can be offered on these highly versatile winches. Prices and drawings can be obtained upon request.
|
|
| We deliver powered rope industrial winches with electric, pneumatic or hydraulic drive and a load range from 100 kg to 50 t. Adapted to your requirements: - rope capacity - grooved drum - disengager / industrial clutch - devided rope drum - rope guide or rope pressure-pad - rope speed - simple hand operation or complex control systems - additional accessories like limiting switch, overload protection or slack rope switch - also for special application (e.g. for stages and studios) or marine application - better dust-proof and weatherproof protection Kindly let us have your technical details so that we can offer the model that suits best to your requirements. At www.haacon.com / industrial lifting equipment / you will find documentation about our standard rope winches as well as the check list for driven winches for download (.pdf ). |
|
With immediate effect J.D. Neuhaus, the specialist in air driven hoists and industrial cranes, offers a brandnew air powered winch series for a variety of applications.
Six Winch Models are available:
-JDN Lifting Industrial winches Profi Lifter 500/800
-JDN Pulling Winches Profi Puller 1800/3000 as well as
-JDN Lifting Winches Profi Lifter 1200/2000.
Capacities: 500 kg (1,100 lbs) up to 3000 kg (6,600 lbs)
The Winches of the Lifter 500/800 series are predestined for universal and mobile applications due to their size.
Profi Lifter 1200/2000 and Puller 1800/3000 in a compact durable steel structure are for all applications with higher demands.
|
|
Wormgear industrial winches VL250-1500kg
Wormgear winches WW2000-5000kg
Spurgear winches TL125-2000kg
GEBUWINch winches - accessories
GEBUWINch Special winches
|
|
| Dinamic Oil is available to evaluate, design and produce special industrial winches driven hydraulically or electrically, according to our customer's specific requests. The product will be personalized to completely satisfy the technical and dimensional requirements of the application; the use of standard products guarantees an economical solution of high quality, reliability and performance. |
|
Dinamic Oil has developed a complete range of products dedicated to the tower crane industry: slewing gearboxes, lifting industrial winches and carrousel translation drives. Dinamic Oil has proposed a solution to each of these professional crane drives by realizing a dedicated product according to the markets requirements.
|
|
The LM 90 hoist manufacturer is only designed for lifting equipment. It has a carrying capacity of 90 kg. It has an unlimited lifting height.
The LM 250 hoist is only designed for lifting equipment. It has a carrying capacity of 250 kg. It has an unlimited lifting height.
The LM 300 S hoist is only designed for lifting equipment. It has a carrying capacity of 300 kg. It has an unlimited lifting height. |
|

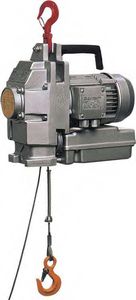

| The e.lift 800 electric hoist manufacturers is designed for lifting persons. It is used on suspended platforms. It is available only in the Three-phase model. It has a carrying capacity of 800 kg. |
|
| The particularity of Dinamic Oil's pulling industrial winches is the design of independent modular blocks (industrial hydraulic motor, negative disc brake and planetary reduction step). This concept guarantees a high reliability and simplicity of use that satisfies the requirements of the end user and facilitates the installation and maintenance work. |
|
| Dinamic Oil is available to evaluate, design and produce special industrial winches driven hydraulically or electrically, according to our customer's specific requests. The product will be personalized to completely satisfy the technical and dimensional requirements of the application; the use of standard products guarantees an economical solution of high quality, reliability and performance. |
|
| The m.lift 400 hand industrial winch is designed for lifting persons. It is used on saddles, single pods and suspended platforms. It has a carrying capacity of 400 kg. |
|
| The e.lift 500 electric hoist manufacturers is designed for lifting persons. It is used on suspended platforms. It is available in Single-phase and Three-phase models. It has a carrying capacity of 500 kg. |
|

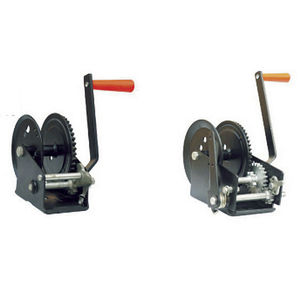

Spurgear industrial winches TL125-2000kg
The GEBUWINch range of hand-driven spur geared winches are robustly built and meet the construction and safety standards in accordance with DIN 15020. The spur geared winches are available in various hoisting capacities. These are between 125 kg and 2000 kg calculated on the first cable layer on the cable drum. The spur geared winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance-free bearings specifications. The winches are available in combined grey/black enamel paint (GR) or provided with zinc-plated surface treatment (EV), which means that rust protection is further improved.
The type designation is as follows:
TL = range of GEBUWINch spur geared winches for hoisting load 125, 300, 500, 1000 or 2000 kg
GR= Painted grey colour
EV= zinc-plated |
|
Salalift II Winch
KT2PW120L
Easy Operation; the Salalift II is manually operated, simply rotate the handle to raise or lower personnel or materials. Gear ratio is 6:1 with an average lifting speed of 4m/sec. (no power source is required)
18m of 6mm galvanized steel cable complete with carrying bag
Lightweight Design; about 16kg depending upon model for ease of use
Quick-Mount System; incorporates a quick-mount bracket which mates with a bracket on all SALA support structures allowing the user to attach/detach device with a detent pin and makes retrofitting easy (no additional hardware needed)
Free-Wheel Mode; an operator activated free wheel mode allows the drum to rotate and cable to pay-out freely as the attached worker descends or moves about (handle remains stationary)
Built-In Fall Protection; The free-wheel mode has a built-in overspeed brake with energy absorbing capacity (similar to self retracting lifelines) which provides secondary fall protection and added security
Overload Professional clutch; a built-in overload clutch automatically slips to prevent severe overloading or damage, it also helps prevent injury to entangled personnel during raising operations
Housing Cover; constructed from a durable medium density polyethylene with a built-in ergonomic carrying handle. This housing material reduces weight and will not dent or corrode like metal housings
Corrosion Resistant; complete with anodized aluminum side plates, zinc plated gears and shafts, stainless steel springs and aluminum drum for superior corrosion resistance
Level Wind; the drum level wind mechanism aids in spooling the cable onto the drum evenly and prevents slack line
Safety Hook; the swiveling self locking snap hook provides secure connection to the load and prevents the cable from twisting for smoother operation. Complete with impact indicator enabling user to visually check to see if device has been impact loaded
Reserve Lifeline System; allows brake to activate and absorb energy if fall occurs at the end of the lifeline travel
Meets or exceeds all industry regulations
Whether raising, lowering or supporting personnel or materials, our confined space rescue and retrieval systems are designed for versatility and ease of use. They serve as true workhorses, providing routine work support and fall protection, and performing as perfectly engineered rescue/retrieval systems during emergencies in areas such as manholes, tanks, bins, vaults, etc.
For utmost confidence, SALA's packaged rescue systems are a perfect rescue/retrieval safety solution. You can go onto the job knowing that your equipment is ready to go; totally compatible and built with SALA quality. |
|
Wormgear industrial winches VL250-1500kg
Wormgear winches WW2000-5000kg
Spurgear winches TL125-2000kg
GEBUWINch winches - accessories
GEBUWINch Special winches
|
|
| GB : The m.lift 300 hand industrial winch is designed for lifting persons, with manual installation of the cable. It is used on single pods and suspended platforms. It has a carrying capacity of 300 kg |
|
Wormgear industrial winches WW2000-5000kg
The GEBUWINch range of hand-driven worm geared winches are robustly built and meet the construction and safety standards in accordance with DIN 15020. The worm geared winches are available in different hoisting capacities. These are between 2000 kg and 5000 kg calculated on the first layer on the cable drum. The worm geared winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance-free professional bearings.
The winches are available in combined grey/black enamel paint (GR) or provided with zinc- plated surface treatment (EV), which means that rust protection is further improved.
This range of winches is standard provided with a secondary drive. This allows you to use a second hoisting speed by transferring the crank.
The cable drum can be provided with a cable groove (GD) for better cable routing and storage.
The winches are available with a free-spool device for the cable drum (FS). This cable drum free-spool device can, if necessary, also be provided with an adjustable friction brake (FSB), for controlled cable unwinding.
The type designation is as follows:
WW = range of GEBUWINch worm geared winches for hoisting load 2000, 3000, 4000 or 5000 kg
GR= painted grey colour
EV= zinc-plated
D= 1 cable compartment
2D= 2 cable compartments
GD= grooved cable drum
FS= provided with cable drum free-spool device
FSB= provided with cable drum free-spool device and adjustable friction brake for controlled cable unwinding |
|

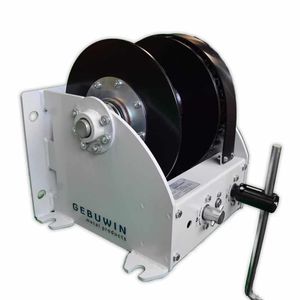

Wormgear industrial winches VL250-1500kg
The GEBUWINch range of hand-driven worm geared winches are robustly built and meet the construction and safety standards in accordance with DIN 15020. The worm geared winches are available in different hoisting capacities. These are between 250 kg and 1500 kg calculated on the first cable layer on the cable drum. The worm geared winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance-free manufacturer of bearings.
The winches are available in combined grey/black enamel paint (GR) or provided with zinc-plated surface treatment (EV), which means that rust protection is further improved.
The cable drum can be provided with a cable groove (GD) for better cable routing and storage.
By dividing the cable drum into a number of cable compartments, the use of 2 cables (D or 2D) as standard is possible on all worm geared winches. Upon request, a number of cables is possible.
The type designation is as follows:
VL = range of GEBUWINch worm geared winches for hoisting load 250, 500, 1000 or 1500 kg
GR= painted grey colour
EV= zinc-plated
D= 1 cable compartment
2D= 2 cable compartments
GD= grooved cable drum |
|
Upon request, all worm geared industrial winches can be equipped with an pneumatic motor drive.
The standard winches then need to be modified.
The air motor is easy to uncouple to allow a number of winches to be operated by 1 air motor. |
|
| The e.lift 350 manufacturer of electric hoist is designed for lifting persons. It is used on single pods and suspended platforms. It is available in Single-phase and Three-phase models. It has a carrying capacity of 350 kg. |
|
