Torque: 5400 Nm - 210000 Nm
Standard features Compact structure Robust layout of planetary gear unit Robust taper roller bearings for drum support and cable pull Integrated disc-brake Easy oil change from front side Easy drum mounting High ...
Torque: 253700, 155800 Nm
Rotational speed: 14 rpm - 36.9 rpm
General requirements Planetary drive Winch drum Dynamic safety brake & elastic couplings Winch drum support / Torque arm Motor support for IEC electric motor
Torque: 5000 Nm - 42000 Nm
The 800 Winch drive is ideally suited for orbit as well as flanged axial piston motors. It has several distinct features including enhanced load capability, resilient design, elevated torque capacity and a rotating housing ...
Torque: 25000 Nm - 450000 Nm
Intended for pipelayers Planetary winch gearboxes of the 700C series are developed from the ‘’Trasmital wheel hub gearboxes’’ for hydraulic drive. The series is composed of 18 finely spaced frame ...
Torque: 8135 Nm - 162696 Nm
Rotational speed: 2800 rpm - 4000 rpm
Power: 27 kW - 168 kW
... ratios of input gear deduction sets which are associated with the merging of the center section planetary gears allowing the reducer, swing and track drive applications be accommodated ...
Torque: 10000 Nm - 85000 Nm
... standards on the market for self-propelled and onboard cranes. Brevini winch drives are the ideal solution for all lifting applications: our planetary gear are especially designed for use as winch ...
Torque: 0 Nm - 60000 Nm
... planetary gear units are intentionally built to suit into the winch drives which is the PWD series for drive applications which are 3 up to 12 tons while the SLW-SCW for applications are more than 12 ...
Rotational speed: 1450 rpm
Power: 264 kW
Gearbox for winch Galbiati Group has recently manufactured a control gear for a converter-winch for the Rourkela steel mill in India. The control gear ...
Torque: 9500 Nm - 325000 Nm
Bosch Rexroth MOBILEX GFT-W winch drives have been designed to install in the winch drum of all types of hoisting gear, such as in railway cranes, mobile cranes, crawler cranes, and container-, ...

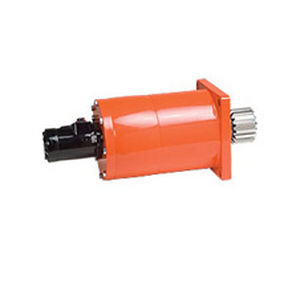

Torque: 237 Nm
Product Features * Heavy duty tapered roller bearings on output shaft * Spring-applied, hydraulically released brake * Standard SAE two-bolt "A" input with 1"-6B spline * High efficiency planetary gearing * Available ...

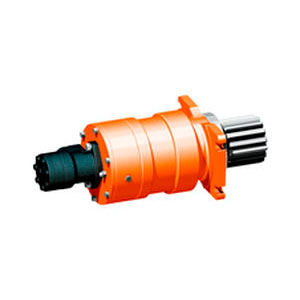

Torque: 1695, 4519 Nm
Product Features Heavy duty tapered roller bearings on output shaft Spring-applied, hydraulically released brake High efficiency planetary gearing Available in pinion up or down models Multiple input and output options

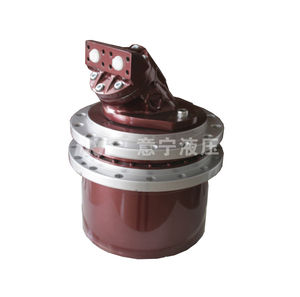

Torque: 0 Nm - 550000 Nm
output torque: from 17kNm to 330kNm ratio: 26-185 Besides the standard ratios, we can make the track and winch drives according to customer's specifications. Product structure: The IGT series hydrostatic drive ...
