CERTI-CRIMP Hand Tools are top-of-the-line, premium, hand-operated tools for
crimping a broad array of terminals, contacts and special wiring devices available
from Tyco Electronics. They are designed to exacting specifications to produce
consistent, high-quality terminations. A potential service life of over 50,000
cycles is possible, depending on operator care.
|
|
|

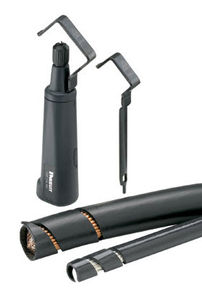

WEICON Cable Strippers: Accurate, fast and safe stripping of all common round, coaxial, multi-sheathed and flexible cables. Flush stripping even in hard-to-reach areas. WEICON Wire Strippers: Automatic wire stripper for all common stranded and solid conductors. Strippers for works on live wires up to 1000 Volt are available. WEICON Multi-purpose Strippers: Professional cable and wire stripping with only one tool. Multi-purpose Strippers for all common stranded and solid conductors are available.
|
|

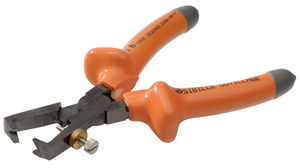

Insulated Stripping plier low voltage
PBT12 16 for cables diameter 10 to 40 mm
PBT20 20 for cables diameter 21 to 52 mm
We also sell stripping tools for medium voltage cables:
Complete set of tools for cable processing, section from 35 to 630 mm²: including tools to strip external sheath, cable insulation, semi conductor. To realize chamfer, cones and slots
|
|
Weidmüller Stripax® and stripax® 16 are stripping and cutting tools for flexible, stranded and solid conductors with PVC insulation.
suitable for cross-sections 0.08 up to 6 mm² (~AWG 28... 10), respectively 6 up to 16 mm² (~AWG 10... 6)
Stripping length adjustable by setting wire stop
Jaws open automatically after stripping
No splaying of individual strands
Special self-adjusting stripping blades avoid damage of the conductor
Adjustable to different insulation cross-sections
Stripax®: Strips multiple conductors, even several flat ribbon conductors simultaneously
Strips double-insulated conductors in two steps, no additional adjustment necessary
Stripax® 16: Cuts flexible, stranded and solid conductors for cross-sections up to 16 mm²
Precise, self-adjusting cable-cutter
Long working life
Improved ergonomic design
|
|
Schleuniger is THE specialist for stripping wires and cables of all kind. The family of CoaxStrip machines represents more than 20 years of experience in multiple layer stripping with unmatched precision. Processing of coaxial cable, triaxial cable or shielded cable with an inner diameter as small as 0.07 mm (0.003'') or AWG 42 up to 15 mm (0.59'') outer diameter.
All CoaxStrip machines are fully programmable and offer a great variety of additional functions such as way-back or PC software Iguana for wire list management. Up to 9 individually programmable stripping steps can be conducted on one wire end.
Schleuniger also offers automatic solutions for cutting & stripping coaxial or shielded cables. Other stripping machines for discrete wire, single conductor wire, flat ribbon cable, multi-core cable and Glass Optical Fiber (GOF) cable are also available from Schleuniger.
|
|
StripCrimp 200 - the most flexible strip-crimp machine (stripper crimper) in its class. The new generation machine is fully programmable and allows high-precision stripping and crimping of side- or rear-feed type terminals for wire sizes from 0.05 to 4 mm2 (AWG 30 - 12). With a press force of 33 kN, the StripCrimp 200 can process a great variety of terminals and wires.
Integrated crimp force monitoring provides for reliable crimp quality assurance and analysis of crimp data. Several additional functionalities such as re-cut, wayback, micro-adjustment and adjustable cycle speed allow state-of-the-art processing.
Next to other strip-crimp machines, Schleuniger also offers crimping presses, crimp applicators and crimp quality assurance devices.
|
|
Product Facts
n No need to strip magnet wire
n Connects up to 3 wires in 1 splice
n Crimp Quality Monitor (CQM)
auto adjusts crimp height and enables 6-sigma process quality
n Height adjusts in .0005 [0.013] increments over .064 range
n Change tooling quickly without major adjustments
|
|
|
|
|
|
Mechanical, thermal and chemical wire stripping processes cause damage to underlying wire that can affect electrical component performance and cause unacceptable conductor failures for aerospace, defense, medical, automotive, and other industrial companies using mission critical electronics. Manufacturers of these devices need to be aware that laser wire stripping technology is available that will guarantee the elimination of these problems. Applying CO2 laser light (10.6 microns wavelength) vaporizes wire insulation while being incapable of affecting the conductive wires. This wavelength of laser light is absorbed by the wire insulation and completely reflected by metal wire conductors. This technology eliminates the need for replacement blades and hazardous chemicals. Using lasers to strip wire yields the highest quality insulation and adhesive removal while delivering the absolute best quality and most precise wire stripping available.
Lasers can remove wire insulation from a wide variety of wire types including single core, multiple leads, twisted pairs, multi-cable, coaxial cable, and many others. Wires with diameters as low as 0.001 inches can be safely stripped. Tolerances for the laser can be held as tight as 0.001 inches. Single strand wires can be stripped in less than 1 second.
Virtually all wire insulation types can be removed using this laser technology. Wires are easily slit using this same CO2 laser. Straight, T-strip, Window slits, as well as, Spiral strips can be programmed to a controlled depth.
Our non-contact process yields the most flexible, highest quality, and most reliable laser stripping and slitting available.
|
|
MOVABLE CABLE STRIPPER
-motive power : 3 hp (1 or 3 phase)
- Voltage : 220 v / 340v
- electric power : 2.2 kw
- Product Hight : 1200 mm
- Product Width : 580 mm
- Product Length : 900 mm
- Product Weight : 450 kg
Applying three different types of mechanism, the machine can strip exterior covering and interior covering of wire in accordance with the shape and size of scrap wire or defective wire.
For more detail, the machine is equipped with two parts being put together to make the stripping process to be effective: thickness selective stripping part and thickness adjustable stripping part. The thickness selective stripping part can cut and strip the interior covering of wire by selecting the thickness of interior wiring inserted into wire with the upper pressure roller of exterior covering cutting part repeatedly opening and closing. The thickness adjustable stripping part can strip the interior wiring by adjusting the cut depth according to the thickness of interior wiring.
|
|
CABLE & WIRE HYDRAULIC CUTTER
- motive powe) : 2 hp (1 or 3 Phases)
- Voltage : 220 v / 340 v
- Electric power : 1.5 kw
- Pressure of oil pressure pump : 240BAR
- Instantaneous pressure : 260BAR
- Capacity : ALP 1 AB-3(2CC)
|
|
General features
- Mark, strip and cut multiple gauge wire/cable in a fully automatic, high speed, computer controlled operation.
- Permanent, high contrast surface marks without damage on all insulations specified in SAE Aerospace Standards.
- Mark without masks...virtually any character, any font, any symbol.
- Strip with zero defects/damage to the wire core.
- Industry standard wire transport.
- Compliant with SAE Aerospace Standards.
|
|
|
|
|
|
PowerStrip 9500 automatic cutting and stripping machine for processing wires up to 12 mm (0.47'') in diameter with pull-off lenghts up to 200 mm (7.87'') on the right wire end (leading end) and 100 mm (3.94'') on the left end (trailing end).
Various models of the PowerStrip 9500 are available - from automatic processing of coaxial cables / shielded cables with rotary incision unit, to special Kevlar cutting head or integrated saw (e.g. for succoform or POF cables). Wire sizes from 0.03 to 25 mm² (AWG 32 - 4) can easily be cut, stripped and slit with unmatched precise Schleuniger stripping quality and high processing speed.
A multiple-blade system on the cutter head allows to use of up to 3 pairs of blades which can easily handle most cutting, stripping and slitting requirements.
The PowerStrip 9500 and all other Schleuniger automatic cut & strip machines can be integrated with various pre- and post processing equipment for prefeeding, marking / inkjet printing, coiling and stacking in an automatic production line. Programming can be either done directly on the PowerStrip 9500 itself or with the PC software Cayman with an easy-to-use graphical editor (WYSIWYG).
|
|
|
|
|
|
Schleuniger UniStrip machines have been proven thousands of times to process wires, cables and a wide variety of special cables. They all operate with extremely fast cycle times and feature a universal blade system that eliminates time consuming change-overs.
Depending on the model, UniStrip machines process wires and cables from 3.2 mm (0.12'') outer diameter up to 9 mm (0.35''). For flat cable processing with the fully programmable UniStrip 2600 or UniStrip 2700 the maximum material width is 11 mm (0.43''), respectively 63 mm (2.48'').
The most flexible machine, the UniStrip 2600 can process many unique applications and wire / cable types, including discrete wire from 0.03 mm2 up to 16 mm2 (AWG 32 - 6), power cords (even multiple conductors with different lengths; all steps processed in one cycle), multi-conductor cables, flat cables and more. Programming the UniStrip 2600 is simple with its cable library (programmable in mm2 and AWG), proven menu-guided software and a graphical user interface.
|
|
|
Units for removing the cable isolation or for removing coatings and lengh measuring devices.
|
|
| ... products without technical information |
| |
Thermal wire stripping with accuracy and quality:
This technique allows for wires insulated with TEFLON, TEFZEL, KAPTON to be stripped without damaging the core.
The insulation is stripped cleanly and quickly, readying the wire for crimping or soldering.
It is also possible to thermal strip low-temperature materials like PVC, Nylon and Polyethylene without the insulation slugs sticking to the stripper or the conductor.
The tip temperature can be adjusted from 0oF (0oC) to 1436oF (788oC).
Ours pliers are ergonomically designed to be pleasant and comfortable to handle. In addition to being size adjustable, their electrodes can be easily replaced in the event of breakage (pliers and power unit are supplied as separate items).
Thanks to the different blade shape, the pliers can be used for different works. .
|
|
|
|
