How to choose this product

A worm gear motor combines a motor and a worm gear in a pre-assembled, ready-to-use package. The gearing consists of a pinion meshed with a helical screw, a worm-and-wheel arrangement. This results in right-angle transmission unless an angle gear is added.

Applications

These motors enjoy very wide industrial use, especially in applications requiring perpendicular input and output shafts, and where the the security of irreversibility is important (the worm can turn the wheel, but not the inverse). Worm gear motors also provide significant reduction ratios.

Technologies

Gear motors can be classified by motor or gearing type. In this case, the reduction system uses a worm gear, usually in a right-angle configuration.

Advantages

- Large reduction ratios
- Security of irreversibility

Disadvantages

- Low output, especially when irreversible

Electric worm gearmotor 21 - 427 Nm, 0.12 - 4.0 kW NORD

For greater flexibility and more applications Die-cast aluminium with smooth surfaces especially...

Electric worm gearmotor 13 - 7 100 Nm, 0.04 - 75 kW | VF/W Series Bonfiglioli

Bonfiglioli worm gears are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm...

Hollow shaft electric worm gearmotor i = 339:1 - 3111:1, 720 - 1 600 Nm | Compacta AG160 Framo Morat

Standard: 3-phase AC...

Permanent magnet DC electric worm gearmotor 63 - 500 W | tendo®-PM series MAYR

tendo-PM Permanent magnet motors and servo motors Extremely quiet running due to...

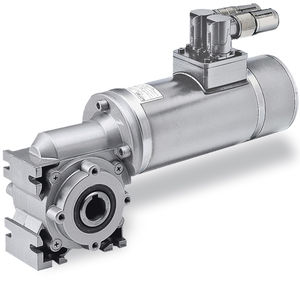

Electric worm gearmotor 24 Nm, i = 80 Lenze SE

Worm gearbox For very simple applications...

Electric worm gearmotor Siemens Industry

With MOTOX we offer both a modular geared...

Electric worm gearmotor 20 - 1 500 Nm, 0.18 - 9 kW | Multibloc LEROY-SOMER

DC electric worm gearmotor ANGST + PFISTER

Helical worm electric gearmotor 43 - 4 000 Nm, 0.12 - 22 kW | S series SEW-EURODRIVE

Simple, practical and discrete Your advantages - Economical operation - Low noise - High permitted overhung loads S series SEW-EURODRIVE helical-worm gear units are helical/helical-worm...

Right angle electric worm gearmotor 20 - 75 in-lbs, 27 - 157 rpm | 746 series BISON

Gearhead Specifications Housing: Precision machined die cast aluminum. Mounting: Base (any angle) Lubrication: Lifetime oil bath,...

Compact electric worm gearmotor i= 104:1, max. 310 Nm | BS series Radicon

Our worm gear units have a compact design with high torque capacity. Series BS can be sold as a gearbox or complete geared motor. These units have proven very reliable in tough applications...

Electric worm spur gearmotor 80 - 350 W WEG Antriebe

Worm-Spur Gear Units Type 45, 48 Voltage 180 V DC, 24...

Electric worm gearmotor Parker Electromechanical Automation

Parker Bayside''s Stealth® Gearmotors represents the first time a brushless servo motor and a helical planetary gearhead...

DC electric worm gearmotor 24 VDC, 5 Nm | Model 3133 Ketterer

Motor drive with through-going hexagon socket. 24V-DC motor with worm gear. Motor...

Right angle AC worm electric gearmotor 0.12 - 11 kW Atlanta Neugart France

Worm Gear Motors Worm Gear Motors - a new combination between the known high-quality standard worm gears with hollow shaft and robust three phase asynchronous motors. The following are typical...

AC induction worm electric gearmotor Sankyo America

Gearmotor mounting is offered on either side of the index or handler, in 90º increments. Some gearmotors have an offset from the reducer centerline...

Electric worm gearmotor 0.09 - 55 kW, 1 900 daNm | Cat. A Rossi

Worm gearmotors Universal mounting design Rigid and precise monolithic casing in cast iron Cylindrical worm shaft with ground and superfinished involute profile (ZI) Load capacity and efficiency...

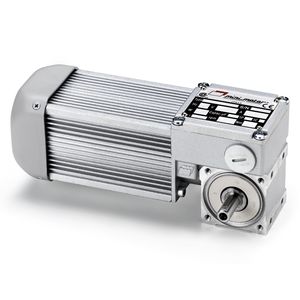

Electric worm gearmotor 3 Nm | BC2000 MINIMOTOR

MOTOR: Single and three phase with 2 poles, totally enclosed with external ventilation. Safety thermal cutout on single phase model....

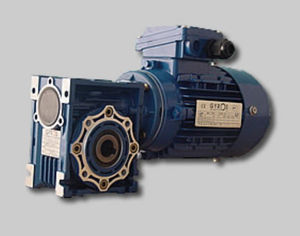

Electric worm gearmotor 0.06 - 9.2 kW | MSF series Gyros Motoreductor

Worm gear speed reducers type SF - MSF are a new generation of products developed by our company. They are characterized by a kinematic motion composed of a casehardened...

DC electric worm gearmotor i = 10.5 - 39, 2 - 19 Nm, 22 A, 12 - 24 V | MVSF 763 L 26 BERNIO ELETTROMECCANICA

Gear motor with worm screw and standard motor Ø 63 12 or 24 Vdc 3000 RPM loadness 120W. Starting corrent 22 A. Driving shaft mounted with on 2 ball bearings Output shaft supported...

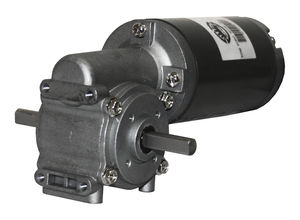

DC electric worm gearmotor 12 VDC , 60 W | SM5946W Smart Motor Devices

SM5946W is brush geared DC motor with worm reducer 1/30. Main parameters of geared DC motor SM5946W 1/30: Rated power: 60 W Rated voltage: 12VDC Rated...

AC electric worm gearmotor Chinabase Machinery (Hangzhou)

The description 1.Made of high-quality aluminum alloy,light in weight and non-rusting. 2.Large in output torque 3.Smooth in runing...

Right angle electric worm gearmotor 260 - 1 350 Nm, 0.18 - 0.55 kW | RT/RT series VARVEL

Leading applications: general purpose, medium and fractional power drives; high reduction ratios. Design: 7 sizes; housings and covers of aluminium die cast up to size 85, of cast iron for size 110; ratios up to i=10000. The input...

Right angle brushless DC worm gearmotor 1/8 HP, RoHs | 22B-3N Series BODINE ELECTRIC COMPANY

Standard Features - Brushless motor for high torque, smaller size, and no maintenance. - Industrial lip type seals on motor and output shafts. - Needle bearings on output shaft for increased radial load capacity and long life. - Permanently lubricated gearing...
