COMPACT HIGH RESOLUTION DIGITAL RADIOSCOPY SYSTEM.
- Real time high resolution digital radioscopy
- Dense material inspection thanks to large energy range
- Horizontal flat sample holder
- Motorized zoom axis
- Single image inspection of parts up to 24 cm long
- Very small footprint
- Ergonomic, fast and easy to use
Our equipements are customed-designed to best meet you needs.
|
|
|
|
|
|
Remote RadEye™ Detachable X-Ray Sensor
The Remote RadEye detachable x-ray sensor is designed to fit into small spaces where a complete imaging camera won’t fit. Available with either a RadEye1, RadEye2 or RadEye HR sensor head, the Remote RadEye module sits at the end of a detachable cable that can reach into tight corners. The camera electronics are mounted in a separate enclosure which can be placed up to one meter away. While designed for portable NDT applications, the Remote RadEye can also be used in fixed installations.
The Remote Sensor head consists of a rugged, light-tight enclosure that is only slightly larger than the sensor itself. All standard versions of the RadEye1 and RadEye2 sensors are available, covering both the 10-50kV and 10-160kV energy ranges. A special high-resolution sensor - the RadEye HR - is also available for use with x-rays up to 90kV. A shielded 1m cable (or a pair of cables for the RadEye2) connects the sensor head to the electronics module, which contains either a high-speed digital frame grabber interface or a microprocessor-controlled USB interface.
|
|
RAYCON is a product inspection system consisting of X-ray system and conveyor.
Typical applications:
• accurate and consistent detection of magnetic and non-magnetic metals, glass, ceramic, stone, bone, PVC, Teflon, rubber, reinforced plastics etc in foods
• identification of defects such as agglomerated, broken or misshapen product
• checks for low fill even in sealed packs (eg missing components)
• identification of air inclusions in sealed packs (eg tubes and cans)
• checks weight of entire product or individual areas/components and integral evaluation of over/underweight
|
|
|
|
|
|
The XR 5 is a digital X-ray camera system of high sensitivity and high resolution in small, light, and ruggedized construction. The image converter screen is a high resolution X-ray converter foil converting X-ray radiation to visible light. The X-ray image is guided via a mirror and a lens to the CCD of a camera. This CCD camera contains a digital image memory, which is pixel-synchronous to the CCD. The camera can be exposed longer than the TV standard (20ms). This way the weak image from the phosphor screen can be accumulated on the CCD and displayed as a high quality X-ray image on a monitor. Due to its intelligent sensor the camera „behaves“ like a film. As soon as there is X-ray radiation the camera starts to expose, stores the image automatically and displays it continuously. The stored image is available on the laptop (or other displays) for further processing or analyses. Contrary to a classical X-ray image intensifier tube with a connected video camera this type of construction has only a slightly lower time resolution, but it is actually lighter, it needs no internal high voltage and it shows excellent performances with rugged applications.
Features:
- Digital system
- Software-controlled by laptop (camera & X-ray-source)
- Internal 12 bit processing
- Very good time resolution
- Software with image data base, image processing and measuring program
- PC-Laptop independent operation
- Prepared for the adaptation to manipulator vehicles40)
- Universal charging set for X-ray camera, source and X-ray generator
- Optional Wireless control and data transmission
|
|
|
|
|
|
The first combined X-ray inspection system that fulfils all Weights and Measures regulations
The X-ray CombiWeigher represents a breakthrough in modern product inspection offering exceptionally high quality standards to meet the needs of the food processing and pharmaceutical industries. It is a complete product inspection combination system which not only performs highly accurate over and underweight checkweighing but also simultaneously inspects your products for foreign bodies – such as glass, metal, stone and high density plastic – using the very latest state-of-the-art X-ray and checkweighing systems.
The innovative and highly versatile XS3 AdvanCheK X-ray CombiWeigher is built to the highest safety standards in the industry and is compliant with IRR 1999. The HACCP compliant stainless steel (V2A) design, with sealing up to IP65, meets strict hygiene standards and requirements, making this system suitable for use in harsh working environments with a regular hygiene cycle.
A time and money saving combination
The effective combination of the two technologies in one system ensures that you will save both time and money in your production processes: the single multilingual 15” colour touchscreen user interface, with multi-level passwords and user profiles, is the central point for set-up and article management for both technologies, helping reduce possible operator errors and ensure faster production changeover thus minimising downtime. In addition, by using one compact system instead of two separate units, the time and costs associated with line integration, operator training and documentation are also vastly reduced.
|
|
|
Designed to meet a wide range of rigorous needs of the electronics, automotive, telecom, medical devices, military and aerospace industries, the versatile Y.Cheetah offers unmatched high-level performance at previously unknown ease of operation. The comprehensive expertise acquired by Feinfocus - the pioneer of microfocus X-ray inspection technology with more than 2500 system installations worldwide - steered the development of the high-end versatile inspection solution, the Y.Cheetah. The result is a high performance X-ray solution that is easily adapted to continuously changing inspection needs. An unmatched manipulation concept supported by smart technological solutions for 1-click operation lead to ultimate system flexibility and highest quality imaging. The Y.Cheetah system is the most efficient solution for advanced yet effortless real-time microfocus inspection ranging from manual single part to automated series applications.
|
|
Portable X-ray systems made by YXLON are compact, low weight, constant potential X-ray systems.
The portable X-ray systems are extremely well designed for rough in-field X-ray inspection, but can equally well be used for applications in exposure rooms and in real-time X-ray cabinet systems. Our portable X-ray systems are optimized for industrial inspection purposes. Due to high frequency technology, the portable X-ray systems produce an extremly stable X-ray output. At the same time, the portable X-ray units are characterized by high ease of use.
|
|
Consistent, precise inspection results
Low inspection cost per part
Prompt equipment availability
Easy to upgrade through modular design
YXLON standard radioscopic X-ray inspection systems are the latest result of listening to customers and fulfilling their needs. The X-ray inspection systems are ideally suited for the inspection of a wide variety of test samples that include light metal die-castings, turbine engine parts, steel components, plastics and ceramics.
The multi-formatted X-ray inspection systems can be easily upgraded to allow digital image enhancement or even automated inspection sequences and image processing/archiving options.
The standard X-ray inspection systems are totally self-contained and can be located anywhere on the factory floor. Furthermore the X-ray inspection systems are designed for the operator's convenience and are easy to use.
|
|
GE Inspection Technologies designs, manufactures and supports stationary testing machines based on ultrasonic and X-ray technology for online and offline applications in the manufacturing processes as well as mobile systems for field applications. In addition, we offer systems based on Eddy Current technology and special systems in the field of metrology.
Our testing machines and systems are designed to perform individual manufacturing tests and / or to fulfill international Nondestructive Testing (NDT) standards for final acceptance test.
We offer a wide range of standard systems for numerous applications – including all former Krautkramer, Seifert and Nutronik products – to suit all specifications. Additionally, we can provide a customized solution for your specific need.
|
|
DYXIM X-ray inspection systems from Sartorius check packed and unpacked bulk products for the widest variety of contamination including glass, metal, stones and other particles within the production process and safely lock out contaminated products.
There are 3 different versions: DYXIM - S (Single Shooter) - D (Double Shooter) and - FB (Conveyor Machine).
– Detection of metal, glass, stones, bones, ceramic and certain plastic components (PVC)
– Completeness control
– Dyxim D series for glass in glass applications
– Control of shape, volume and dimensions
– Weight control and detection of voids within the product
|
|
|
|
|
|
YXLON unipolar constant potential X-ray systems include 2.25 kW and 4.5 kW versions. The 2.25 kW X-ray systems have been designed and configured primarily for use in manual, semi-automated and fully automated radioscopic applications. The high energy and high dose rates of the unipolar 4.5 kW X-ray systems make them excellent candidates not only for radiographic and radioscopic applications but also for dosimetry and scanning methods like computertomography.
The typical application of each X-ray system is tailored towards specific target areas like low density applications, biological specimens (pathology), plastics and rubber compounds (MG103) and aluminum and steel applications like casting X-ray inspection (MG165 and MG226).
The unipolar 40kHz X-ray systems feature a very high output stability, a precise energy setting and an extremely fast change over to any selected new value. Any fluctuation or deviation of set values is controlled and corrected within microseconds. In addition these features reduce inspection times considerably and highly qualify the X-ray systems for inline inspection in fast, completely automated production lines.
|
|
Full case inspection to be installed after the packer on the conveyor for crates, cartons, trays and six packs.
The Case X-ray system is a non-contact inspection for detecting completely packed cartons or crates, missing bottles or cans, inspection for broken bottles, empty carton inspection after the unpacker, and rough fill level inspection of bottles and cans inside the closed cartons.
How it Works: The Case X-ray system scans the cartons with an extremely compact X-ray tube. The system consists of a sensor bridge with height adjustment and a control unit. The sensor bridge is equipped with an Z-ray source and a higly advanced detector. While passing the sensor bridge the carton or crate is scanned by low level X-rays. The evaluation of the sensor signals is performed by the control unit. Any case with a container(s) that fall outside user set limits will be rejected. An audible or optical alarm can also be activated to alert the user to the faulty case.
|
|
|

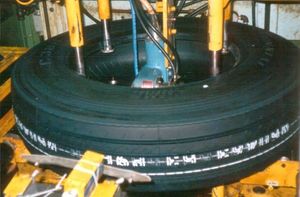

YXLON tire inspection systems can be used for a variety of applications: whether testing prototypes under load or quality ensuring inline mass production, whether investigating passenger cars, truck bus or off the road tires – the high resolution of images produces by YXLON´s non destructive testing systems, enables you to take fast and fact based decisions.
|
|
MAXIpart™ Universal is a highly versatile radioscopic inspection system for spot tests and inspection of small series of a variety of test samples, including light metal castings, steel components, plastics, ceramics and special alloys.
The design of the system allows great flexibility in applications like production, incoming inspection, failure analysis or research and development.
MAXIpart™ Universal is available in either manual or semiautomatic configurations.
|
|
All MAXItire™ systems include manual and semi-automatic modes, with operator-assisted fully automatic inspection available.
Features & Benefits
High quality, single rotation, bead to bead inspection of tires
High throughput
Compact, modular and scalable design according to customer's specification
Excellent image quality from a fully digital imaging chain
Intuitive, easy to use operator interface
High uptime, low maintenance design
Meets ASTM standard F 1035 for discernment capability
|
|
|
|
|
|
RAYEX®
RAYEX® is a highly developed system based on x-ray tomography. (Patents US 5 518 681, US 5 795 531, and CH 685 336 A5). During the extrusion process, RAYEX® measures the wall thickness, eccentricity, diameter, and ovality of multi-layer cables with XLPE and EPR insulation, multi-layer pipes with foam core, composite pipes, and multi-layer hose. RAYEX® systems have been in use for years on various production lines and processes with great success.
-Steam - or steam/nitrogen lines
-Catenary lines
-Vertical lines
-Horizontal MDCV lines ("long die")
-In Silane, Sioplast/Monosil processes
-In foam core pipe extrusion
Important Features:
-Measures thin semi-conductor and insulation layers down to 0.3 mm (.012 in.)
-Simultaneous and uninterrupted scanning in X and Y directions with highest precision
-High scan rate and screen update (every 1...3 s)
-Multi-colored, easy to understand display
-Automatic control, thanks to short measuring intervals
-High resolution and accuracy, thanks to "Micro Focus" beam and UMX x-ray source.
|
|
|
X-ray Imaging for the Non Destructive Testing (NDT) market. More and more factories and research labs, faced with even stricter demands of quality and safety in all types of food and industrial products, are finding that non-conduct, non-destructive X-ray inspection is extremely effective in upgrading quality and safety since it detects tiny product structural flaws and foreign object contaminations - with no product damage whatsoever. Hamamatsu Photonics has a full line of X-ray sources and cameras for X-ray inspection of electronic components, industrial products as well as for a wide range of fields to meet needs in food
|
|
Safeline X-ray Inspection offers complete product inspection, determination of contaminants such as metal, glass, stone, bone and plastic which preserves your brand integrity.
Safeline, a world leader in inline x-ray inspection offer a range of x ray machines for contamination detection, portion control and package integrity inspection for bulk, glass and packaged products in the food and pharmaceutical industries. All systems feature industry-leading detector and image processing technology, simple set up and use, user-friendly intuitive operator interfaces and sealing to IP65 as standard, IP69K optional.
|
|
PROx, A Family of X-Ray Inspection Systems
The Thermo Scientific PROx is the next generation in a long line of powerful and flexible x-ray food protection systems. Due to it’s unique design, it provides industry-leading detection of product defects including a wide range of contaminants and product assembly errors. It was engineered utilizing our 20+ years of experience and comes with many new improvements such as a larger touchscreen, high speed USB port, faster processor and improved performance in harsh environmental conditions.
|
|
The RETINAMATIC 2000 equipments are in use for the detection in real time of foreign contaminants as stones, metals, glasses, plastic, etc. In already stiff products or bulk productions with judging sensibilities that can come to 0.5mm (diameter of sphere) depending on the characteristics of the product (density of the same one).
The area of industrial application is indicated for the sectors of food: conserve, pre-coocking, frozen, 4th range, etc.), pharmaceutical, cosmetic, detergents, aerosols, etc...
This equipments allow to inspect different formats of products presentations: groups inside box, bags and metallized trays, carton, tin, etc., covering a great variety of widths and heights of product configurables.
|
|
Offering contamination detection of foreign objects and assuring product integrity, the InspireX R20 x-ray inspection system for conveyorised products protects your brand from costly product recalls and ensures the product leaves the production line in perfect condition.
Description
InspireX R20 x-ray system is capable of gross and zoned portion control, seal inspection for product freshness, and scanning for damaged or missing items for product quality ensuring your brand integrity. Safeline’s innovative approach to product inspection minimises downtime and reduces false reject rates increasing productivity. Full traceability is offered by the unique user sign in and event log system. An inspection width of 300mm is available suitable for single or multiple lane inspection, in a variety of configurations with a choice of reject mechanisms to suit your individual application.
|
|
Designed to inspect fluids and semi-solids, the InspireX R70 x-ray system is capable of detecting contaminants or variation from established standards before the final packaging, minimising your wastage. The system features automatic calibration, one-touch operation and can be set-up within three minutes.
Description
For the pipeline x-ray inspection of contaminants, the InspireX R70 offers reliability and superior efficiency. Designed to meet the highest hygienic standards - IP69K, it is robust to withstand the harshest wash down environments. Fast and efficient x-ray calibration is incorporated as the x-ray generator and detector retract from the pipe line without the need of manual intervention, saving both time and money. Available in four pipe sizes, the system can inspect product flows up to 12,000 kilos per hour.
|
|
|
The v|tome|x s is an ultra high-resolution CT system, equipped with a special image grabbing and processing software.
|
|
|
The bench|mate is an economically priced, very compact high-resolution X-ray system for a variety of inspection tasks. Its modular setup enables the customer to easily upgrade the system to meet more advanced inspection requirements.
|
|
The ml|inspector is a high-resolution microfocus X-ray system designed for inspecting multilayer boards.
Special features:
Max. inspection area 24“ x 20“
Detail detectability of <2µ
Max. tube voltage of 100kV
Automated calculation of offset and annular ring width
Multiple-axis manipulation
Maintenance-free X-ray tube
Integrated noise suppression system
User-friendly image processing software
Easy and intuitive operation
|
|
|
|
|
|
Detection Technology's X-Scan f-series products have, since 1999, offered the solutions for food, pharmaceutical and industrial NDT inspection needs. The current X-Scan f3 series is already the third generation of evolution in the industrial X-ray inspection arena.
X-Scan f3 series as the imaging subsystem of an X-ray inspection system provides the easy-to-use solutions for all applications, which require fast speed, high sensitivity and high resolution with an inspected object transported on a belt conveyor or similar apparatus.
Detection Technology's X-Scan iHE is an optimized series of products for high energy industrial NDT applications. The X-Scan iHE can provide the solution for very wide range of X-ray source with optimized X-ray absorption efficiency in the high energy range from 160KV to 5 MeV.
Detection Technology's X-Scan iCT product is the optimized solution for industrial, high energy computed tomography applications utilizing linear accelerators as the radiation source.
Detection Technology's X-Scan U-Shaped detectors have specifically been developed for the digital tire inspection of engineering tires, radial tires, car tires and giant tires.
|
|
|
|
|
|
MAXIwheel™ Classic is Jacobsen's most popular wheel inspection solution. The system is designed for manual, semi or fully automatic inspection of cast light alloy wheels. If you're in the market for a robust, rugged, time tested wheel inspection system, Jacobsen's MAXIwheel™ Classic is your solution. The system is designed to provide maximum uptime under the most demanding conditions and provide trouble free operation for years. The system is modular, meaning it can be ordered according to your needs today, and upgraded to your requirements should they change.
System components are designed with reliability and servicability in mind. Because of our modular approach, when parts need to be replaced, they can be replaced quickly, in most cases with basic tools. Quick-connect connectors are used extensively to make part changes quick and painless. Even the heart of the system, the manipulator, can be removed from the cabinet to make major repairs easier.
The following video shows a typical inspection cycle. The manipulator speed has been decreased to show detail. In a typical inspection, a wheel enters the cabinet and is picked up by the manipulator. It is positioned in a preprogrammed position in the x-ray beam and is rotated 370°. The wheel is then moved to the next preprogrammed position. After all parts of the wheel have been examined, the manipulator returns the wheel to the conveyor and the wheel is transported out of the machine
|
|
MAXIknuckle™ ADR is a fully automated x-ray inspection system of different types of knuckles.
Robot takes the part from the tray and presents parts to vision system which
1. Identifies parts
2. Identifies orientation of part
3. Finds large visible defects
4. Finds short shots
5. Verifies serial number after getting serial number on print station
If not prevoisuly rejected (short shots etc.) robot places parts on X-ray rotating table in parts holder. After X-ray inspection, if parts are defective, label is attached to the parts either inside X-ray cabinet or outside on "Reject" station. The complete loading/unloading and visuall as well as x-ray evaluation is executed automatically and no human operator is involved.
Note:
This system is suitable for fully automatic inspection of any complex part. Different parts require design changes to the loading and unloading station.
|
|
|
|
|
|
Jacobsen's MAXIwheel™ Compact is a manually operated system for off-line random inspection as well as 100% inspection of cast light-metal wheels. The system is specially designed for industrial applications with tight space constraints.
The wheel manipulator has 5 motion axes that are driven by high dynamic servo motors. The x-ray imaging system is chosen according to customer specification. The system can be equipped with an image intensifier system, digital flat panel detector or digital CMOS line scan detector, or any combination thereof.
The system can be installed on the deck next to any casting machine or any wheel transport conveyor. The system loads and unloads wheels on the same side.
Applications
Off-line inspection of aluminum wheels up to 27 inches
System Features:
Inspects wheels up to 27 inches
Insensitive to wheel flash
Manual wheel charging without lifting the wheel
Five-motion axes
Short inspection cycles
PC-based flow chart programmable
High dynamic servo motors
Small floor space required
Easy transportation
Ergonomically optimized control desk
|
|
|
The pcba|inspector is a high-resolution microfocus X-ray inspection system designed for inspecting solder joints in board assemblies.
|
|
|
|
