Resolve Optics has developed a comprehensive range of non-browning (radiation resistant) lenses for use in radioactive environments. All our lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rads.
In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.
|
|
The Model 304 Motorised HD Zoom Lens from Resolve Optics Ltd. provides users with true high definition imaging throughout its range of operation.
The Model 304 uniquely delivers true high definition images (720-line progressive and 1080-line interlaced) in a compact 10x zoom lens measuring only 84 x 70 x 70 millimetres. A novel design camera mount cleverly incorporates topside and back focus adjustment so that the lens can easily and quickly be set-up on any 1/3-inch 3-chip high definition camera.
The high performance f/2.2, 4-40mm mechanical tracking zoom on the Model 304 ensures the image stays in focus throughout the zoom travel. As well as offering continuous image focus throughout the zoom tracking range a thread on the front of the 4-40mm HD Zoom enables a standard filter to be simply fitted without clipping or vignetting images. Focus, Zoom and Iris functions on the Model 304 are motorised with Swiss DC motors to provide smooth and precise movements.
|
|
New Macro Lens VI with Macro Switch:
0x to 50x Magnification with macro switch and integrated illumination.
By changing the macro switch, the lens can be used as a macro lens under the range of 0x to 5x and as a zoom lens under 5x to 50x.
- Working Distance (WD) : 0mm to 59mm
- Field of View (H) : 0 to 59mm and 59mm to 6.1mm.
|
|
Product Highlights
These zoom lenses are extremely useful in production processes, such as character recognition, pattern matching, measurement, and inspection.
Features
Focal length 18-108
Image Size 2/3"
F-Stop 2.5
Distortion W:-0.7%/ T:0.1%
|
|

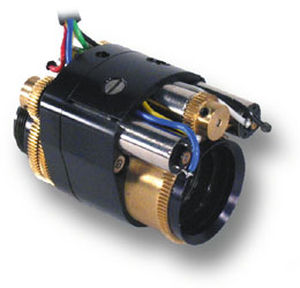

207-001 6-18mm f/2.8 3:1 Motorised Miniature Zoom Lens
Smallest motorised optical zoom lens with focus tracking available in the market place. High resolution images suitable for broadcast and machine vision applications.
|
|
|
Smallest motorised optical zoom lens with focus tracking available in the market place. High resolution images suitable for broadcast and machine vision applications.
|
|
Product Highlights
Features
The 3-Cam Design can minimize a need for grease for the operation of the focusing system and allows for improving an environmental adaptability against temperature change.
The 3-Cam design can reduce the internal reflection and obtain sharper images because of the light shield processing. This feature is not available with the conventional Pole system design.
Specifications
Format Size 1/2"
Focal Length 20-1000mm
Iris Range F3.5-720
Mount C
Horizontal Angle
1/2" 17.83°-0.38° degree
|
|
20x to 160x Zoom Lens for 3D Digital Video Microscope Hirox Auto Calibration Select system (ACS):
Optical zoon with Diaphragm and focus ring.
Contact, Non Contact and variable lighting Adapters are included.
- Working Distance: 44 mm.
- Field of view: from 14,5 to 2,00 mm.
- Depth of field: from 13,3 to 0,25 mm.
|
|
Co Axial MXG-10C Zoom Lens (35x to 7000x) with Automatic Calibration Select system (ACS) for 3D Digital Video Microscope Hirox:
ACS Metal Micro Scope Type.
35x to 7000x Magnification (according to objective)
- Working Distance: 34mm to 3,4 mm (depends on objective)
- Objective Lens not included
|
|
Zoom Lens (50x to 400x) MXG-5040RZ with Automatic Calibration Select system (ACS) for 3D Digital Video Microscope Hirox:
50x to 400x Zoom Lens.
Non Contact Snap on Straight-View Adapter is included (AD-5040HS).
- Working Distance: 54mm
- Field of View : from 6,1 to 0,78 mm.
- Depht of field : from 13,3 to 0,25 mm.
|
|
|
|
|
|
CCTV (closed circuit television) lenses are widely used in vision sensor and machine vision applications. Moritex provides a full line of configurable factory automation lenses and accessory items such as lens adapters and illumination systems. These lenses and accessories can be combined to suit the user’s application providing flexibility and value.
CCTV Lenses for Factory Automation
Moritex CCTV lenses are compact and low mass optical systems. All models come with adjustable focus and iris rings giving the user full control over image focus, brightness and depth of field. Once set, both the focus and the iris can be locked in, via the integrated locking screw, thereby increasing the accuracy and reliability of your machine vision system. As an added feature, magnification and working distances can be tailored to your needs by using an optional Rear Converter Lens or Close-Up Ring. Further capability expansion is possible by adding an optional Polarizing Filter, Glass Lens Cover and Illumination System.
Close-Up Rings
A wide variety of Close-Up Ring Adapters are available for applications requiring higher magnification and reduced working distance. These adapters come in 15 different sizes and are simple to use. Useful in application engineering, a 7-piece Close-Up Ring Kit is available as a set, providing a sampling of different sizes. A newly introduced adjustable-length Close-Up Ring provides an easy way to fine-tune a lens’ magnification and working distance to an application.
|
|
1/3" Varifocal Lens
- 1/3" CS-Mount Lens
- F1.7 Manual / DC Type Auto Iris
- Varifocal 5~50 mm
- Excellent low light performance
- Extremely simple installation and
adjustment
- High quality, compact design
|
|
ML-Z01515DM
High resolution, telecentric, super low magnification motorised 10:1 zoom lens.
Magnification range of 0.15X to 1.5X at a WD of 219mm.
ML-Z0220D
High resolution, telecentric, low magnification 10:1 zoom lens.
Magnification range of 0.2X to 2.0X at a WD of 173mm.
Available with integrated coaxial episcopic illumination.highly automated manufacturing equipment. Applications include visual inspection, alignment and character recognition
|
|
| ... products without technical information |
| |
Resolve Optics has developed a comprehensive range of non-browning (radiation resistant) lenses for use in radioactive environments. All our lenses are manufactured to the highest standards of quality and performance and are designed to withstand a total radiation dose of 108 rads.
In keeping with Resolve Optics tradition of designing unique lenses we are able to provide NB lenses to meet your exact specification. If you can not find a lens, within our standard range that meets your requirements, please contact us to discuss the possibility of developing a lens for you.
|
|
The Model 304 Motorised HD Zoom Lens from Resolve Optics Ltd. provides users with true high definition imaging throughout its range of operation.
The Model 304 uniquely delivers true high definition images (720-line progressive and 1080-line interlaced) in a compact 10x zoom lens measuring only 84 x 70 x 70 millimetres. A novel design camera mount cleverly incorporates topside and back focus adjustment so that the lens can easily and quickly be set-up on any 1/3-inch 3-chip high definition camera.
The high performance f/2.2, 4-40mm mechanical tracking zoom on the Model 304 ensures the image stays in focus throughout the zoom travel. As well as offering continuous image focus throughout the zoom tracking range a thread on the front of the 4-40mm HD Zoom enables a standard filter to be simply fitted without clipping or vignetting images. Focus, Zoom and Iris functions on the Model 304 are motorised with Swiss DC motors to provide smooth and precise movements.
|
|
|
Smallest motorised optical zoom lens with focus tracking available in the market place. High resolution images suitable for broadcast and machine vision applications.
|
|
Product Highlights
Features
The 3-Cam Design can minimize a need for grease for the operation of the focusing system and allows for improving an environmental adaptability against temperature change.
The 3-Cam design can reduce the internal reflection and obtain sharper images because of the light shield processing. This feature is not available with the conventional Pole system design.
Specifications
Format Size 1/2"
Focal Length 20-1000mm
Iris Range F3.5-720
Mount C
Horizontal Angle
1/2" 17.83°-0.38° degree
|
|
|
|
|
|
CCTV (closed circuit television) lenses are widely used in vision sensor and machine vision applications. Moritex provides a full line of configurable factory automation lenses and accessory items such as lens adapters and illumination systems. These lenses and accessories can be combined to suit the user’s application providing flexibility and value.
CCTV Lenses for Factory Automation
Moritex CCTV lenses are compact and low mass optical systems. All models come with adjustable focus and iris rings giving the user full control over image focus, brightness and depth of field. Once set, both the focus and the iris can be locked in, via the integrated locking screw, thereby increasing the accuracy and reliability of your machine vision system. As an added feature, magnification and working distances can be tailored to your needs by using an optional Rear Converter Lens or Close-Up Ring. Further capability expansion is possible by adding an optional Polarizing Filter, Glass Lens Cover and Illumination System.
Close-Up Rings
A wide variety of Close-Up Ring Adapters are available for applications requiring higher magnification and reduced working distance. These adapters come in 15 different sizes and are simple to use. Useful in application engineering, a 7-piece Close-Up Ring Kit is available as a set, providing a sampling of different sizes. A newly introduced adjustable-length Close-Up Ring provides an easy way to fine-tune a lens’ magnification and working distance to an application.
|
|
1/3" Varifocal Lens
- 1/3" CS-Mount Lens
- F1.7 Manual / DC Type Auto Iris
- Varifocal 5~50 mm
- Excellent low light performance
- Extremely simple installation and
adjustment
- High quality, compact design
|
|
