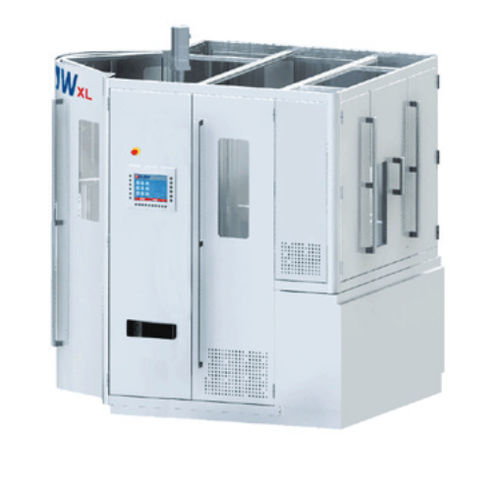

Stretch blow molding machine 1XL

for PETfor PET bottlesmono-cavity

Based on multiple years of experience in the PET sector, 1 BLOW developed a complete range of PET blow-moulding machines from 1000 up to 9000 bottles per hour. Whatever the type of bottles you would like to produce : round, square, oval, asymmetrical, for Hot Filling, with neck orientation (using standard preforms), 1 BLOW has the technical answer to your specific need. This 1-cavity machine produces bottles up to 12 litres. Options : 1XLO : Oval bottles. 1XLHF : Hot Fill bottles. 1XLN : With neck orientation. 1XL Lab : Machine for trials purposes, according to customer’s specifications. INFORMATION 40 Bar pressure adjustable Air 40 bar (1.5 L) 126 Nm3/h Pre-blowing 1-15 Bar Dew point +3°c 8 Bar recovered from 40 Bar blowing Installed power 70 Kw Voltage 3x400v + Gr Power consumption depending on preform / Bottle Water flow 3 m3/h Cooling water 3 Bar
