RS-232 converter TLC422

RS422for automatic controlsisolated

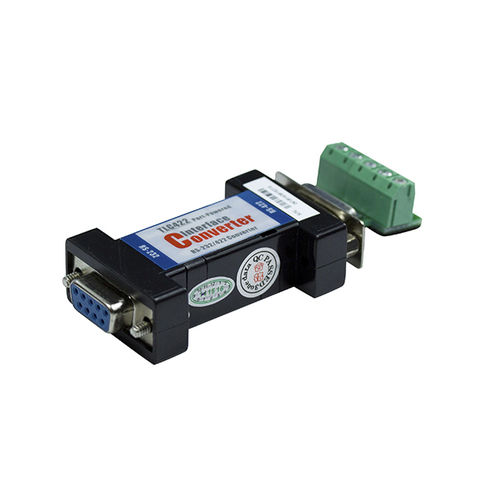

TLC422 Series Passive Pocket RS-232 to RS-422 Interface Converter -Support bidirectional data conversion between 1 RS-232 serial port and 1 RS-422 serial port -Unique port-power technology, no need for external power supply -Low power consumption, equal to that of normal light-emitting diodes in static operation, can be truly called passive -Automatic serial port signal rate detection, support 0~115200bps serial port baud rate -Adopt automatic data flow control technology, which can detect and control the direction of -data transmission -Compact size and easy installation The RS-232 port of TLC422 series could connect to PC directly and obtain power from PC serial port via TXD, RTS and DTR signal line. RS-422 serial port DB9M is equipped with pluggable terminal blocks which is easy and convenient to use and can be widely used in point-to-point communication, industrial distributed system, POS cash register, bank, insurance, security, canteen food selling system, transportation toll system, industrial distributed control, various PLC, data watt-hour meter, gas meter, etc.
