metal sheet grinding machine / CNC
MINI MATIC 3R RECHERCHES & REALISATIONS REMY

Add to MyDirectIndustry favorites

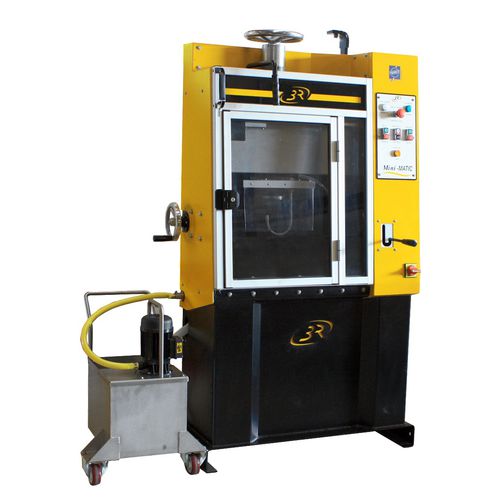

metal sheet grinding machine / CNC metal sheet grinding machine / CNC - MINI MATIC
{{requestButtons}}

Characteristics

  • Applications:

    for metal sheets

  • Control type:

    CNC

Description

Specifications:
Lapidary for grinding cylinders or core samples (optionnal kit)
Diamond grinding system
Continuous watering system on the grinding wheel
Closed water circuit (can be used in open circuit)
Fast clamping of the specimens 16x32, 15x30 and 11x22 (core samples device optionnal)
Stainless steel desludging tank, removable, on wheels, with a 50-litre capacity
Control box with an emergency stop
Manual forward movement. Automatic is optionnal
Pass value : 0 to 0.5 mm
Sheet steel waterproof compact close coupled frame with protection fairing
Entirely waterproof casing made of stainless steel and polycarbonate
Dimensions : L 1.100 mm x D 500 mm x H 1.750 mm
Net wieght : 500 kg approximately
