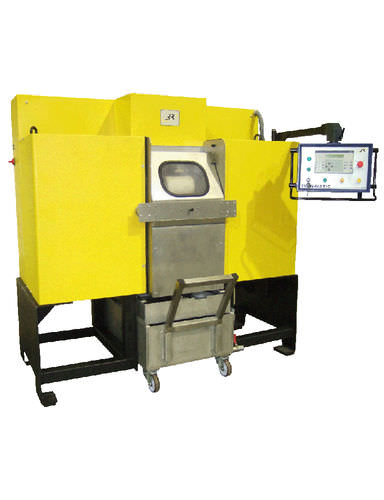

vertical disc grinding machine / for gears / CNC / double-disc
TWIN MATIC 3R RECHERCHES & REALISATIONS REMY

{{requestButtons}}

Characteristics

  • Type:

    vertical disc

  • Applications:

    for gears

  • Control type:

    CNC

  • Other characteristics:

    double-disc

  • Power:

    5.5 kW (7.5 hp)

Description

Specifications:
Lapidary for grinding concrete cylinders samples
2 diamond grinding wheels for grinding SIMULTANEOUSLY the 2 sample faces
Continuous water system on the diamonds of the 2 grinding wheels
Closed water circuit
Stainlessteel desludging tank, removable, with a 100-liter capacity
Easy and fast clamping by hydraulic system
Vertical travel of the sample between the grinding wheels in rotation, machining feasible in descent and in up-take (patented system)
Automatic feed of the grinding wheels which allows an automatic cycle on a preprogrammed number of crossings and a pass depth
Entirely waterproof casing
Net weight of the twin matic specimen grinding machine : 1.900 kg approximately
