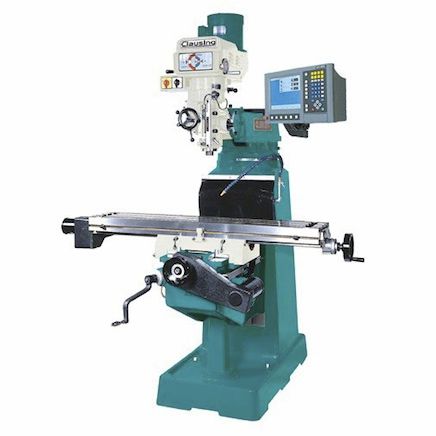

3-axis CNC milling machine VS series

vertical

A wide range of CNC Control options ACU-RITE MILLPWR, Fagor 8055i MC, ANILAM 3000M and ANILAM 5000M Flexible operating modes: manual operation with DRO, semi-automatic operation, and two or three axes full CNC operation Meehanite Castings for superior rigidity and wear resistance Hardened and Ground X, Y, and Knee ways for superior accuracy and wear resistance Turcite B applied to X, Y ways for wear resistance and extend machine life Work areas up to 10" x 54" table size Ground T-Slots provide a reference edge for positioning workpieces or fixtures Large travel range up to 33" X axis travel, 16" Y axis travel, 17.7" knee travel and 5" quill travel Two Range Variable Speed Spindle: 60-500 rpm low range and 550-4300 high range 3 Hp Spindle Motor for exceptional machining power Spindle Brake manually operated with auto power off ABEC 7/CP4 Spindle Bearings provide accuracy and smooth operation for close tolerance machining Hardened and Ground Chrome Plated, Carbon Steel Quill giving the quill wear resistance with close tolerances between the quill and housing One Shot Lubrication maintains proper lubrication to all critical machine components Built in Coolant System w/pump, switch, and flexible coolant nozzle Precision Hardened and Ground Ballscrews for smooth positioning and accuracy
