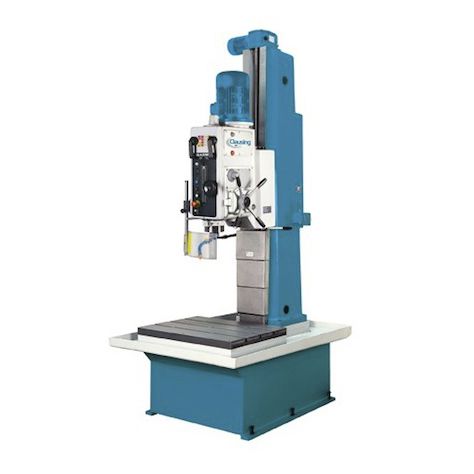

Column type drilling and tapping machine P series

vertical

Drilling capacity in steel: 2.75" (70mm) maximum Drilling capacity in cast iron: 3.14" (80mm) maximum Tapping capacity in steel: 2.51" (64mm) maximum Tapping capacity in cast iron: 2.68" (68mm) maximum Automatic feed reversing system for tapping on “RS” models Adjustable vertical position of head by geared-motor Large worktable with 3 T-slots Hardened and ground high quality steel gears Gear box lubrication by automatic pump Guide ways lubricated by manual pump Speed plate and selecting levers on front of head Coolant tank and pump in machine base Automatic feed and cut-off by electromagnetic clutch Work light Front hand wheel for fine feed work Depth scale and adjustable depth stop Built-in low voltage electrical equipment in column rear Emergency STOP Automatic tool ejector Forward and reverse turn push buttons Drill guard with microswitch
