Electric network analyzer
a. eberle
Network Analyzer for Low-, Medium- and High-Voltage Networks
Application:

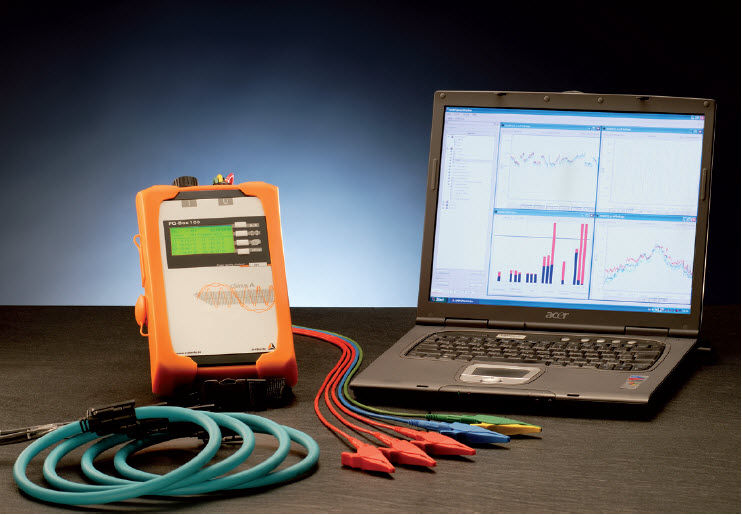

The PQ-100 Box is a high-performance, portable network-analyzer, power meter and transient recorder.
User-friendliness was one of the main objectives of the device development. The PQ-100 Box has been developed for mobile operation (degree of protection IP65); it is applicable for measurements in public networks (CAT IV) as well as for measurements in industrial environment up to 690V measurement voltage. The PQ-Box 100 meets the demands of the IEC 61000-4-30 for a class-A device.
