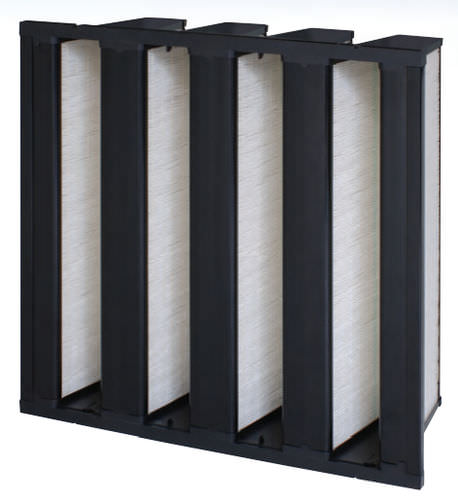

Air filter BioCel® VXL series

panelfor the food industryfor the pharmaceutical industry

Available in filter class E10 - E11 (EN1822) Engineered to meet the exacting requirements of precision manufacturing operations and laboratories Low initial pressure drop: 140 Pa at 3400 m3/h airflow 20 m2 media area Poly styrene and ABS cell sides Fully incinerable Near-HEPA level filtration efficiency with a much lower initial pressure drop than traditional HEPA filters. BioCel VXL filters provide near-HEPA level filtration efficiency with a much lower initial pressure drop than traditional HEPA filters. In addition, the media pack is enclosed in sturdy, light-weight cell sides constructed from HIPS. The V-bank BioCel filter weighs significantly less and is much easier to handle and install when compared to traditional 292 mm-deep, compact and HEPA filters with metal cell sides. Easier handling translates into time and cost savings during installation and removal. BioCel VXL filters offer 99,99% average efficiency on 1,0 μ to 5,0 μ particles, which encompasses the sizes of most bacteria harmful to human health. It is 97,9% efficient on 0,3μ particles. With an initial pressure drop of 140 Pa at an airflow of 3400, this extremely high efficiency filter has less than one-half the resistance of a HEPA filter.
