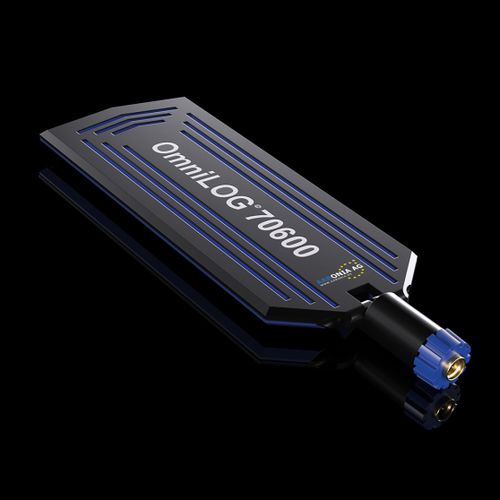

The OmniLOG 70600 Antenna is specially developed as small and compact, broadband omndirectional antenna. Despite its small size it covers an extremely wide frequency range of 680 MHz to 6 GHz. It fits perfectly in addition to the SPECTRAN Handheld Spectrum Analyzer but can also be used with any other Spectrum Analyzer brand.
The frequency range covers following, typical signal sources: GSM, CDMA, LTE, WiFi, ISM, DECT, Bluetooth, 5GHz WLAN, WiMAX.
The Antenna offers a heavy-duty 90° knuckle base with SMA connector. The knuckle base is freely adjustable into each position and fixed by two special ball pressure screws.
Compared to the HyperLOG-Antennas, the OmniLOG antenna offers the possibility for a direct, radial measurement of field strength without the need to move the antenna to the source. This offers the possibility to get a direct field strength reading without any hassle.
The PC Analysis-Software "MCS" supports the OmniLOG 70600 as broadband antenna too and using this software, the OmniLOG antenna can also be used with the SPECTRAN V3 series Spectrum Analyzers.
Specifications:
• Design: Omni-Directional (radial isotropic)
• Polarization: Linear
• Impedance: 50 Ohms
• Avg VSWR: 2.5
• Avg Gain (dBi): 3.5
• RF-connection: SMA (male)
• Temperature range: - 20 °C to +70 °C
• Shock: 40 G at 10 ms
• Thermal Shock: - 20 °C to +70 °C: 10 cycles
• Dimensions (L/W/H): 173 x 63 x 9 mm
• Weight: 54 g
