19" rack DC/DC converter PFC 4K5-3U19 series

industrialruggedmodular

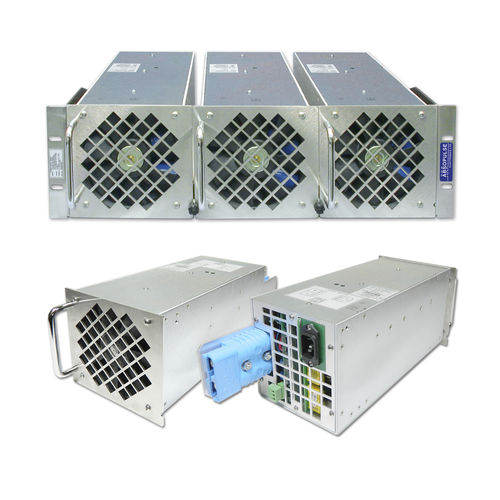

ABSOPULSE Electronics’ PFC 4K5-3U19 Series modular, rack-mount AC-DC power supply system with PFC input delivers 4500W or 3000W with N+1 redundancy. This system is built with three heavy-duty 1500W PFC 1K5 power supply modules assembled on a 3U x 19” rack-mount cradle (the CR 3U-3). The cradle is constructed with high-grade stainless steel and mechanical features that allow for easy insertion of the 5 x 5 x 12” PFC 1K5 units. The modules are hot-pluggable, which contributes to seamless servicing of the system in the field. Key Specifications •Delivers up to 4500W per 19″ Rack •Three 1500W modules on 3U x 19″ stainless steel cradle/shelf •No motherboard – cost-effective design •Modules are hot-replaceable •N+1 redundancy •Input: 95-264Vac (Universal) 47… 63Hz, input current: 18Arms max. •Output: 24V, 48V, 54V, 110V, 125Vdc or custom •80% efficiency at full load •Full electronic protection •Cradle: CR 3U/19-3: 3U x 19” x 12.4″ •Module: 127 x 127 x 460mm (5” x 5” x 18.1”) •Typical environments: power utilities, industrial control, telecom.
