DC/AC inverter for industrial applications CSI 500-2XD3 series

off-gridpure sine wavehigh-frequency

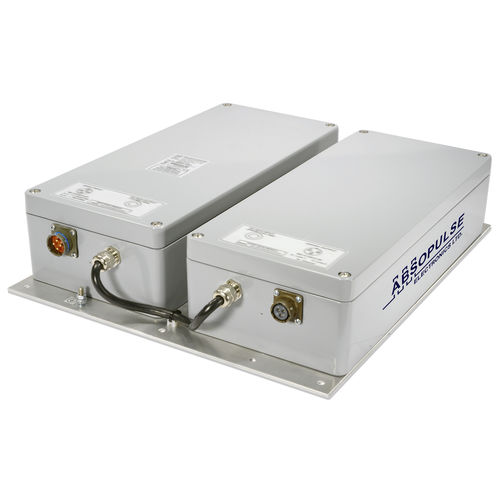

The rugged, industrial quality DC-AC inverters utilize field proven, microprocessor controlled high frequency PWM technology to generate the required output power, with pure sign wave output voltage. The units are packaged in two waterproof, rugged, die cast aluminum IP66 enclosures, mounted on a baseplate. The input and output are via sealed cable glands, circular connectors or custom connections. The internal boards are ruggedized and conformal coated for increased immunity to high levels of shock and vibration. Cooling is by internal conduction to the walls of the IP66 enclosure and by baseplate to an external chassis or cabinet wall, with additional convection via the outside surface. The DC-DC input stage boosts the input voltage to a higher DC voltage, which feeds the DC-AC inverter to generate the required AC output. The high frequency conversion enables a compact construction, low weight and high efficiency. The input and output are filtered for low noise. Full electronic protection, low component count, large design headroom, and the use of components with established reliability contribute to a high MTBF. The units are manufactured at our plant under strict quality control. Customized versions are available. This design is suitable for transportation, mining, marine, oil rig, military and other severe environments.
