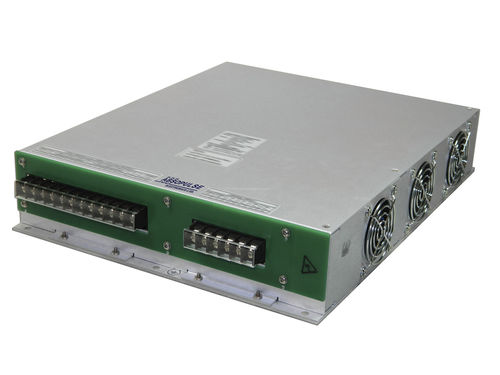

Pure sine wave DC/AC inverter CTP 1000-F7W series

high-frequencythree-phasePWM

This rugged industrial quality DC-AC inverter uses field-proven, microprocessor controlled high frequency PWM technology to generate the required output power with 3-phase sine wave output voltage. The use of high frequency conversion enables a compact construction, low weight and high efficiency. The input and output are filtered for low noise. Cooling is by high quality built-in fans and by additional conduction via the baseplate. The fans draw air into the unit. All heat generating components are installed on aluminum heatsink blocks which are thermally connected to the base plate. This also provides exceptional mechanical ruggedness. Conformal coating provides protection against humidity and airborne contaminants. Full electronic protection, generous design headroom and the exclusive use of components with established reliability also contribute to high MTBF. The unit is manufactured at our plant under strict quality control.
