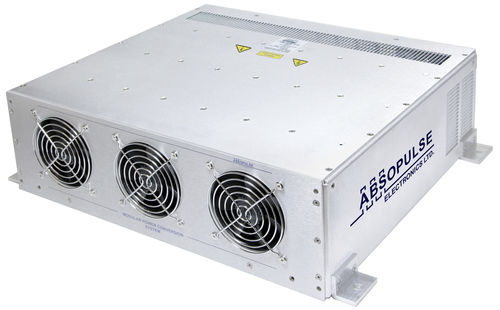

Sine wave DC/AC inverter CSH 2K-3U7 series

PWMfor industrial applicationsfor heavy-duty applications

ABSOPULSE Electronics' rugged, industrial quality DC-AC sine wave inverter was developed for operation on cranes and in similar heavy duty applications that require high input overvoltage capability. The 250Vdc nominal input design is capable of operating reliably up to 600Vdc input without any damage. This ABSOPULSE inverter offers a significant advantage over other inverters with standard industrial input ranges, which typically fail under these operating conditions. Microprocessor controlled high frequency PWM technology enables compact construction, low weight and high efficiency. Key Specifications •2kVA sinusoidal output voltage; •Handles up to 600Vdc input voltage; •Nominal input: 250Vdc (230V to 600Vdc range); •Output: 115Vac continuous at 60Hz or 400Hz or 230Vac continuous at 50Hz; •Full electronic protection; •Efficiency at full load 85% minimum; •Complies with C22.2 No. 107.1 – 01, UL 458, EN60950-1 and equivalent; •Cooling by three high-quality built in fans – filters available for protection from dust; •0°C to +50°C operating temperature range at full specification (no de-rating)
