Ni-MH battery charger / fixed / for railway applications
1000W Absopulse Electronics Ltd.


  • Battery type:


  • Configuration:


  • Applications:

    for railway applications

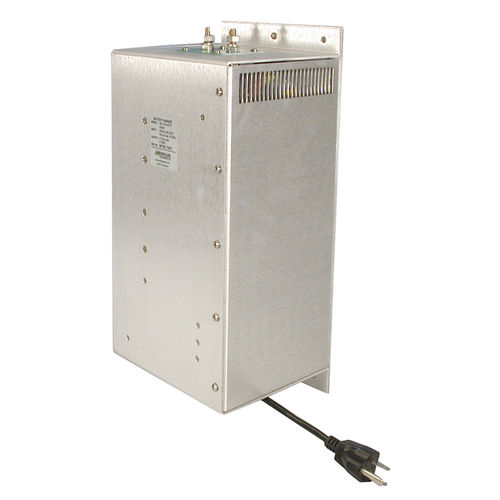

1000W, On-Board Battery Charger for Vehicles in Cold Climates (different power levels available).

The BCP 1K-27CB Series rugged industrial quality battery charger specifically designed to assist vehicle warm-up during extremely cold weather. Typically permanently installed on a vehicle, this charger is activated on days when the ambient temperature drops below 0ºC.

This charger accepts 115Vac nominal input (100V - 132Vac range) and delivers 27.5Vdc at 36A for float charging the 24Vdc battery - custom input and output options are available. It maintains the battery condition, and provides sufficient power to keep essential on-board equipment & heater fans operational during the vehicle warm-up period.

The BCP 1K-27CB operates at full specification over a -40°C to +50°C cold plate temperature range Cooling is by conduction via baseplate to chassis wall and by additional convection. It is fully ruggedized and conformal coated and meets SAE International J1455 and IEC61373 Cat 1 A&B shock and vibration standards (min). The enclosure measures 5.5” x 6.5” x 14” and weighs approximately 10 pounds.

This charger is based on field proven technology with a track record in railway, trucking and aviation. The absence of fans, large design headroom, and the use of components with established reliability result in a high MTBF. Protection includes inrush current limiting, over-voltage protection, short circuit protection, and self-resetting thermostat for thermal protection.

Absopulse designs and manufactures an extensive range of heavy-duty battery chargers – please visit company website for more information.
