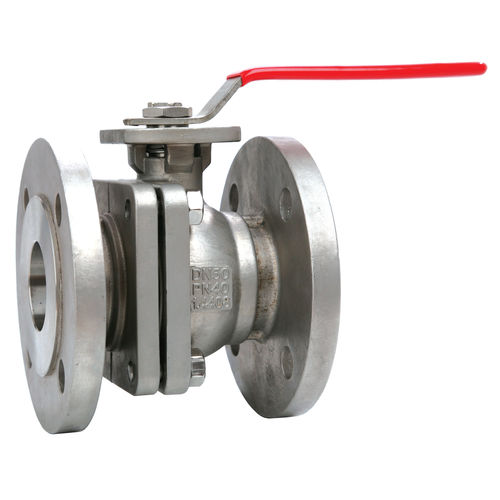

2-piece valve ballleverflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- flange, 2-piece, stainless steel
- Applications
- for industrial applications
- Other characteristics
- ISO, DIN, full-flow, anti-static
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
10 bar, 16 bar, 40 bar
(145 psi, 232.1 psi, 580.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 200 °C
(392 °F)
Description
AISI-316 · DIN PN16/40 flanges
ISO-5211 mounting pad to mount directly actuators
Characteristics
•General industry application.
•Blow-out proof stem design.
•Double system of sealing in the stem, for PTFE joints and Viton O-ring.
•Autoadjustable disc spring.
•ISO-5211 mounting pad with double norm.
•Stem according to DIN-3337.
•Anti-static system.
